400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
Specifications
Brand Name :
Global Power
Model Number :
GP P160
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Prime Power (kw/kva) :
160 / 200
Standby Power (kw/kva) :
176 / 220
Cooling system :
Water-cooled
Rated Voltage (V) :
400 / 230
Engine Speed (r/min) :
1500
Rated Current (A) :
288
Speed Governing :
Electronic
Type :
Trailer
Description

400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config

Trailer Feature:

  1. Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
  2. Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
  3. Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP160 (three phase)

Prime Power (kw/kva)

160/200

Standby Power (kw/kva)

176/220

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

288

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Open Type-Dimension (L*W*H) (mm)

2377*780*1350

Open Type-Weight (kg)

1465

Soundproof Type- Dimension (L*W*H) (mm)

3200*1300*2000

Soundproof Type-Weight (kg)

3865

Fuel Tank Capacity(L)

350

Continuous Running Time(hr.)

8


Engine Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
    400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
  7. Easy installation and ready access for routine maintenance

Engine Technical data:
Model 1106A-70TAG4

Engine brand

Perkins

Output Power (kw)

191

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

16:1

Displacement (L)

7

Bore X Stroke (mm)

105*135

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

21

Fuel Consump. (g/kw·h)

204

Oil Capacity (L)

16.5


Alternator Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid.

Alternator Technical data
Model UCI274H

Alternator brand

Stamford

Rated Power (kw)

160

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Voltage accuracy

≤±1%

Protection Grade

IP23

Telephone Influence Factor

TIF＜50

Harmonic Coefficient

THF＜2%

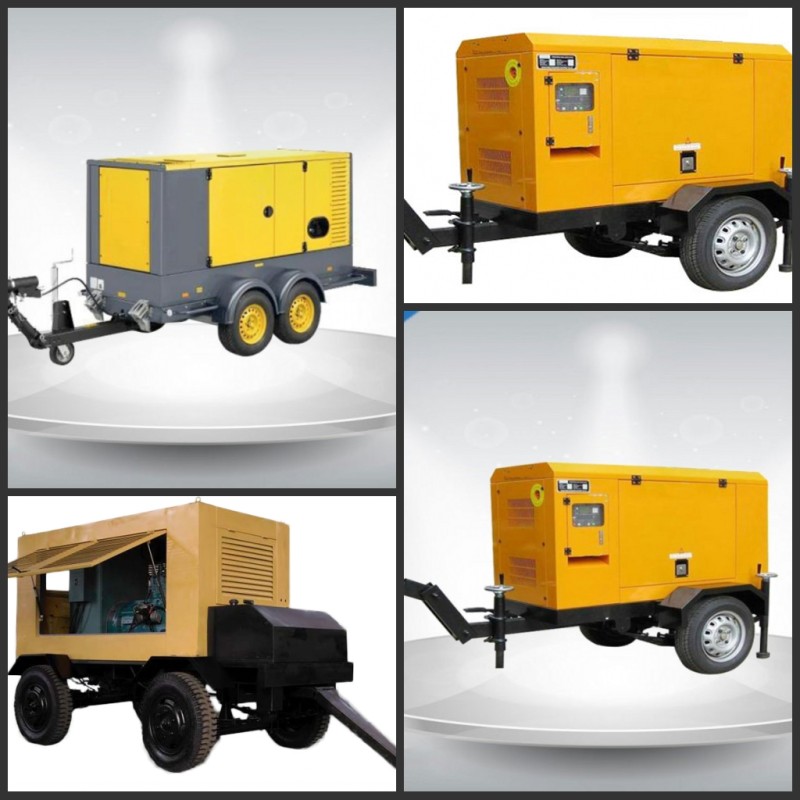

Our Picture :
400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config

Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
