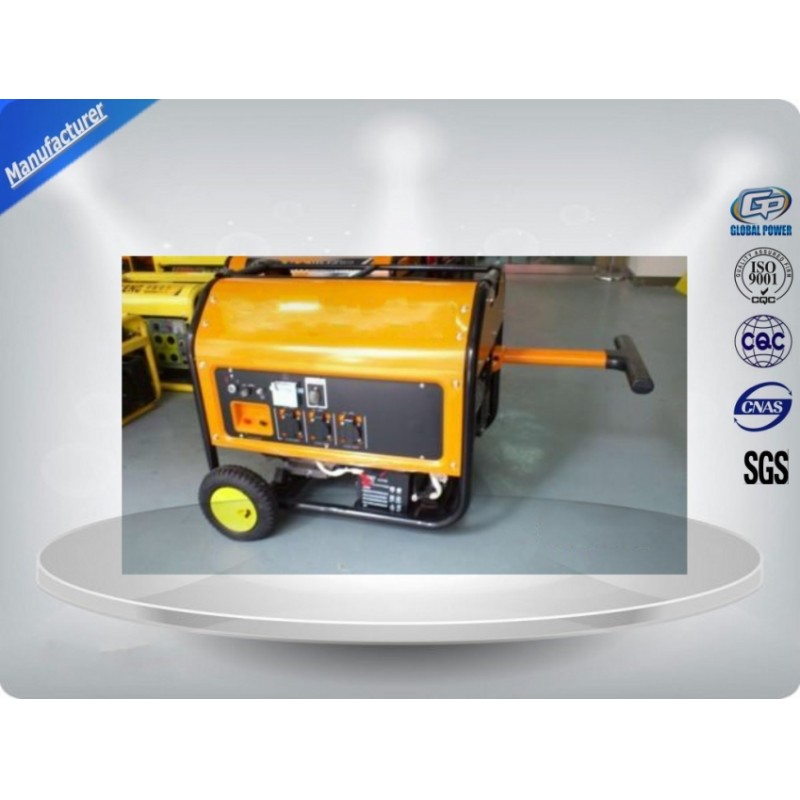

5kva Digital Gasoline Residential Diesel Generators Single Phase Portable ISO9001
5kva Digital Gasoline Residential Diesel Generators Single Phase Portable ISO9001
5kva Digital Gasoline Residential Diesel Generators Single Phase Portable ISO9001
5kva Digital Gasoline Residential Diesel Generators Single Phase Portable ISO9001
Specifications
Brand Name :
Global Power
Model Number :
GPD6500X
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
Negociable
Payment Terms :
T/T or LC
Supply Ability :
2,000sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF,CIF,EXW…
Prime Power (kva) :
4.5 / 5
Standby Power (kw/kva) :
5 / 5.5
Voltage(V) :
220
Rated Voltage (V) :
400/230
Configuration :
Single phase, three loops
Package :
Plastic Foam Packing or Plywood Case
Noise level（7m）dB(A) :
97
Color :
Customized
Description

Silent / Open Diesel Generator Set 1.7KVA - 2.6KVA Portable Genset 50HZ / 60HZ


Features and Benefits


1. Powerful Lees four-stroke engine
Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.
2. Reliable and stable output
Applied the improved AVR (automatic voltage regulator), which not only
can smooth the output but also provide reasonable protection against
the overload of the whole set
3. Competitive economic operation
The high efficiency combustion system is designed to reduce the
consumption and operation cost
4. Qualified breaker, electronic elements
Ensuring high quality of generator, protect the generator from being overload
5. Compact design
Provides unparalleled power to weight ratio
6. Large steel fuel tank
For durability and extended running time

Technical Specifications:

Frequency(Hz)

50

60

Rated Output(kVA)

4.5

5.0

Max Output(kVA)

5.0

5.5

Voltage(V)

220

220

Current(A)

19.9

23

Configuration

Single phase, three loops

Factor

1.0

Insulation Class

B

Pole

2

Phase

1

Excitation Mode

Self-excitation & constant voltage(AVR)

Panel type

General panel

output

socket

2pc single phase socket

Connection Pole

Without

DC12V Output

Connection pole output

Dimension ((L *W*H)

750*500*660

Dry weight(kg)

100

Working assorting weight (Kg)

105

Noise level(7m)dB(A)

97

Frame type

Open frame


Engine

Model

GP 186FA

Engine type

Vertical,4 stroke, Air cooled, direct injection

Displacement(mL)

418

Cylinder NO.-bore×stroke (mm)

1-86×72

Rated power(kW)

5.7

6.3

Rated rotation speed(r/min)

3000

3600

Fuel consumption ( g/kW.h)

275.1

281.5

Capacity of Fuel Tank (L)

15

Starting System

Electric starter

Compression ratio

19:1

Continuous working hours(hr.)

8


Product superiority:

  1. Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
  2. Low emission contamination
  3. Reliable power and tight compact structure
  4. Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
  5. Easy to install and maintain
  6. Full storage of accessories and more than 4000 service networks worldwide

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

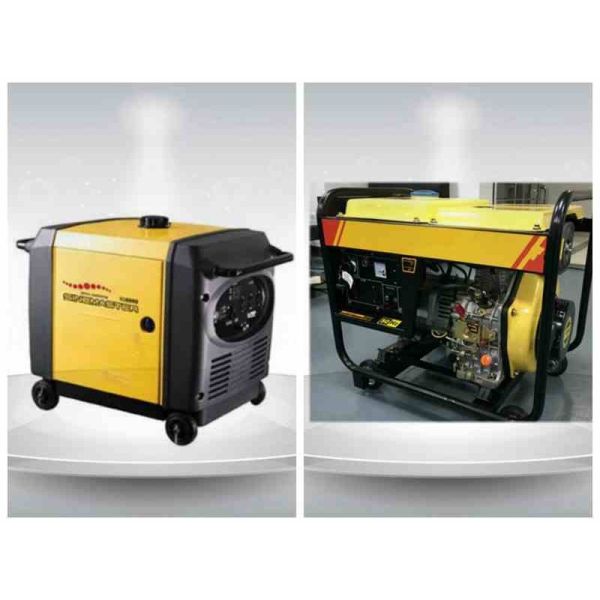

Photos:
5kva Digital Gasoline Residential Diesel Generators Single Phase Portable ISO9001

Our Service:

  • If you are interested in our products we sincerely invite you to take a visit of our factory when you
  • are in China. We can drive to pick you up and visit our factory.
  • Suggest the best choice or referential suggestion based on customers’ information. Answer all
  • questions about the product from customer.
  • Build customers’ profiles, follow-up service, make regular calls on customers.
