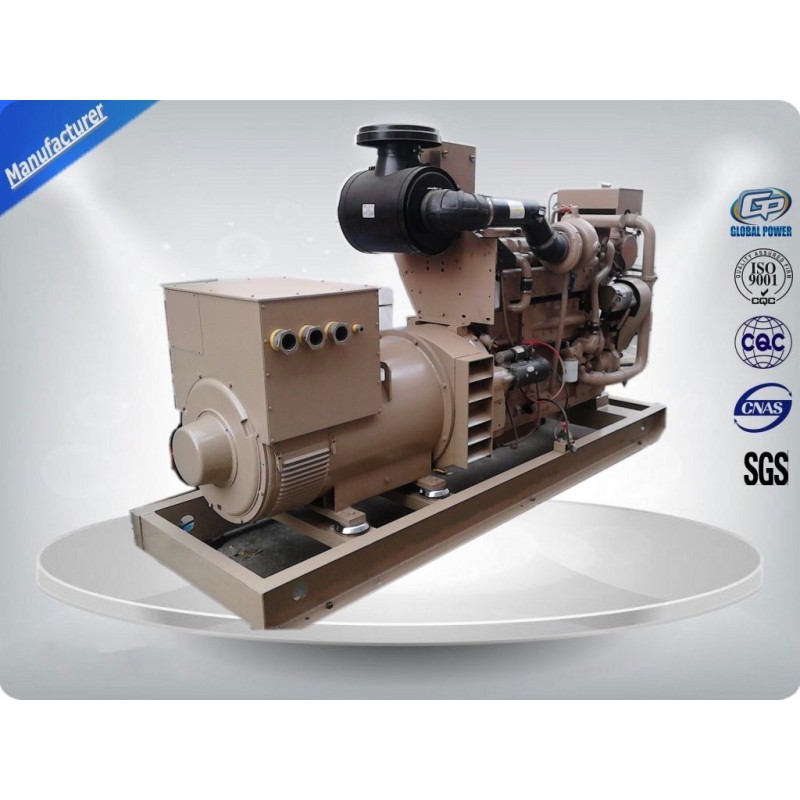

Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control
Specifications
Type: :
Micro-Computer Control Automatic Genset
Cooling System :
Water Cooling
Output Type :
AC Three Phase
Speed & Frequency :
1500prm 50Hz
Conditions of Use :
Land Use
Type of Unit :
Automation Type
Excitation Mode :
Self-Excited
Export Markets :
Southeast Asia, the Middle East,
Stroke :
Four Stroke
Installation Method :
Fixed
Brand Name :
Global Power
Model Number :
CCFJ30J
Certification :
CCS / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negociable
Delivery Time :
30-35 days after receiving the down-payment
Packaging Details :
Plastic Foam or Plywood Case
Description

Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control

Main Feature of Cummins Marine Diesel Generator

• Economical: Cummins Marine Diesel Generator is one of the lowest fuel consumption in the world.
• High reliability and long life span.
• Perfect starting ability: Can start successfully at -10 Degree Centigrade without any accessories.
• Perfect low load condition: The air inlet system choose "HELLO" technical to improve burning performance and reduce fuel consumption.
• Convenient maintenance: simple & reliable structures and L line cylinders provides convenient maintenance and inspection .
• Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

Supply Scope

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..

CUMMINS Marine Genset Model List :
Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control

Specification:

1. Specification of genset
Gensets model CCFJ30J
Rated power 30KW
Rated voltage 400/230V
Rated current 54A
Rated frequency(HZ) 50
Rated speed 1500rpm
Power factor 0.8(lagging)
Dimensions(mm) (L×W×H) 1600*770*1200
Genset weight(kg) 900
2. Specification of diesel engine
Engine brand DCEC Cummins
Engine model 4BT3.9-GM47
Number of Cylinders 4
Cylinder arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged
Rated power 115KW
Rated speed 1500rpm
Starting Method DC24V electrical starting
Speed Governor Electronic
Cooling System By sea water heat exchanger
3. Specification of alternator
Alternator brand Stamford
Alternator model UCM224C/38
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H

Cummins 4BT3.9 Engine Marine Generator Set Easy Operation Micro - Computer Control

Global Power Service:

Our Services

Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
