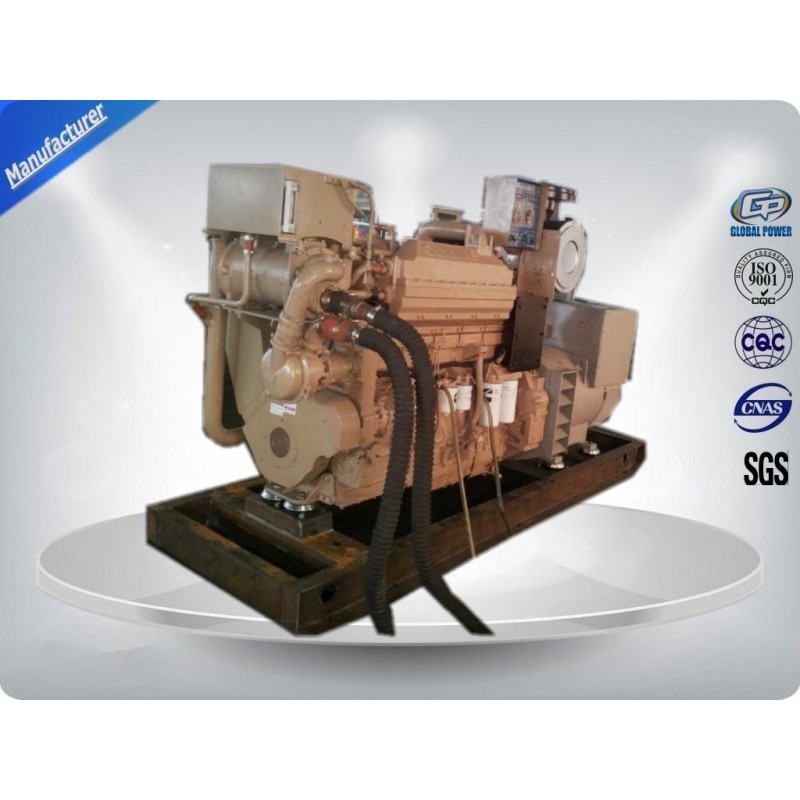

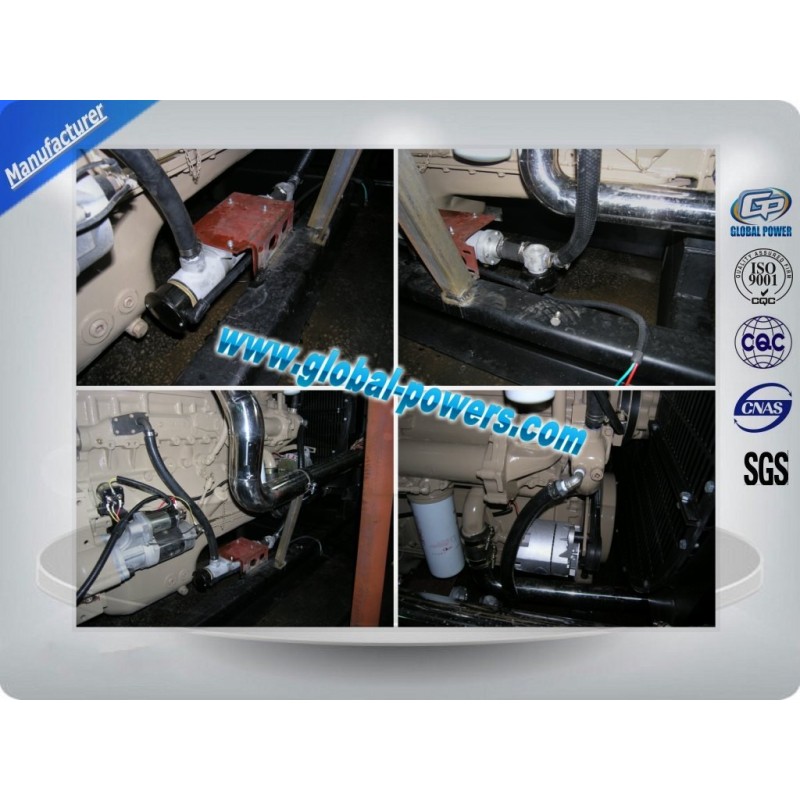

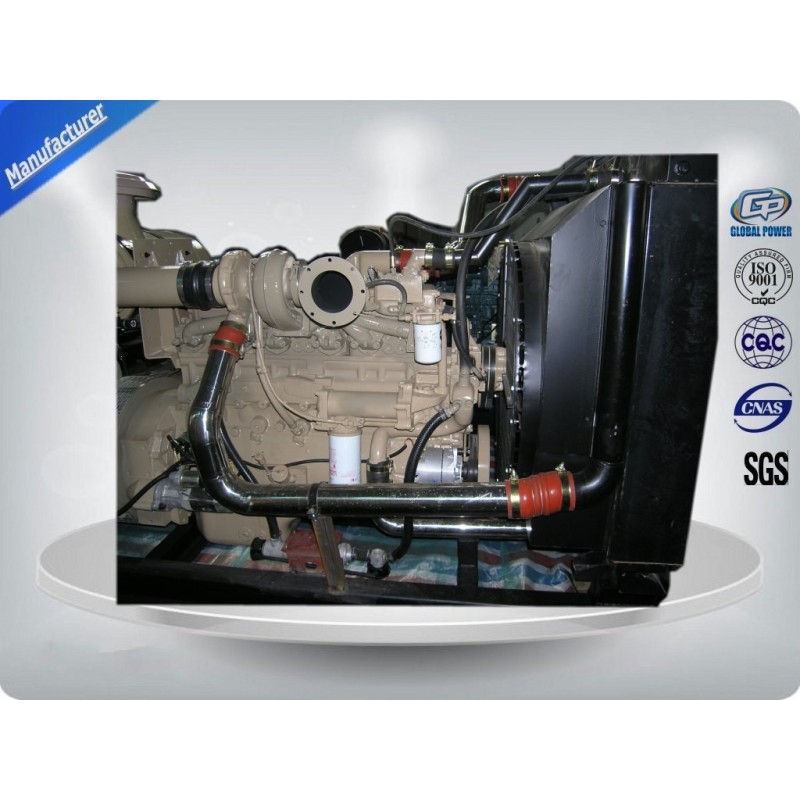

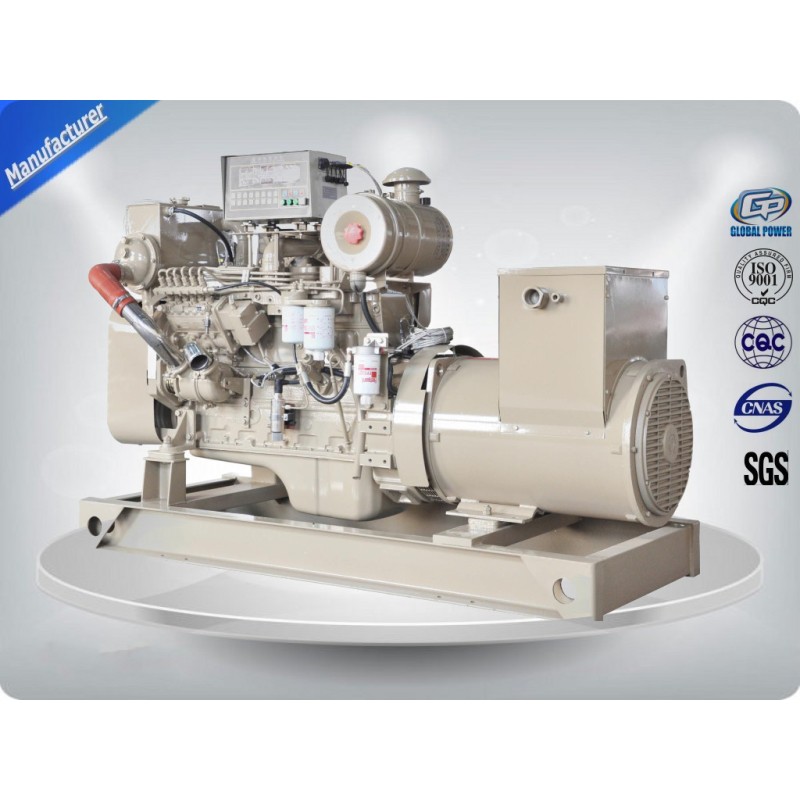

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Specifications
Type: :
Micro-Computer Control Automatic Diesel Generator
Cooling Method :
Water Cooling
Output Type :
AC Three Phase
Speed :
1500prm 50Hz
Conditions of Use :
Land Use
Type of Unit :
Automation Type
Excitation Mode :
Self-Excited
Export Markets :
Southeast Asia, the Middle East,
Stroke :
Four Stroke
Installation Method :
Fixed
Brand Name :
Global Power
Model Number :
CCFJ100J
Certification :
CCS / ISO
Place of Origin :
Jiangsu, China
MOQ :
2 sets
Price :
Negociable
Delivery Time :
30-35 days after receiving the down-payment
Packaging Details :
Plastic Foam or Plywood Case
Description

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement

Main Feature of Cummins Marine Diesel Generator

• Economical: Cummins Marine Diesel Generator is one of the lowest fuel consumption in the world.

• High reliability and long life span.

• Perfect starting ability: Can start successfully at -10 Degree Centigrade without any accessories.

• Perfect low load condition: The air inlet system choose "HELLO" technical to improve burning performance and reduce fuel consumption.

• Convenient maintenance: simple & reliable structures and L line cylinders provides convenient maintenance and inspection .

• Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

CUMMINS Marine Genset Model List :

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement

Specification:

1. Specification of genset
Gensets model CCFJ100J
Rated power 100KW
Rated voltage 400/230V
Rated current 180A
Rated frequency(HZ) 50
Rated speed 1500rpm
Power factor 0.8(lagging)
Dimensions(mm) (L×W×H) 2250*850*1400
Genset weight(kg) 1500
2. Specification of diesel engine
Engine brand DCEC Cummins
Engine model 6CT8.3-GM115
Number of Cylinders 6
Cylinder arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged
Bore×Stroke (mm×mm) 114 x 135
Displacement (Liter) 8.3
Rated power 115KW
Rated speed 1500rpm
Starting Method DC24V electrical starting
Speed Governor Electronic
Cooling System By sea water heat exchanger
Fuel Consumption 212g/kw.h
3. Specification of alternator
Alternator brand Stamford
Alternator model UCM274E/125
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement

Global Power Service:

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience

of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000

fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator

sets as per your specific requirements.
4. We provide professional & in time service after sale.
