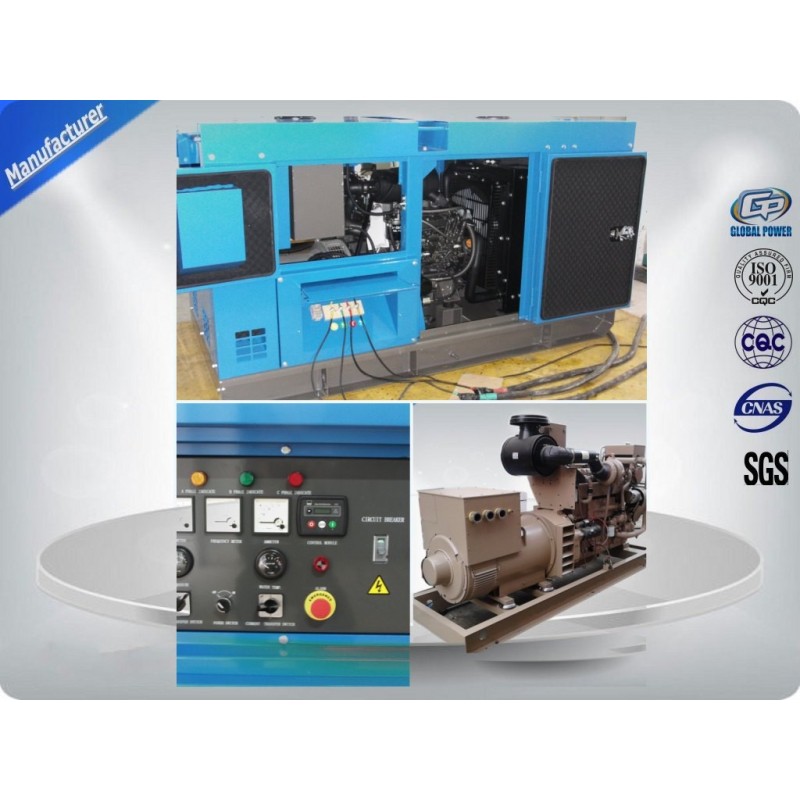

Self - Excited Marine Generator Set
Self - Excited Marine Generator Set
Specifications
Brand Name :
Global Power
Model Number :
CCFJ160J
Certification :
CCS / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negociable
Delivery Time :
30-35 days after receiving the down-payment
Packaging Details :
Plastic Foam or Plywood Case
Type: :
Micro-Computer Control Automatic Genset
Rated Current Range :
36-2088A, available
Speed :
1500 / 1800prm
Insulation class :
H
Excitation Mode :
Ac Self-Excited
Export Markets :
Global
Rated Voltage :
220V/380V, 230V/400V, 240V/415V
Installation Method :
Fixed
Description

Self - Excited Marine Generator Set

Product Description

Cummins series marine diesel generator set have features of compact structure, large power, low oil consumption, low discharge, low noise, reliable performances, and long lifetime. Its professional service networks spread across the world, which can provide 24 hours after service and assure the supplying of accessories in time.

Feature:
Generator can be used as main marine generator, marine emergency generator or harbor generator; CCS, BV approved;
Cooled by heat exchanger and sea water pump; Adopt Cummins Engine with twin high pressure fuel pipe and fuel leakage alarming system;
Alternator Options: Stamford / Meccalte / Faraday....
Supply Scope

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..

CUMMINS Marine Genset Model List :
Self - Excited Marine Generator Set

Specification:

Engine Standby Output ( LTP) kW 360
Engine Prime Output (PRP) kW 330
Engine Continuous Power (COP) kW 300
Standby Output's Torque . ( N.M ) 2292
Prime Output's Torque . ( N.M ) 2101
Continuous Output's Torque . ( N.M ) 1910
BMEP for Standby Output bar 22.48
BMEP for Prime Output bar 20.60
BMEP for Continuous Output bar 18.72
Speed droop (static) elect. Gov. 0-5%
Max. step load acceptance, 1st step ( % Prime Output ) 65%
Basic Performance Datasheet
Aspiration Type Turbocharger, air-water aftercooler
Injection Type Direct Injection
Configuration In line
No. of Cylinders 6
Displacement l 12.8
Bore mm 128
Stroke mm 166
Compression Ratio 15.5:1
Piston Speed m/s 8.3
Rotation Direction (from flywheel) Counter Clockwise
Number of Flywheel Teeth 160
Flywheel House Size SAE1-14
Lubrication System
Lube Oil Specification API-CF4
Oil Capacity l 40
Max. Permissible Oil Temperature °C 110
Low Oil Pressure Warning kPa 200
Low Oil Pressure Shutdown kPa 160
Oil consumption (as % of fuel consumption) max 0.5
Cooling System
Coolant Capacity for Engine l 18
Max. Permissible Temperature °C 90
Max. Coolant Warning Temperature °C 95
Max. Coolant Shutdown Temperature °C 105
Thermostat Open Temperature °C 82
Flow of Coolant pump m³/h 19.7
Heat dissipation (engine radiator) kW 173
Heat dissipation (CAC) kW *
Heat dissipation (convection) kW 26
Fuel System
Governor Type Electrical
Engine Output at prime output kW 330
Fuel Consumption at 25% of prime output l/h 26.69
Fuel Consumption at 50% of prime output l/h 44.49
Fuel Consumption at 75% of prime output l/h 61.88
Fuel Consumption at 100% of prime output l/h 80.88
Lowest Fuel Consumption Ratio g/kW.hr 204.66
Intake & Exhaust System ( On standby Output )
Combustion Air Consumption m³/min 27.00
Max. Intake Restriction KPa 5
Max. Exhaust Temperature (Before Turbo) °C 625
Max. Exhaust Temperature (After Turbo) °C 485
Max. Exhaust Back Pressure Kpa 5
Exhaust Gas Flow m³/min 33.00
Exhaust Flange Diameter mm 125
Electrical System
Charging Alternator Voltage V 28
Charging Alternator Capacity A 35
Starting Voltage V 24
Starting Motor Capacity kW 6.6
Minimum Battery Capacity Ah 2*150

Self - Excited Marine Generator Set

Global Power Service:

Our Services

Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
