Specifications
Brand Name :
GoreLink
Model Number :
GTA1040
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
1pcs/box
Product :
Pen type Visual Fault Locator
Features :
Handheld and Portable design
Part No. :
GTA1040
Output Power :
1-5mW
Optical Connector :
2.5mm universal connector
Dynamic Distance Range :
<5km
Wavelength :
650nm ± 10nm
Operating Temperature :
-10~+45 ℃
Storage Temperature :
-40~+70 ℃
Description

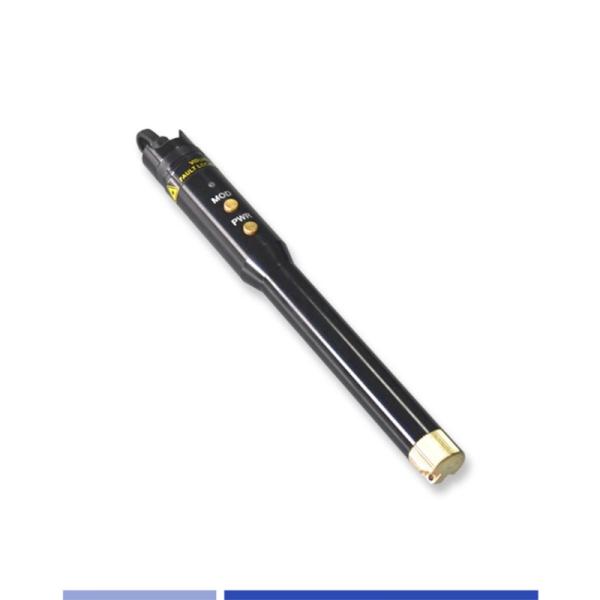

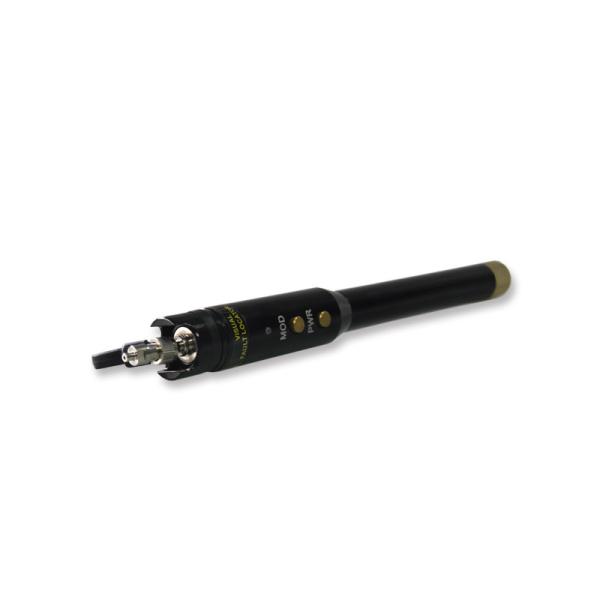

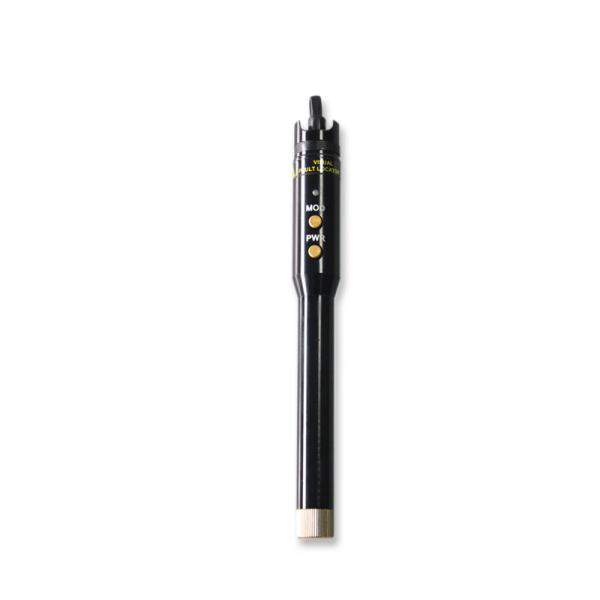

Pen type Visual Fault Locator,1mW,5KM,VFL

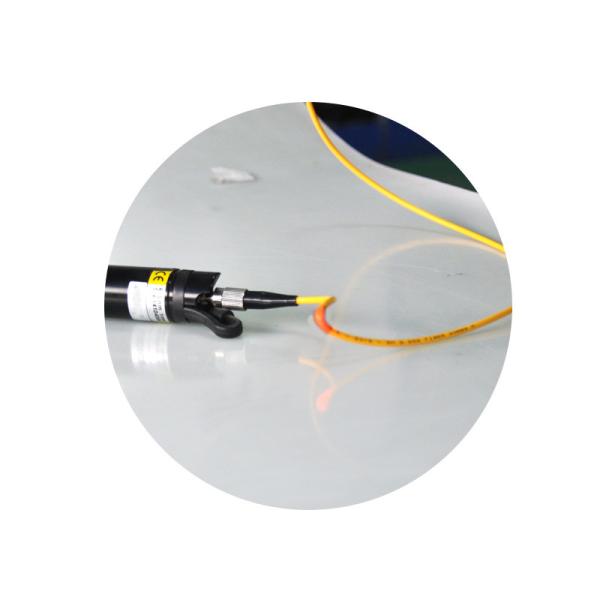

What is Visual Fault Locator? The Visual Fault Locator (VFL) is a compact, handheld tool used in fiber optic networks to identify and troubleshoot issues in optical fibers. It emits a visible red laser light (typically at a wavelength of 650 nm) into the fiber, enabling technicians to visually locate breaks, bends, faulty splices, and other defects. It can also be applied to identify the connectors in patch panels and identify the fibers during splicing operation.

Application

  • Premise wiring

  • Voice/Data

  • Local Area Networks

  • FTTH

Key Features of a Visual Fault Locator

  • Red Laser Light that is visible to check when a fault is present in the fiber.
  • Continuous and Pulsed Modes that offer a continuous light mode for steady illumination and a pulsed mode for easier fault identification over long distances.
  • Compact and Portable with a Small, lightweight design that makes it easy to carry in the field.

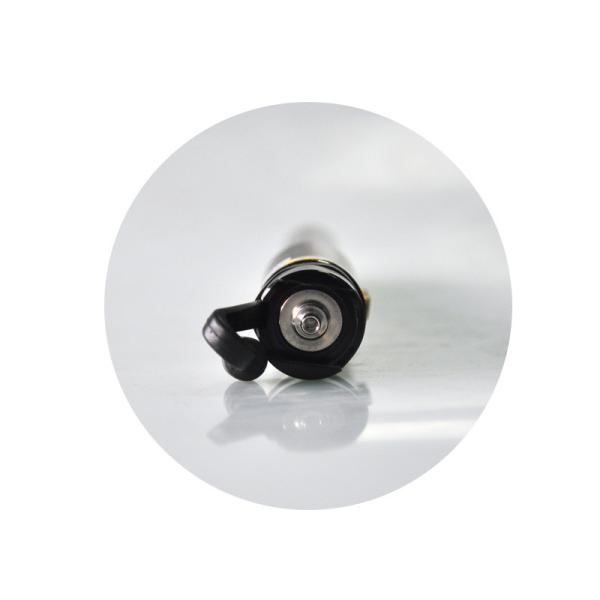

  • Connector Compatibility with 2.5 mm ferrules (compatible with SC, ST, and FC connectors) or 1.25 mm ferrules (for LC and MU connectors).
  • Long Distance Detection
  • Durable Construction:
  • Battery Operated by standard batteries (e.g., AA or AAA) for portability.

General Specification

Product Type

Pen type Visual Fault Locator

Central Wavelength

650nm±10nm

Emitter Type

FP-LD

Output Power

1mw

Optical Connector

2.5mm universal connector

Operating Mode

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2 AAA alkaline batteries

Operating Temperature

-10~+45 (℃)

Storage Temperature

-40~+70 (℃)

Dimension

24.5*5.5*5.5cm

Weight

0.25kg

5KM VFL Visual Fault Locator 1mw Portable Heat Resistance High Accuracy

Download Datasheet

Pen Type Visual Fault Locator

Ordering Information

PART NO.

DESCRIPTION

GTA1040

Gorelink Pen type Visual Fault Locator,1mW,5KM,VFL

GTA1041

Gorelink Pen type Visual Fault Locator,10mW,10KM,VFL

GTA1042

Gorelink Pen type Visual Fault Locator,20mW,20KM,VFL

GTA1043

Gorelink Pen type Visual Fault Locator,30mW,30KM,VFL

* Customized
