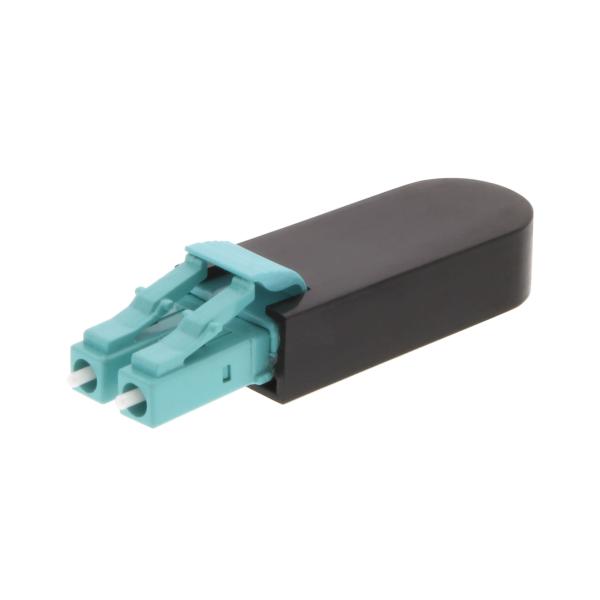

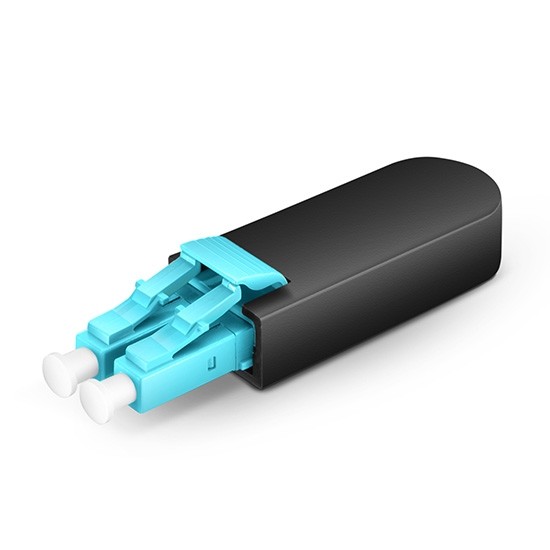

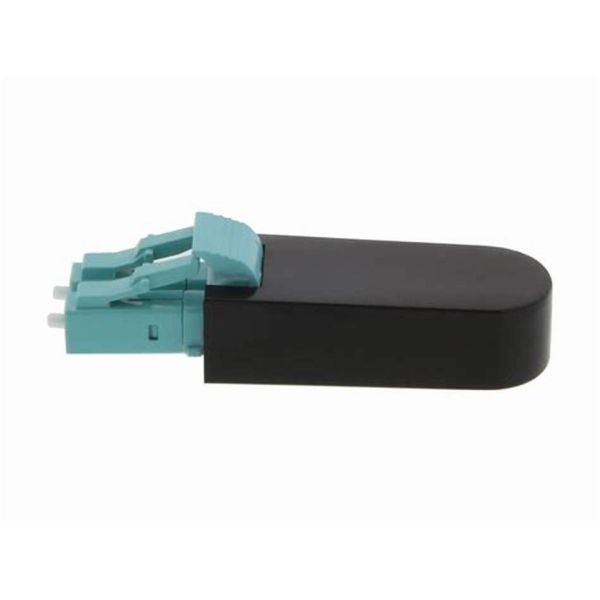

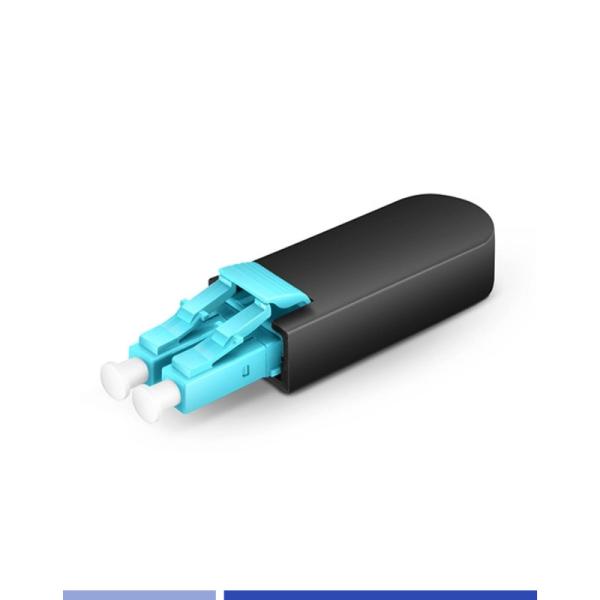

LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks
Specifications
Brand Name :
GoreLink
Model Number :
G4431
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
1pcs/bag
Product :
Fiber optic loopback module
Application :
Fiber Optic Equipment and Networks
Part No. :
G4431
Adapter type :
LC/UPC
Fiber Type :
OM3
Wavelength :
850nm,1300nm
Color :
Aqua
Flange :
No
Insertion loss :
≤0.3dB
Return loss :
≥50dB
Sleeve :
Zirconia
Operating temperature :
-20~+75℃
Storage temperature :
-40~+85℃
Description
Overview

LC OM3 Fiber Loopback Module is designed for fiber optic network testing, signal routing, and diagnostics in high-speed communication systems. It is widely used for transceiver testing, network troubleshooting, and fiber optic equipment verification in data centers and telecommunication networks.



Application


  • Data center network testing
  • Optical transceiver verification
  • Fiber optic diagnostics and maintenance
  • High-speed communication systems
  • Telecom and enterprise networks
  • 40G/100G network testing

Features

  • LC connector interface
  • OM3 multimode fiber
  • Low insertion loss and stable performance
  • Compact and lightweight design
  • Plug-and-play installation
  • Reliable loopback signal testing


General Specification



Fiber Adapter Type

LC/UPC loopback

Body Style

Duplex

Fiber Mode

OM3

Polish Type

UPC

Insertion Loss

≤0.3dB

Mounting Type

No

Housing Color

Plastic

Durability

1000 times

Alignment Sleeve Material

Ceramic

Flammability Rate

UL94-V0

Compliant

Telcordia GR-326-CORE





LC/UPC OM3 Fiber Optic Loopback Module For Testing Networks





Ordering Information



PART NO.

DESCRIPTION

G4431

OM3 LC/UPC Fiber optic Loopback module



If you need any further assistance, please feel free to contact us at sales@gorelink.com .
