Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight
Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight
Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight
Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight
Specifications
Place of Origin :
China
Brand Name :
GoreLink
Certification :
ISO,RoHS,REACH
MOQ :
1000m
Packaging Details :
Spool+Carton
Delivery Time :
As per the order quantity
Payment Terms :
T/T,Paypal,Western Union
Model Number :
G123-102
Product Name :
Zipcord Fiber Optic Cable
Features :
Widely used between wiring closets and equipment rooms
Part Number :
G123-102
Fiber Type :
OM3
Core/Cladding Diameter :
50/125um
Jacket :
LSZH
Diameter :
2.0mm
Color :
Aqua
Operating Temperature :
-20℃ to 75℃
Wavelength :
850nm,1300nm
Description

Indoor Fiber Optic Zipcord Cable,OM3 50/125um,LSZH,2.0mm

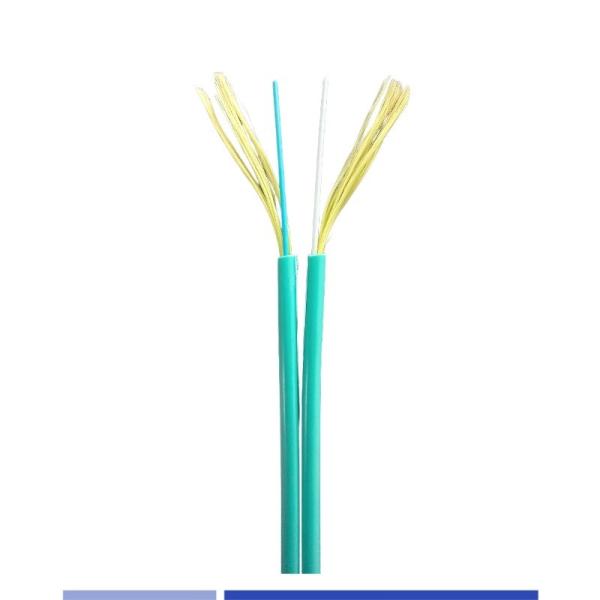

Zipcord Duplex Optical Fiber Cable is used for general indoor applications where consistency and uniformity are essential. It contains 2 fibers with aramid yarn as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations. The cable is lightweight, soft, and easy to peel with aramid yarn as a reinforcing member. It is widely used for data centers, indoor point-to-point connections, and pigtails and jumpers for communication equipment. The strands are color-coded for easy identification and installation.

Application of Zipcord Fiber Optic Cable

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification of Zipcord Fiber Optic Cable

Fiber Mode

Multimode OM3 50/125um

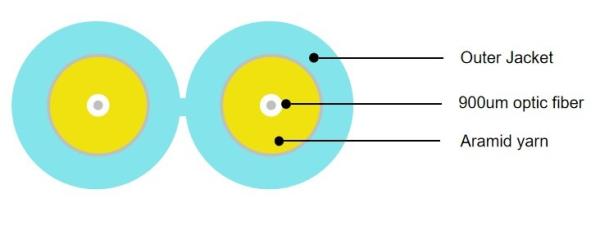

Cable structure

Duplex

Strength Member

Aramid Yarn

Cable Diameter

2.0mm

Cable Color

Aqua

Cable Jacket

LSZH

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤2.4 dB @850nm

Core diameter(um)

50/125

Cladding diameter(um)

125

Wavelength

850nm / 1300nm

Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight

Ordering Information

PART NO.

DESCRIPTION

G123-102

Fiber Optic Zipcord Cable,Multimode OM3 50/125um,Duplex,LSZH,2.0mm,Aqua

* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com
