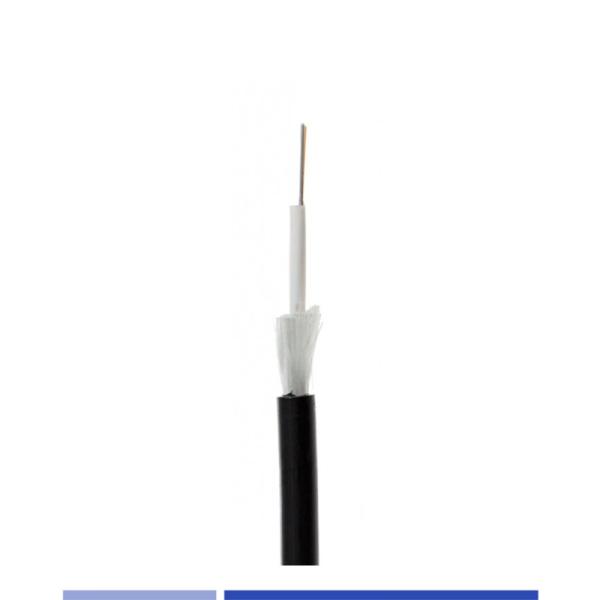

Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks
Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks
Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks
Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks
Specifications
Brand Name :
GoreLink
Model Number :
GL-IO-324L
Certification :
ISO,RoHS,REACH
Place of Origin :
Made in China
MOQ :
1000m
Payment Terms :
T/T,Paypal,Western Union
Delivery Time :
As per the order quantity
Packaging Details :
Wooden Drum/Spool+Carton
Product Name :
Indoor/Outdoor Fiber Cable
Fiber Count :
24 Fiber
Fiber Type :
Multimode OM3
Cable Design :
Central Loose Tube
Jacket Material :
LSZH
Color :
Black
Part Number :
GL-IO-324L
Applications :
Indoor/Outdoor application
Core Count :
Up to 24 cores
Features :
Indoor/Outdoor Cable
Description
Indoor/outdoor fiber optic cable are designed for installations where the cable needs to pass through both indoor and outdoor environments. This Indoor/outdoor Fiber Optic Cable offers a reliable, efficient, cost-effective solution for modern communication infrastructure needs. Their ability to seamlessly transition between indoor and outdoor environments makes them a versatile choice for various applications, from commercial buildings and data centers to industrial complexes and telecom networks. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter. Its durable design allows it to withstand installations and operations.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Multimode OM3
Fiber Count 24 Core
Cable structure Central loose tube

Strength Member

Glass Yarn

Cable Diameter

6.0mm

Cable Jacket

LSZH

Cable Color

Black

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

850nm≤3.0dB 1300nm ≤1.0dB

Core diameter(um)

50±2.5

Cladding diameter(um)

125±1.0
Wavelength 850nm / 1300nm
Operating Temperature -20~75deg
Storage Temperature -40~80deg

Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks

Ordering Information

PART NO.

DESCRIPTION

GL-IO-302L

Indoor/Outdoor Fiber Optic Cable, 2 Fiber, MM OM3,LSZH,Black

GL-IO-304L

Indoor/Outdoor Fiber Optic Cable, 4 Fiber, MM OM3,LSZH,Black

GL-IO-306L

Indoor/Outdoor Fiber Optic Cable, 6 Fiber, MM OM3,LSZH,Black

GL-IO-308L

Indoor/Outdoor Fiber Optic Cable, 8 Fiber, MM OM3,LSZH,Black

GL-IO-312L

Indoor/Outdoor Fiber Optic Cable, 12 Fiber,MM OM3,LSZH,Black

GL-IO-324L

Indoor/Outdoor Fiber Optic Cable, 24 Fiber,MM OM3,LSZH,Black

* Customized
