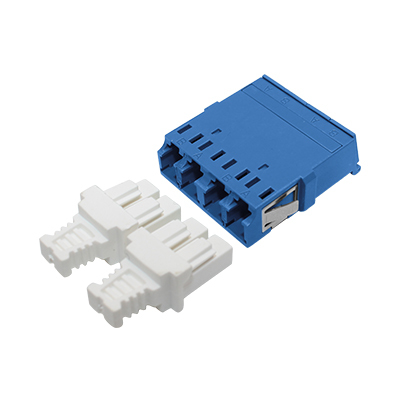

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
Specifications
Brand Name :
GoreLink
Model Number :
G419-144
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
25pcs/Pkt
Product :
Fiber optic adapter
Application :
FTTX/Telecommunication
Laser Protection :
With anti-laser shutter
Part No. :
G419-144
Adapter type :
LC/UPC
Fiber count :
Quad
Fiber Type :
Singlemode
Wavelength :
1310nm
Color :
Blue
Flange :
Without flange
Insertion loss :
≤0.3dB
Return loss :
≥50dB
Sleeve :
Zirconia
Housing material :
Plastic
Operating temperature :
-40~+75℃
Storage temperature :
- 40~+85℃
Description
This LC UPC quad fiber adapter is a high-density, multi-fiber optical terminator designed to safely and simultaneously terminate four independent laser outputs. It is engineered for use with LC Quad (4-fiber MPO-based) trunk systems commonly found in modern high-speed data centers (40G/100G/400G Ethernet), central offices, and any environment using parallel optics. This device ensures laser safety, protects sensitive transceivers from back-reflection, and maintains network integrity.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Adapter Type

LC

Body Style

Quad(4-fiber)

Fiber Mode

Singlemode

Polish Type

UPC

Insertion Loss

≤0.3dB

Mounting Type

Without Flange

Housing Color

Blue

Durability

＞1000 times

Alignment Sleeve Material

Ceramic

Flammability Rate

UL94-V0

Compliant

Telcordia GR-326-CORE

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

Ordering Information

PART NO.

DESCRIPTION

G419-144

Fiber Optic Adapter,Anti Laser LC/UPC Singlemode Quad without flange
