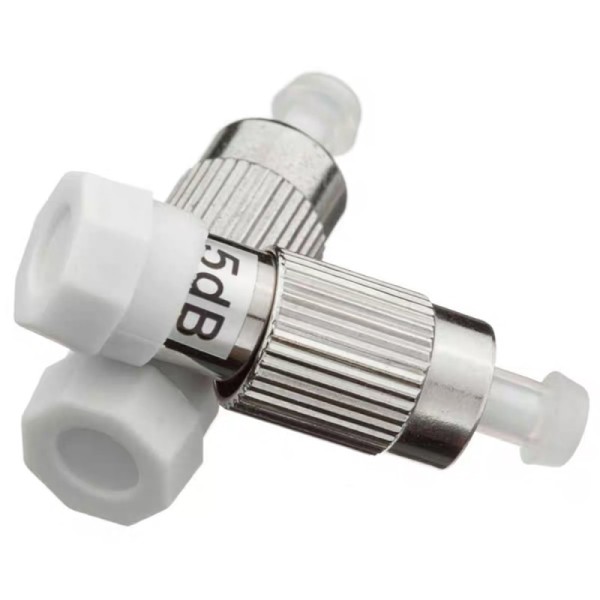

FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
Specifications
Brand Name :
GoreLink
Model Number :
GL-AT-P-FCU-05
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
1pcs/bag
Product Name :
Fiber Optic Attenuator
Application :
CATV
Connector Type :
FC/UPC
Fiber Type :
Singlemode
Attenuation :
5 dB
Part Number :
GL-AT-P-FCU-05
Features :
Low insertion loss and good durability
Attenuation level range :
0~30dB customized
Type :
Fixed Plug-in Fiber attenuator
Repeatably :
≤0.2db
Wavelength :
1260 to 1650nm
Description
FC/UPC Fixed Plug-in Fiber Optic Attenuator Singlemode 5dB
The FC/UPC fixed fiber optic attenuator is engineered to reduce optical signal power in singlemode fiber optic systems. Featuring a plug-in (male-female) structure with precision ceramic ferrule and metal housing, it delivers stable attenuation performance, low return loss, and exceptional reliability for telecom, CATV, and optical communication applications. Available in attenuation values ranging from 1dB to 30dB.
Applications
  • Fiber optic communication networks
  • FTTH and FTTx systems
  • CATV systems
  • Optical transmission systems
  • Test and measurement equipment
  • Preventing receiver overload in short-distance optical links
Key Features
  • FC/UPC interface for low back reflection
  • Plug-in (Male-Female) type for easy installation
  • Singlemode OS2 compatible
  • Fixed attenuation values from 1dB to 30dB
  • Low Polarization Dependent Loss (PDL)
  • Stable performance at 1310nm and 1550nm wavelengths
  • Metal housing with precision ceramic ferrule
  • Compact and durable structure
  • 100% factory tested for attenuation accuracy
General Specifications
Fiber Mode Singlemode
Connector Type FC/UPC
Structure Plug-in (Male-Female)
Ferrule Zirconia Ceramic
Operating Wavelength (nm) 1310~1550
Durability >1000 times
Max Optical Input Power 200mW
Return Loss >50dB
Operating Temperature (°C) -20 ~ +75
Storage Temperature (°C) -40 ~ +85
Fixed Customized Singlemode Fiber Optic Attenuator
The optical attenuator features precise attenuation values, low PDL, low insertion loss, and fine reflection polishing for optimal performance.
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB

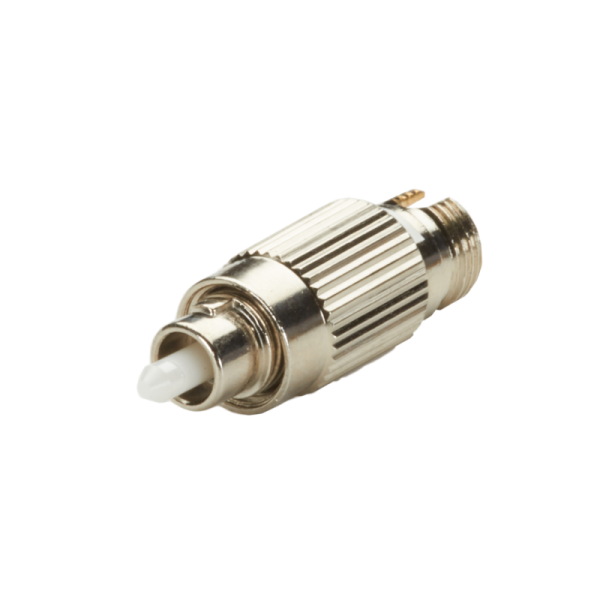

Durable Metal Shell protects the core insert from external damage
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB

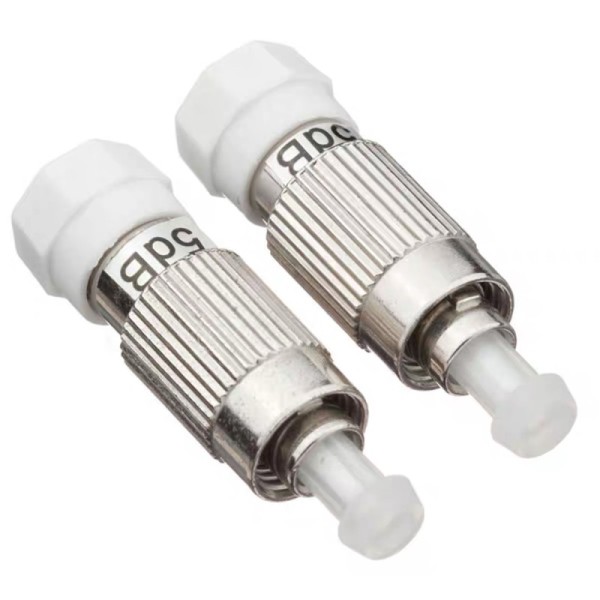

Protective Dust Cap prevents dust accumulation and maintains cleanliness
FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
Zirconia Ceramic Ferrule with precision polishing for reduced back reflection
Download Datasheet
FC/UPC Fiber Optic Attenuator
Ordering Information
PART NO. DESCRIPTION
GL-AT-P-FCU-03 GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 3dB
GL-AT-P-FCU-05 GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 5dB
GL-AT-P-FCU-08 GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 8dB
GL-AT-P-FCU-15 GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 15dB
Customized Custom configurations available
If you need any further assistance, please feel free to contact us at sales@gorelink.com.
