P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
Specifications
Color Temperature :
2000-9300 adjustable
warranty :
1 Year
Operating Temperature :
-20℃-70℃
Resolution :
208*208
Waterproof :
ip66
Viewing Angle :
170°
Contrast Ratio :
7000:1
Power Consumption :
≤500W
Refresh Rate :
3840HZ
Mounting options :
Floor stand, Custom Mount, ceiling mount, wall mount
Power Supply :
100-240V DC
Content Management System :
Yes
Sunlight Readable :
Yes
Remote Device Management :
No
Usage environment :
shopping malls, window display, outdoor permanent, stage background, outdoor fixed, outdoor permanent installation, outdoor fixed installation, advertising display, indoor/outdoor, trade show, advertisement, Outdoor use, electric scooter, billboard, island
type :
LED
brand name :
Googol
application :
Outdoor
use :
advertising publish, retail store, display of dishes, welcome display, shopping mall, self-service business, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment, airport, wayfinding, exhibition hall
media available :
Photo, EDA/CAD Models, datasheet, Other
color :
Full-color
model number :
P4.81
pixel density :
43264 dots/square meter
place of origin :
ShenZhen,China
pixels :
P4.81
Brightness :
7000cd
Pixel Structure :
SMD1921 3in1
Module resolution (W*H) :
104*52=5408
Module size (mm) :
500*250
Module weight (kg) :
2.7kg
Module input voltage (V) :
4.2V
Maximum current of the module (A) :
≤18A
Maximum power consumption (W) :
≤66W
Cabinet module composition (W*H) :
4(W)*2(H)
Cabinet resolution (W*H :
208*208
Cabinet size (mm) :
1000*1000*60mm
Price :
$879/pieces >=1 pieces
Description
Product Description
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
Specification
item
value
warranty
1 Year
type
LED
application
Outdoor
pixels
P4.81
Content Management System
Yes
Remote Device Management
No
place of origin
ShenZhen,China
Brightness
7000cd
Color Temperature
2000-9300 adjustable
Operating Temperature
-20℃-70℃
Resolution
208*208
Waterproof
ip66
Viewing Angle
160°
Contrast Ratio
7000:1
Power Consumption
≤500W
Refresh Rate
3840HZ
Frame rate (Hz)
≥60HZ
Drive mode
Constant current drive,1/13 scan
Gray level
Any within 65536 gray levels
Color processing bits
16 bit
Mounting options
Floor stand, Custom Mount, ceiling mount, wall mount
Power Supply
100-240V DC
Sunlight Readable
Yes
Usage environment
shopping malls, window display, outdoor permanent, stage background, outdoor fixed, outdoor permanent installation, outdoor fixed installation, advertising display, indoor/outdoor, trade show, advertisement, Outdoor use, electric scooter, billboard, island, City, Sea, Water, beach, PARK, Universal, Countryside, Exhibition, Advertising, Highway, Truck, Shop, Outdoor
brand name
Googol
use
advertising publish, retail store, display of dishes, welcome display, shopping mall, self-service business, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment, airport, wayfinding, exhibition hall
media available
Photo, EDA/CAD Models, datasheet, Other
color
Full-color
model number
P4.81
pixel density
43264 dots/square meter
Pixel Structure
SMD1921 3in1
Module resolution (W*H)
104*52=5408
Module size (mm)
500*250
Module weight (kg)
2.7kg
Module input voltage (V)
4.2V
Maximum current of the module (A)
≤18A
Maximum power consumption (W)
≤66W
Cabinet module composition (W*H)
4(W)*2(H)
Cabinet resolution (W*H)
208*208
Cabinet size (mm)
1000*1000*60mm
Cabinet material
Profile box
Typical lifespan (hrs)
100,000H
Operating temperature/humidity range (℃/RH)
-20℃-70℃/10%RH-98%RH(No condensation)
Storage temperature/humidity range (℃/RH)
-20℃-70℃/10%RH-98%RH(No condensation)
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
Product feature.
1、It has a strong adaptability to outdoor environmental climate
2、The structure is hard connected and the entire process is wireless：The product structure adopts hard connection, is wireless throughout the process, and has a neat and beautiful appearance.

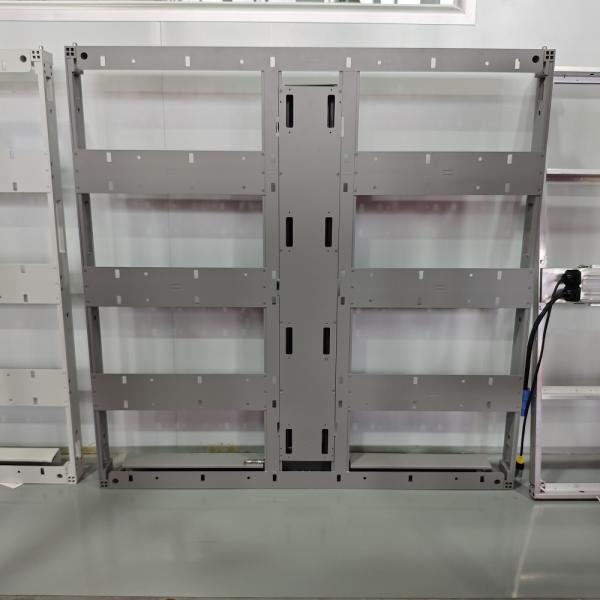

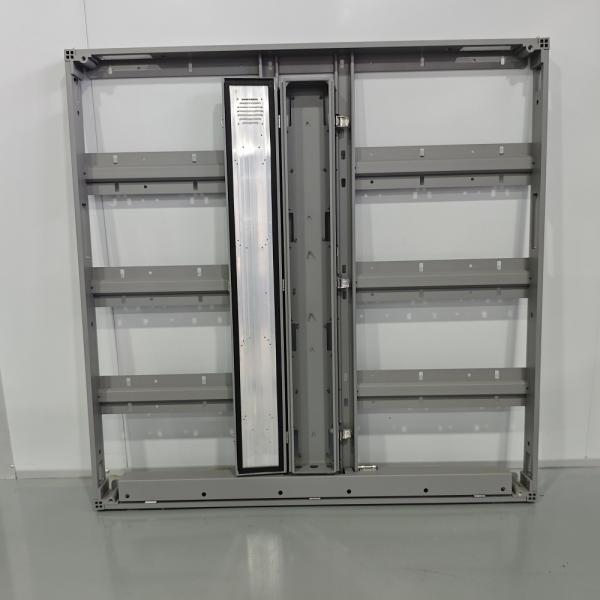

3、The profile box is lightweight, safe and reliable, and not prone to deformation：The LED display screen adopts a profiled box, with each box weighing only 23.5KG. It is flame-retardant and fireproof,
and is not prone to deformation under high-temperature conditions.
Installation hole location diagram
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof

Installation sample diagram

P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
P4.81 SMD1921 LED Display Module 104x52 Resolution IP66 Waterproof
