Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Manufacture Welding Cobot China Huayan Robotics E10L-Pro Industrial Automation Welding Collaborative Robot
Specifications
Brand Name :
Huayan
Model Number :
E10L-Pro
Place of Origin :
China
MOQ :
1
Price :
US $27500.00 - 29000.00/ Set
Payment Terms :
T/T
Supply Ability :
500 units per year
Delivery Time :
60-90 working days
Vertical Travel(mm) :
1300 mm / 51.2 in
Weight :
45kg
Payload (Kg) :
8
Degrees of freedom :
6 rotating joints
Repeatability :
±0.03 mm
Working Temperature :
0-50℃
Reach :
1300mm(51.2 in)
Maximum tool speed :
2.5m/s
IP Classification :
IP66
Description

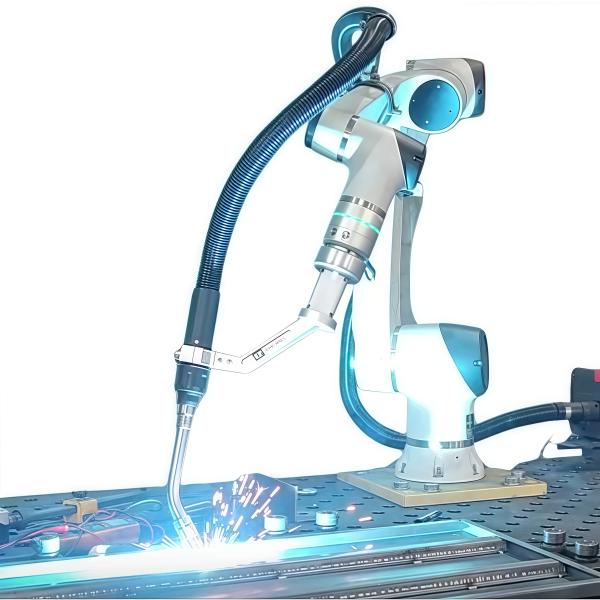

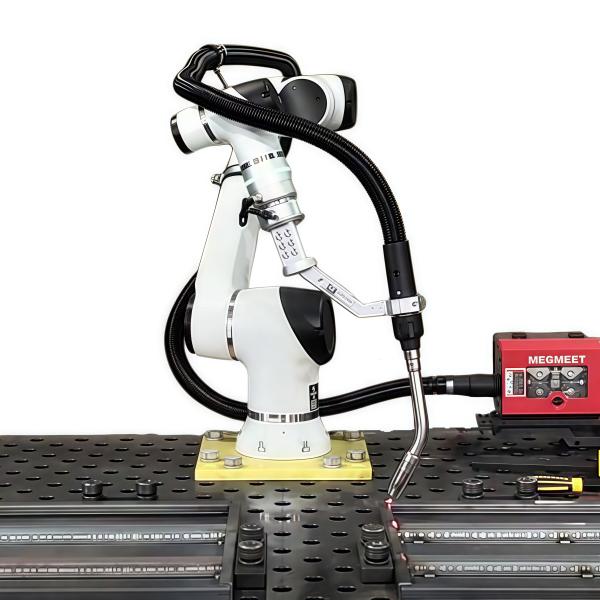

Huayan Robotics E10L-Pro Collaborative Welding Cobot

Product Overview

The Huayan E10L-Pro is a China-manufactured collaborative welding robot designed for industrial automation. It combines precision welding capabilities with human-robot collaboration, enabling safe and efficient operation in manufacturing environments. Ideal for small to medium-sized enterprises seeking cost-effective automation solutions.

Features

  • Collaborative Design: Works safely alongside human operators.
  • Precision Welding: Supports MIG/MAG, TIG, and spot welding.
  • Easy Programming: Intuitive touchscreen interface with hand-guiding teaching.
  • Flexible Deployment: Compact size for space-constrained workshops.
  • Advanced Safety: Built-in collision detection and emergency stop.
  • Industrial-Grade Durability: IP54-rated protection for harsh environments.

Technical Parameters

Parameter Value
Model Huayan E10L-Pro
Load Capacity 10 kg (welding torch)
Max Reach 1,400 mm
Repeatability ±0.05 mm
Welding Current Range 50-500A (MIG/MAG)
Power Supply 220V AC, 50/60Hz
Programming Method Teach pendant, hand-guiding
Safety Certification CE, ISO 10218-1, PLd Cat.3
Operating Temperature 0°C to +45°C

Applications

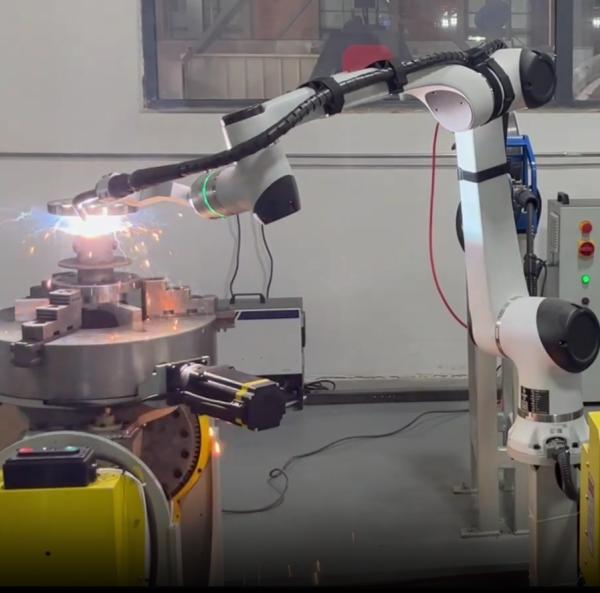

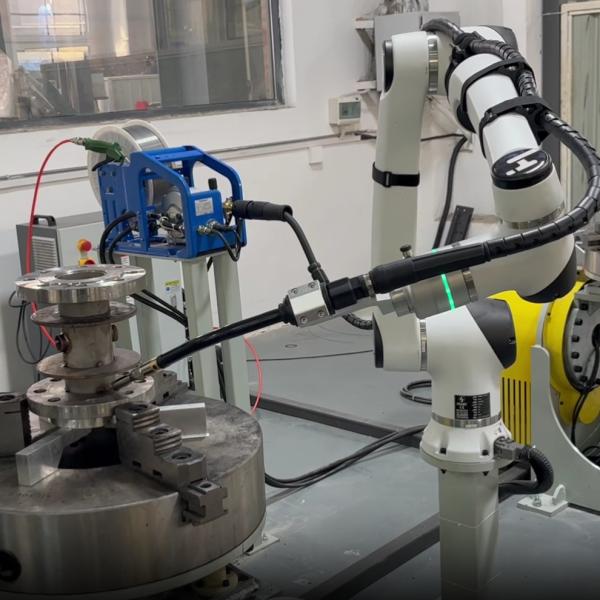

  • Automotive component welding
  • Metal fabrication workshops
  • Heavy machinery assembly
  • Construction steel structures
  • Electronics manufacturing
  • Aerospace part prototyping
