Specifications
Brand Name :
Huayan
Model Number :
Elfin E10
Place of Origin :
China
MOQ :
1
Price :
US $25500.00 - 26500.00/ Set
Payment Terms :
T/T
Delivery Time :
60-90 working days
Payload (Kg) :
10kg
Degrees of freedom :
6
Repeatability :
±0.03 mm
Working Temperature :
0-50℃
Horizonal Travel(mm) :
1000mm
Maximum tool speed :
2 m/s
IP classification :
IP54/IP66(Optional)
Description
Supplier Huayan Elfin E10 Payload 10KG Standardized Welding Equipment 6 Axis Picking Welding Collaborative Robotic Arm
Product Specifications
Payload (Kg) 10kg
Degrees of freedom 6
Repeatability ±0.03 mm
Working Temperature 0-50℃
Horizonal Travel(mm) 1000mm
Maximum tool speed 2 m/s
IP classification IP54/IP66(Optional)
Product Overview

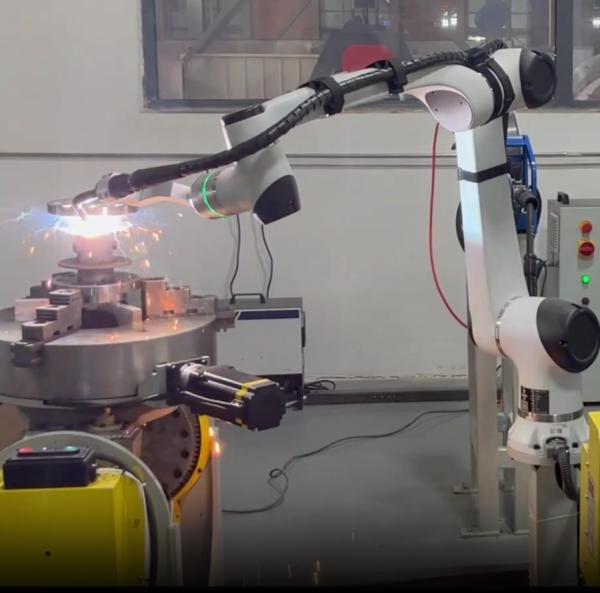

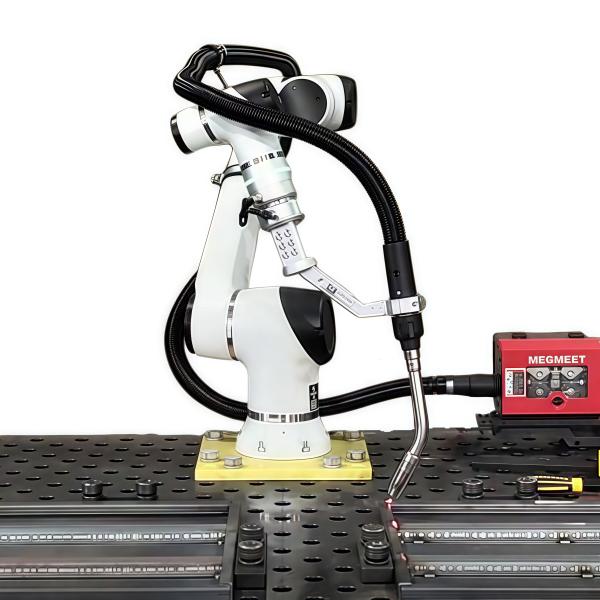

The Huayan Elfin E10 is a versatile 6-axis collaborative robotic arm designed for industrial automation. Combining a 10KG payload capacity with precision welding and picking capabilities, it serves as a standardized solution for manufacturers seeking flexible, safe, and efficient robotic integration. Ideal for small-batch production and complex assembly tasks.

Key Features
  • Collaborative & Safe: Works alongside human operators with built-in safety sensors.
  • Dual Functionality: Supports both welding (MIG/MAG/TIG) and precise part picking.
  • Easy Integration: Compatible with standardized welding equipment and end-effectors.
  • 6-Axis Flexibility: Enables complex motions in 3D space.
  • User-Friendly Programming: Drag-and-drop interface with hand-guiding teaching.
  • Compact Design: Space-saving footprint for crowded production lines.
  • High Precision: ±0.02mm repeatability for detailed tasks.
Technical Parameters
Model Huayan Elfin E10
Payload Capacity 10 kg
Axes 6-Axis
Repeatability ±0.02 mm
Max Reach 1,300 mm
Welding Compatibility MIG/MAG/TIG, Spot Welding
Power Supply 220V AC, 50/60Hz
Programming Method Teach Pendant, Hand Guiding
Safety Certification CE, ISO 10218-1, PLd Cat.3
IP Rating IP54 (Dust/Water Resistant)
Operating Temperature 0°C to +45°C
Applications
  • Automotive part welding and assembly
  • Electronics component picking and placement
  • Metal fabrication precision tasks
  • Medical device small-batch production
  • Consumer goods packaging lines
  • Aerospace prototyping and testing
