pallatizing robot for palletizer material-handling FD-V130 6 axis robot arm and robot with controller and for OTC
pallatizing robot for palletizer material-handling FD-V130 6 axis robot arm and robot with controller and for OTC
Specifications
Condition :
New
Machine Type :
pallatizing robot
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Pressure vessel, Gear
Place of Origin :
Shanghai, China
Brand Name :
OTC
Warranty :
1 Year
Key Selling Points :
Famous brand PLC
Weight (KG) :
734
Voltage :
200-600 V
Current :
40
Rated Capacity :
60%
Usage :
welding, For welding
After-sales Service Provided :
pallatizing robot palletizer FD-V130 6 axis robot arm rob
Type :
Robot
Model :
FD-V130
Reach :
2.139m
Payload :
130kg
Position repeatability RP (mm) :
+/- 0.003" (+/- 0.08 mm)
Axes :
6
Product name :
OTC Welding Robot
Installation Type :
Floor / Ceiling
Packaging Details :
Standard package
Port :
shanghai
Supply Ability :
20 Set/Sets per Month
Price :
$50,000.00/Sets 1-9 Sets
Description

pallatizing robot for palletizer material-handling FD-V130 6 axis robot arm and robot with controller and for OTC

Product Description

Specification Value
Number of Axes 6
Maximum Payload Capacity 286 lbs. (130 kg)
Positional Repeatability +/- 0.003" (+/- 0.08 mm)
Horizontal Reach 84" (2139 mm)
Vertical Reach 142" (3615 mm)
Upper Arm Payload Capacity 55 lbs. (25 kg)
Mass 1635 lbs. (743 kg)
Installation Type Floor / Ceiling

Our FD-V130, 6-axis robot is designed for material-handling and other applications that require a larger payload and reach. Built-in application cabling, utilities and user portal simplifies end-of-arm tooling integration and installation.

Click here to download more information.

ROBOT MANIPULATOR

• Offers a wide working range with an independently articulated arm

• Improved vibration restraining control provides smooth robot movement

• Single source technology – all components are manufactured by OTC Daihen.

• Highly versatile design supports picking, cutting, load/unload, welding, assembly, finishing and sorting applications.

• Through-arm support for end-of-arm tool interfacing including, pneumatic, power, I/O (digital, analog and network) and user/application-specific utilities.

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation

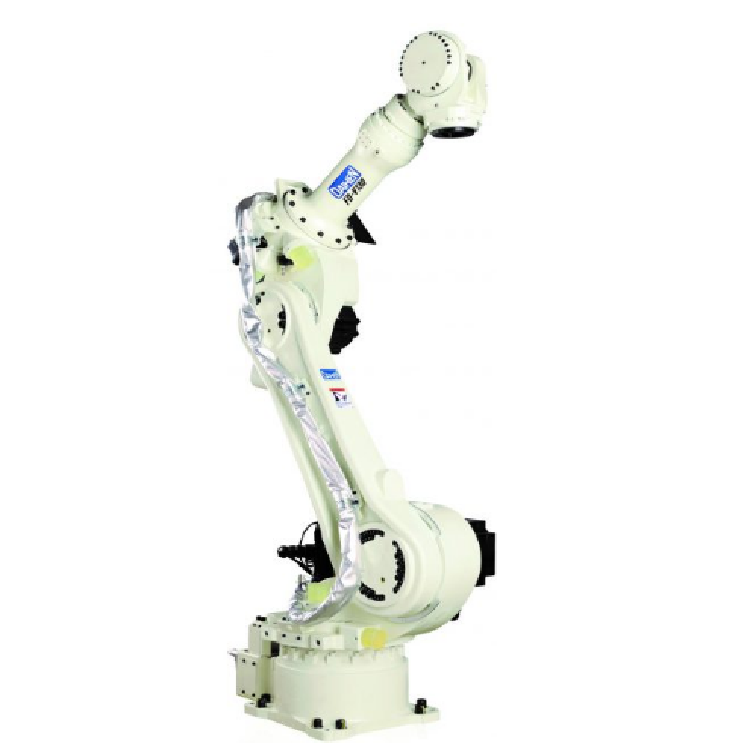

Product image
