Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Small Robot Load 7kg 6 Axis Industrial Robot KUKA KR 7 R700-3 KR 7 R900-3 AGILUS-3 Series Desktop Robots
Specifications
Control cabinet :
KR C5 micro
Reach :
902mm
Rated load :
7kg
Model Number :
KR 7 R900-3
Operating temperature :
0℃~45℃
MOQ :
1
Price :
US $10000.00 - 14500.00/ Unit
Packaging Details :
Cardboard box/Wooden crate
Teach pendant :
SmartPad 2.0
Axis :
6
Footage :
190*190mm
Payment Terms :
T/T
Supply Ability :
1000 units per year
Delivery Time :
6~8 weeks
Brand Name :
KUKA
Description
Product Overview

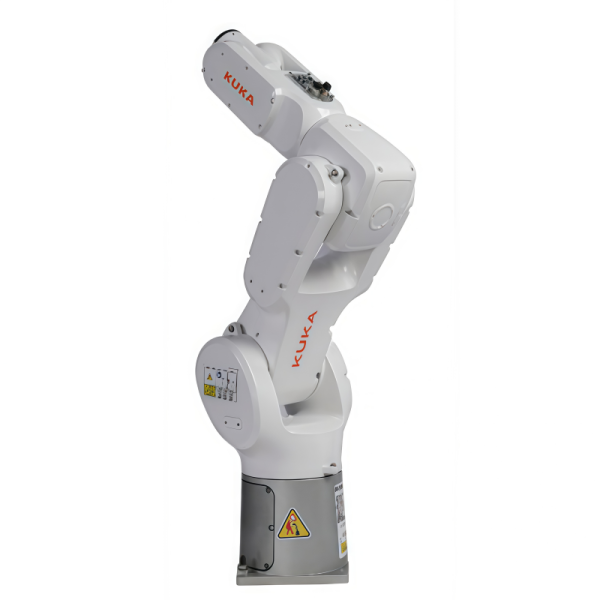

KUKA KR 7 R900-3 is a compact 6-axis industrial robot with 7 kg payload and 900 mm reach. It is designed for tabletop, desktop, or small-cell applications where space is limited but high precision and speed are required. This model is part of the KR AGILUS family and is widely used in labs, small automation cells, and education because of its clean design and easy integration.

Features
  • Very small footprint for desktop mounting
  • 7 kg payload with high speed and precision
  • KR C5 micro controller – compact and energy efficient
  • Cleanroom-compatible option available
  • Protection class IP54 (standard) or IP64
  • Fast cycle times and low vibration
  • Easy programming with KUKA smartPAD
Technical Specifications
Parameter Value
Payload 7 kg
Maximum Reach 900 mm
Number of Axes 6
Repeatability ±0.03 mm
Maximum Speed Up to 5.5 m/s (TCP)
Mounting Positions Floor, ceiling, wall, desktop
Protection Rating IP54 (standard), IP64 option
Ambient Temperature 5 °C to 55 °C
Controller KR C5 micro
Applications

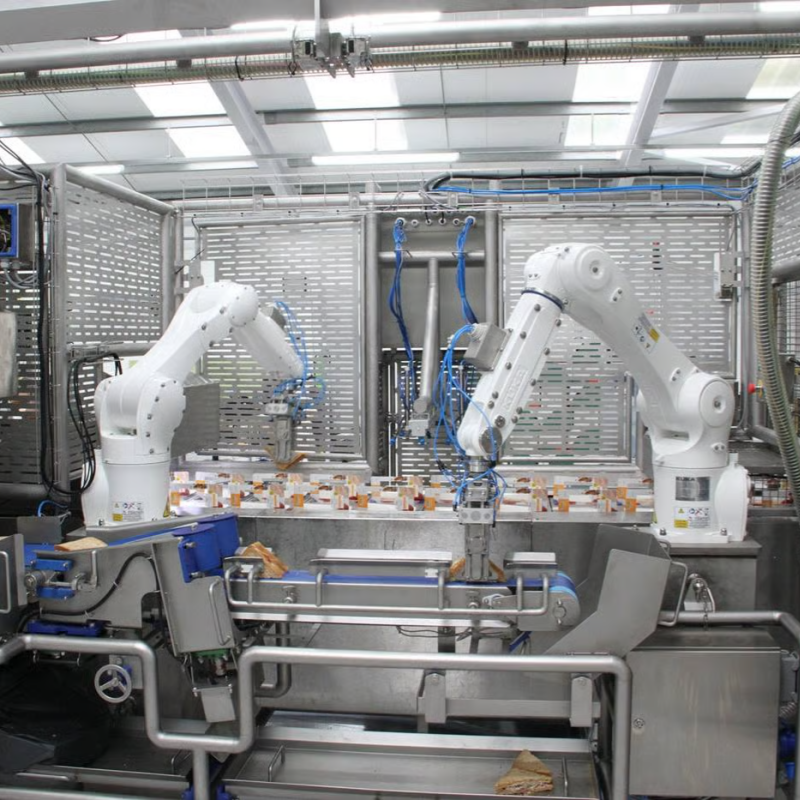

  • Desktop automation and small-cell tasks
  • Laboratory and research automation
  • Precision assembly and handling
  • Educational robotics training
  • Small parts pick & place
FAQ

Q: What is the repeatability?

A: ±0.03 mm.

Q: Can it be ceiling mounted?

A: Yes – supports floor, ceiling, wall, and desktop mounting.
