Specifications
Brand Name :
FANUC
Model Number :
M-410iC/110
MOQ :
1
Price :
US $32500.00 - 35500.00/ Set
Payment Terms :
T/T
Supply Ability :
100 sets per year
Delivery Time :
90 days
Packaging Details :
As required
power(w) :
3 kW
Ingress Protection :
IP54
weight (kg) :
1030
Reach :
2403 mm
Repeatability :
±0.05 mm
Controlled axes :
4
Max.load capacity at wrist :
110 kg
Description

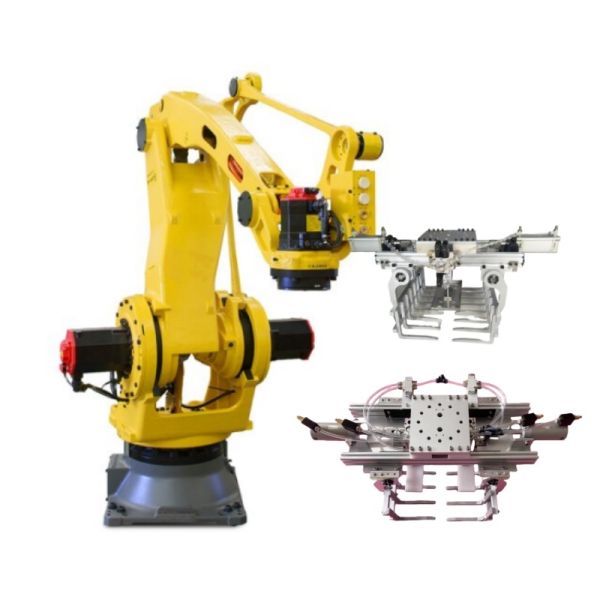

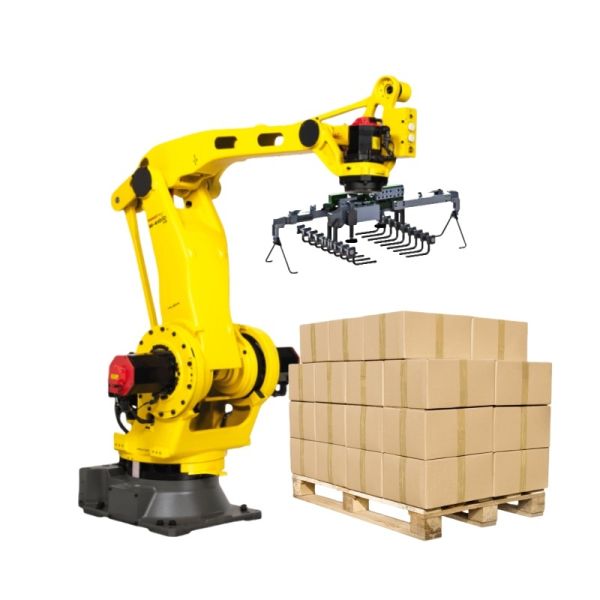

Fanuc M-410iC/110

The yellow palletizing monster that does 1700+ cycles per hour with a full 110 kg carton

Why Every Big Warehouse Ends Up Buying This One

Most 100–120 kg palletizers are slow. The M-410iC/110 is different – it has the same super-fast J4 axis as the 185 kg version, so it flies around the pallet at 1700–1800 cycles/hour with a real 110 kg load (not 110 kg at 50 mm offset). Beverage plants, feed mills, cement bag lines – if they palletize heavy stuff fast, this is the robot they install three or four at a time.

Stuff That Actually Matters on the Floor
  • 110 kg full payload all the way to the edge of the wrist
  • 2400 mm vertical stroke – stacks 2.2 m high on a normal 150 mm pallet
  • Super quick hollow wrist – vacuum or clamp never hits anything
  • IP67 wrist – flour dust, sugar dust, no problem
  • R-30iB Plus controller – same as the small robots
  • Can run on 4-axis mode for even faster cycles
Real Numbers
Payload 110 kg

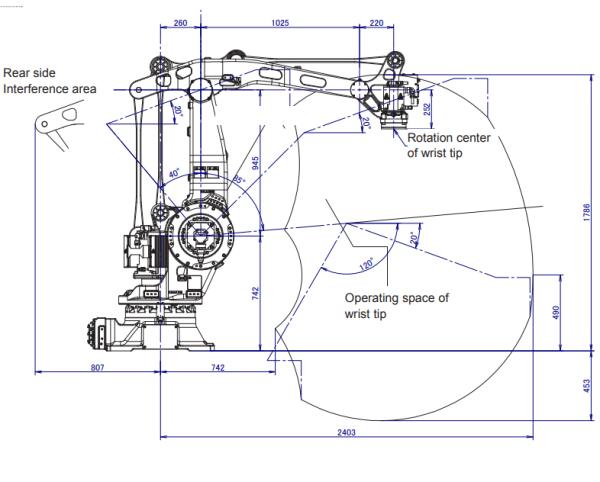

Reach 2403 mm
Vertical stroke 2400 mm
Repeatability ±0.05 mm
Cycle rate 1700–1800 cycles/h (400 mm up, 2000 mm horizontal, 400 mm down)
Robot weight 950 kg
Where It Works 3 Shifts
  • Beer and soft drink palletizing
  • Animal feed 25–50 kg bags
  • Cement and mortar bags
  • Flour and sugar 25 kg sacks
Questions from Warehouse Managers

Q: Is 110 kg real?A: Yes – full 110 kg at flange, even with a big vacuum gripper.

Q: How many boxes per hour?A: Real plants hit 1600–1700 with 20–25 kg cartons.

Contact
Phone: +8615000725058 Email: edwardzhao@gbsxj.com
Other Palletizing Robots
  • M-410iC/185 – bigger brother
  • M-410iC/160 – faster but lighter
  • M-410iC/315 – 315 kg monster
