Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Accuracy 4 Axis Box and Bag Palletizing Robot Fanuc M-410iC/185 Material Handling Industrial Customized Robot Grippers
Specifications
Brand Name :
Fanuc
Model Number :
M-410iC/185
MOQ :
1
Price :
US $32000.00 - 34500.00/ Set
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
90 days
Packaging Details :
As requested
power(w) :
3 kW
Ingress Protection :
IP54
Reach :
3143 mm
Repeatability :
± 0.05 mm
Controlled axes :
4
Max.load capacity at wrist :
185 kg
Description

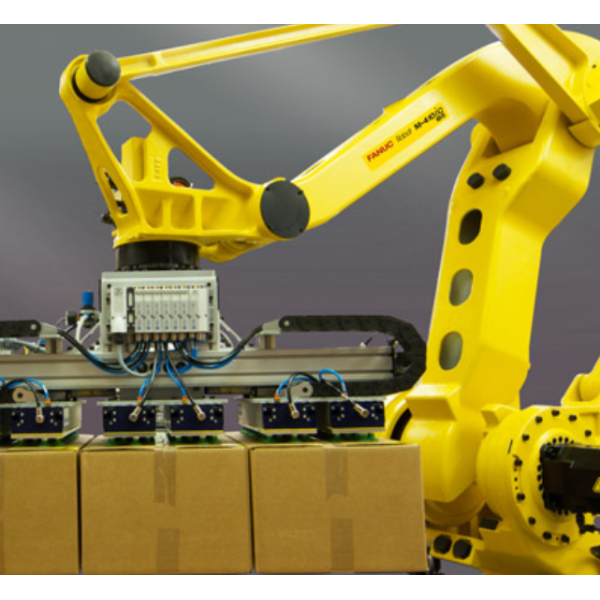

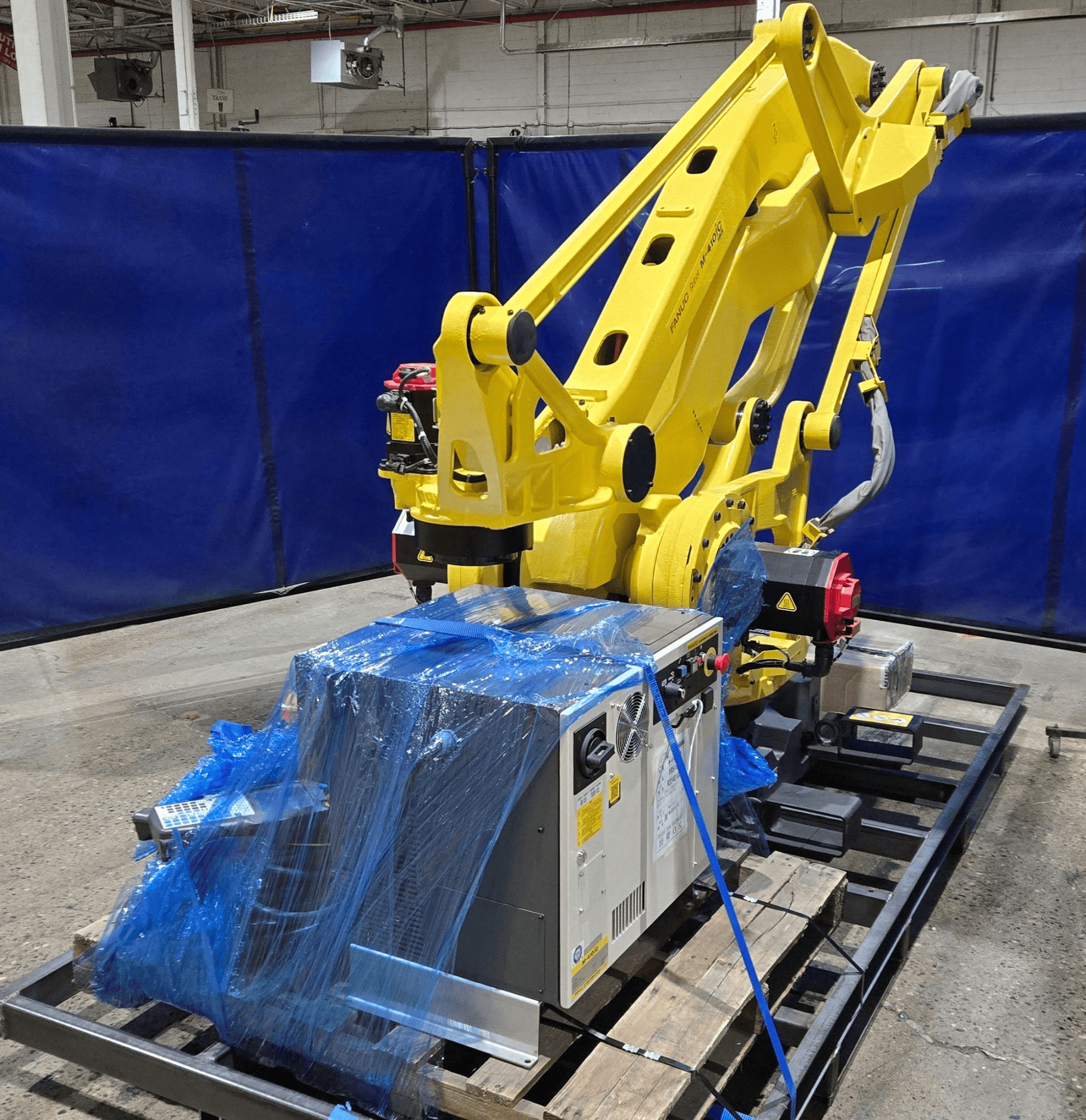

Fanuc M-410iC/185

The yellow beast you see stacking four 50 kg bags at once in every big feed mill

Why This Is Still the Most Popular Heavy Palletizer in 2025

When you need to move 40–80 kg bags or boxes all day long and still want 2000+ cycles per hour, nothing beats the M-410iC/185. It lifts a real 185 kg at full speed, has a 3143 mm reach, and the J4 axis spins like crazy. Rice mills in Thailand run six of them on one line. Cement plants in the Middle East stack 50 kg bags per minute. One robot, no drama, been doing it for 15 years.

Stuff That Actually Shows Up on Site
  • 185 kg full payload – four 50 kg bags no problem
  • 3143 mm horizontal reach – covers two pallets + infeed
  • 2200–2300 cycles/h with 60 kg load (real customer numbers)
  • Hollow wrist – hoses inside, never snag
  • IP67 wrist and J3 arm – flour, cement dust, wash-down ok
  • Can run in 4-axis mode for extra speed
Real Specs
Payload 185 kg
Reach 3143 mm
Repeatability ±0.07 mm
Cycle rate 2200 cycles/h (60 kg, 400-2000-400 mm)
Robot weight 1200 kg
Axes 4 (palletizing optimized)
Where They Work Non-Stop
  • 50 kg rice and sugar bags
  • Animal feed and grain mills
  • Cement and mortar bags
  • Chemical 25–50 kg sacks
Questions We Always Get

Q: Is 185 kg real?
A: Yes – full 185 kg at flange, customers run 160–170 kg tools all day.

Q: How many bags per minute?
A: 35–40 bags/min with 50 kg bags is normal.

Contact


Phone/WhatsApp/WeChat : +8615000725058
Email: edwardzhao@gbsxj.com

Other Heavy Palletizers
  • M-410iC/315 – 315 kg version
  • M-410iC/110 – smaller brother
  • M-410iC/500 – 500 kg monster
