The Techman Cobot Palletizing Solution is an intelligent and flexible automation system designed to perform palletizing, depalletizing, and layer stacking tasks in industrial environments. Powered by Techman’s collaborative robot technology integrated with vision systems and AI-assisted programming, this solution addresses the growing demand for fast, scalable, and safe pallet handling in logistics, warehousing, packaging, e-commerce, and manufacturing industries.

Techman cobots are built with human-robot collaborative safety, intuitive programming tools, and integrated vision, enabling deployment of palletizing workflows without extensive programming knowledge. The palletizing cobot can handle various product sizes, weights, and orientations, making it ideal for small-to-medium batch production as well as high-volume pallet operations.

• Collaborative palletizing robot for boxes, bags, cartons, and trays
• Integrated vision system for object detection and orientation
• AI-assisted path learning and workflow setup
• Multi-layer pallet stacking and pattern optimization
• Safe human-robot collaboration without heavy guarding
• Flexible mounting options for cell layout optimization
• Compatibility with conveyor systems and AGVs/AMRs
• Fast deployment with drag-and-drop programming
• Payload range options suitable for various product sizes
• Low maintenance with consistent repeatability and performance

Robot Model

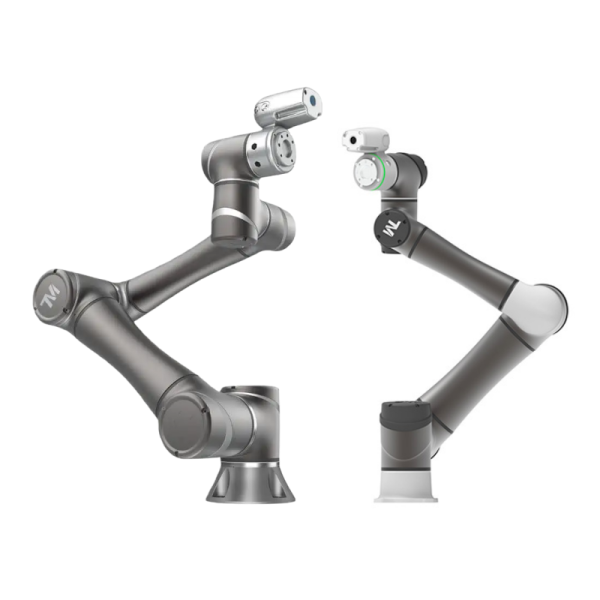

Techman collaborative robot series (TM models)

Payload Capacity

Varies by model (common options: 6 kg, 12 kg, 16 kg)

Reach

Typical models from 700 mm to 1300 mm depending on version

Repeatability

±0.1 mm or better depending on configuration

Degrees of Freedom

6 axes for flexible motion planning

Vision System

Built-in 2D/3D vision for pallet target detection and alignment

Programming

AI-assisted visual programming, drag-and-drop workflow tools

Safety

Collision detection, speed & separation monitoring, force/torque sensing

Connectivity

Ethernet, IO, fieldbus support via controller

Mounting Options

Floor mount, inverted, wall mount

Environmental Requirements

Standard industrial automation conditions

Accessories

Vacuum grippers, mechanical grippers, EOAT tool changers

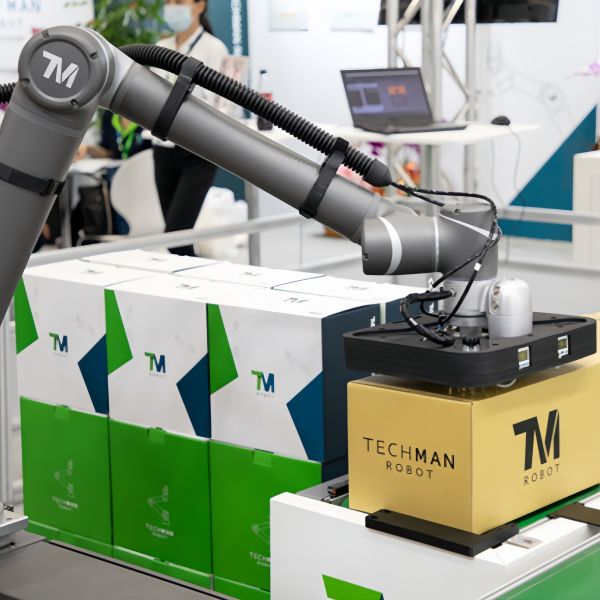

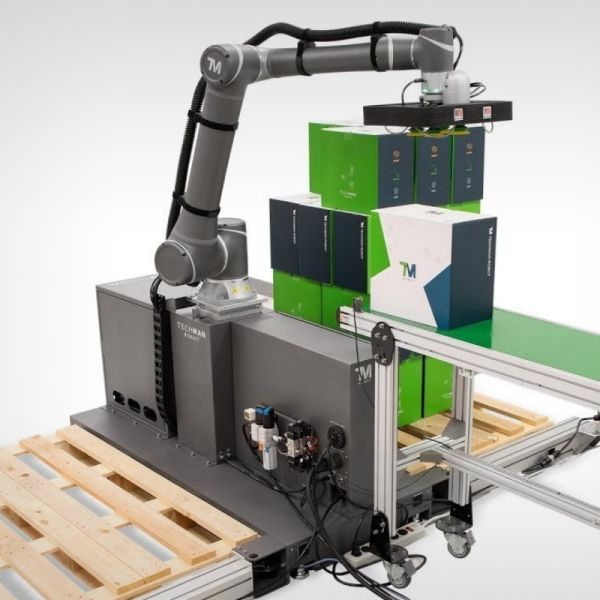

The Techman Cobot Palletizing Solution combines a collaborative robot arm, vision guidance, and AI-assisted programming software to automate palletizing tasks. The integrated vision system identifies product positions on conveyors or tables, while the cobot uses AI learning to quickly record and execute stacking patterns.

Workflow setup is simplified through an intuitive interface that allows operators to define pallet patterns, height limits, and layer orientations without writing code. The cobot then follows optimized trajectories to pick up products, orient them correctly, and stack them efficiently on pallets.

Safety monitoring ensures the cobot slows or stops when unexpected human contact is detected, enabling collaborative operation in shared workspaces.

• Industrial palletizing for finished goods
• E-commerce and logistics center pallet stacking
• Packaging line stacking and depalletizing
• Warehouse automation for cartons and crates
• Food and beverage pallet handling
• Pharmaceutical and consumer goods automation
• Part handling in small to medium batch production
• Integration with conveyors and AGVs for flexible automation

• Accelerates palletizing throughput and reduces labor cost
• Enables rapid changeover for mixed product batches
• Improves stacking consistency and pallet quality
• Full automation without heavy guarding or cages
• Simplifies programming and reduces deployment time
• Enhances safety with collaborative design features
• Scales easily from single robot to multi-robot cells
• Reduces workplace injuries from manual pallet handling

• Assess pallet footprint and robot placement
• Select cobot model based on payload and reach requirements
• Install robot mount and vision system above conveyor/pick station
• Attach appropriate end-of-arm tooling (vacuum or gripper)
• Configure vision targets and pallet stacking patterns
• Define layer orientation and height limits via software
• Test pick-and-place cycles and adjust path as required
• Deploy into full production mode

• Techman TM AI Collaborative Robot Arms
• Vision Expansion Kits for Cobot Palletizing
• End-of-Arm Gripper and Vacuum EOAT Kits
• AGV/AMR Integration Modules
• PLC and SCADA Connectivity Solutions
