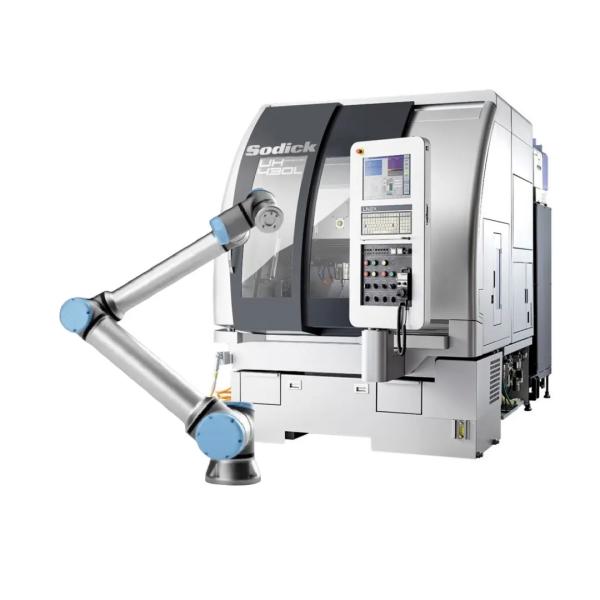

Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling
Specifications
Brand Name :
Universal Robot
Model Number :
UR10e
Place of Origin :
China
MOQ :
1
Price :
20000-30000
Payment Terms :
T/T
Supply Ability :
30PCS/30Day
Delivery Time :
According to requirement
Packaging Details :
wooden box
Payload (Kg) :
12.5 kg
Weight :
33.5 Kg
Reach :
1300mm
Footprint :
190mm
Degrees of freedom :
6 rotating joints
Certifications :
EN ISO 13849-1, PLd Category 3, and EN ISO 10218-1
IP classification :
IP54
Robot mounting :
Any Orientation
Operating Temperature Range :
0-50°C
Cable length robot arm :
M8 | M8 8-pin
Description
Specification
UH430L LN4X
Sodick's UH series, a pioneer in dynamic linear drives for machine tools, introduces a new era of high-speed linear machining centers. With over 50,000 linear machines' experience, it features linear drives in all axes. Unlike traditional separate rough and fine milling, this innovation integrates both passes in one mode. It employs a rapidly rotating, small-diameter tool for precision cutting at fine depths.
Fine Depth Milling: Small diameter tools minimize cusp (residual roughness), reducing milling resistance. Results in improved dimensional accuracy, surface finish, and tool life. High-Speed Milling: Reduces cycle times and overall machining period. Yields improved surface quality, multi-purpose tool usage, and smaller chip sizes for easy disposal. This technology eliminates the need for coolant; mist machining is also possible.
item
value
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, Other
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Bearing, Motor, Gear
Condition
New
Vertical Travel(mm)
1300 mm
Horizonal Travel(mm)
1300 mm
Place of Origin
China
Shanghai
Brand Name
Universal
Weight
33.5kg
Power
615W
Warranty
1 Year
Weight (KG)
33.5kg
Payload (Kg)
12.5 kg
Weight
33.5 Kg
Reach
1300mm
Footprint
190mm
Degrees of freedom
6 rotating joints
Certifications
EN ISO 13849-1, PLd Category 3, and EN ISO 10218-1
IP classification
IP54
Robot mounting
Any Orientation
Operating Temperature Range
0-50°C
Cable length robot arm
M8 | M8 8-pin
