Specifications
Place of Origin :
Zhejiang, China
Brand Name :
GOMELONG
Model Number :
DDS5558
Display Type :
Digital Only
Phase :
Single Phase
Measuring Energy Range :
000000---99999.9kwh
Accuracy Class :
1.0 or 2.0
Output Voltage :
120V, 240V
Operating Temperature :
-20℃-50℃
Dimensions :
235mm*176mm*67mm
Max current :
100A
Standard :
IEC 61036
Display :
LCD Display
Color :
White
Communication :
RS 485
Current :
CL100(100A)
OEM :
Allowed
Rated frequency :
50 Or60 Hz
Power :
1.5W
Certificate :
CE ISO9001
Packaging Details :
In exporting packing
Port :
Ningbo
Supply Ability :
100000 Piece/Pieces per Month
Price :
$7.50/Pieces >=1 Pieces
Description
MASS_APP4_1159_BEGIN

DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA

MASS_APP4_1159_END

DDS5558 200A Single Phase 3g Electronic ANSI Socket Meter

Product Overviews

DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA

rDDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIADDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIADDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIAound hour meter

Application

Model DDS5558 single-phase ANSI meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC&ANSI standard.

Features

- Kwh/MD/V/A display, Back-up battery

- Comply with ANSI C12.1/ ANSI C12.10/ANSI C12.18/ ANSI C12.19/ ANSI C12.20

- Maximum demand measurement and resetting

- Bidirectional measurement, Reverse energy calculated into forward

- Current flow direction indication

- LCD simulation disk

Technical Parameters

Specification

DDS5558/1S

DDS5558/2S

Accuracy

Active

Class1.0

Class1.0

Voltage

Rated

120/240V

120/240V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency

50/60Hz

50/60Hz

Current

Range

CL100,CL200

CL100,CL200

Starting Current

0.4%Ib

0.4%Ib

Constant

Active

Kh1.0/Kh/1.6/Kh2.0

Kh1.0/Kh/1.6/Kh2.0

Form

1S

2S

Display

Type

LCD

LCD

Digit

5+0/5+1/6+1

5+0/5+1/6+1

Power Consumption

Voltage Circuit

≤1.5W

≤1.5W

Current Circuit

≤2VA

≤2VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-25℃~+55℃

-25℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity

≤95%

≤95%

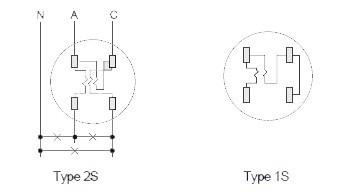

Dimension&wiring Diagram

DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIADDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA
