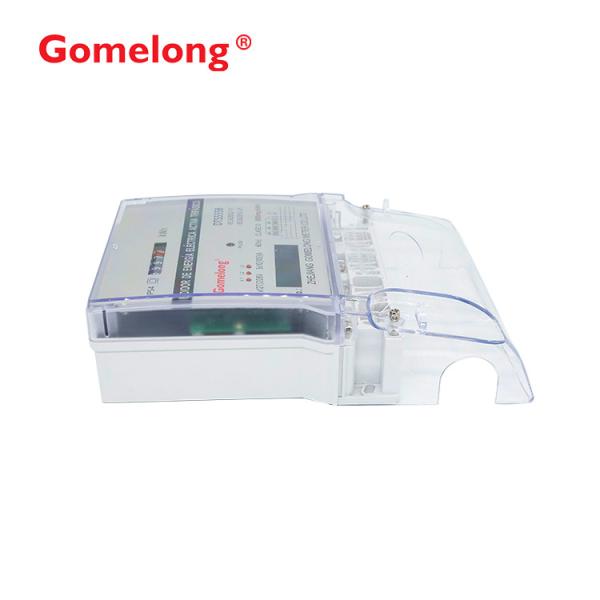

Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Three phase four wire electronic Kwh meter energy meter with Rs485
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Gomelong
Model Number :
DTS5558-B
Display Type :
Digital Only
Phase :
Three Phase
Measuring Energy Range :
9999999.9kWh
Accuracy Class :
Class 1
Output Voltage :
230/400V
Operating Temperature :
-25℃ to +55℃
Dimensions :
92*70*65mm
Product name :
Three Phase Electronic KWh Meter
Display :
LCD
Rated current :
5(100)A/5(200)A/15(100)A/30(200)A
Frequency :
50-60HZ
Certificate :
CE ISO9001
Rated voltage :
3*220V/380V
Function :
Energy Consumption Data Record
Warranty :
Two Years
OEM :
Allowed
Communication :
RS485 Port MODBUS-RTU Protocol
Packaging Details :
export stand package.one meter in one box,and ten boxes in one carton
Port :
ningbo/shanghai
Supply Ability :
1200 Set/Sets per Day
MOQ :
10 Sets
Price :
$16.00 - $18.00/Sets
Description
Product Description

Three phase four wire electronic Kwh meter energy meter with Rs485

parameter

Module DTS5558
Standards IEC62052,IEC62053
IEC62056
Rated voltage AC:3X100/173V~3X127/220V
3X220/380V~3X240/415V
CT:3X57.7/100V~3X240/415V
Current Basic current AC:5A/10A/15A/20A; CT:1A/5A
Maxium current AC:100A; CT:10A
Starting current AC:≤0.4%Ib; CT:≤0.1%In
Accuracy Class AC: Active C/1,Reactive :2
CT: Active C/0.2S/0.5S
Reactive: 1/2
power consumption voltage circuit ≤1.5W,10A
current circuit ≤1VA
Frequency 50/60HZ
Impulse constant AC:1000imp/kwh, AC:1000imp/kvarh
Communications Optical,RS485,PLC ,PLC/RF
commuication protocol DL/T645,IEC62056-21
Display LCD:8 digits;register:6 digits
Ingress protection IP54
Operating temperature -40℃ ~+70°C
