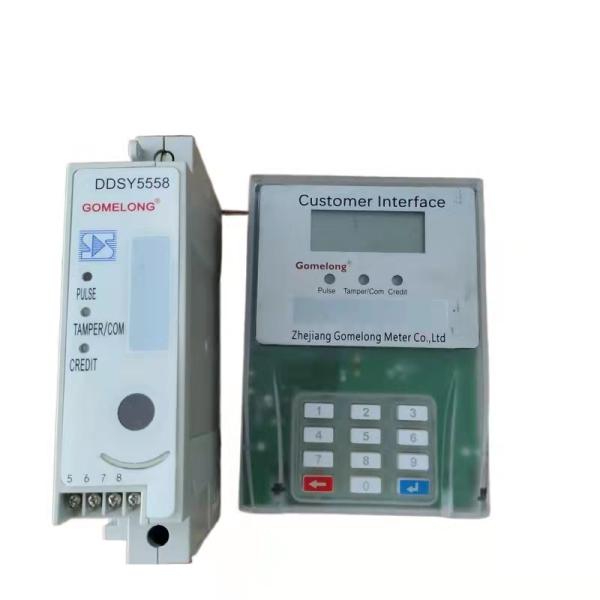

Single phase Split keypad prepayment Electronic energy meter
Single phase Split keypad prepayment Electronic energy meter
Single phase Split keypad prepayment Electronic energy meter
Single phase Split keypad prepayment Electronic energy meter
Single phase Split keypad prepayment Electronic energy meter
Single phase Split keypad prepayment Electronic energy meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Gomelong
Model Number :
0ML01
Display Type :
Digital Only
Phase :
Single Phase
Measuring Energy Range :
0-999999.99 KWh
Accuracy Class :
Class1
Output Voltage :
110V/220V
Operating Temperature :
-20 ~+55
Dimensions :
100*148.*41mm
Product name :
Single Phase Electronic KWh Meter
Display :
LCD Display
Rated current :
5(100)A
Frequency :
50/60Hz
Certificate :
CE ISO9001
Features :
Measures KWh
Warranty :
Two Years
OEM :
Allowed
Power consumption :
5VA
Measure :
Active Energy Consumption
Packaging Details :
export stand package.one meter in one box,and ten boxes in one carton
Port :
ningbo/shanghai
Supply Ability :
1200 Set/Sets per Day
MOQ :
10 Sets
Price :
$27.00/Sets >=10 Sets
Description
Product Description

Product Features

  • Forward/reverse and combined active energy
  • Switchable between prepaid and post -paid modes as per need
  • pre-alarm and alarms for low remaining energy with configurable thresholds
  • led alarm for tempers
  • load control
  • multi-tariff(optional)
  • Various COM options between MCU and CIU

Specification of single phase split keypad prepayment energy meter
Model number DDSY5558 Single phase Split keypad prepayment Electronic energy meter
Encryption STS-20 Digitos
Accuracy active class 1.0
reactive class 2.0
Charge <2W
Comsumption indicator 1.000 pulsos/kwh
Voltage rated 220V AC
range 0.8Un-1.15Un
Frequency 50Hz
Current Min current 20mA
Basic current 5A
Max current 80A
Weight <820g
Dimensions variable but not exceeding
260mmx148mmx55mm
Communoication Interface Optical/PLC/RF,SCSSCAAA9
Protocol IEC62056-21
Temperature working temperature 10℃~+55℃
storage temperature 25℃~+70℃
Humidity ≤95%
Protection IP54
Lifespan 15 Anos
