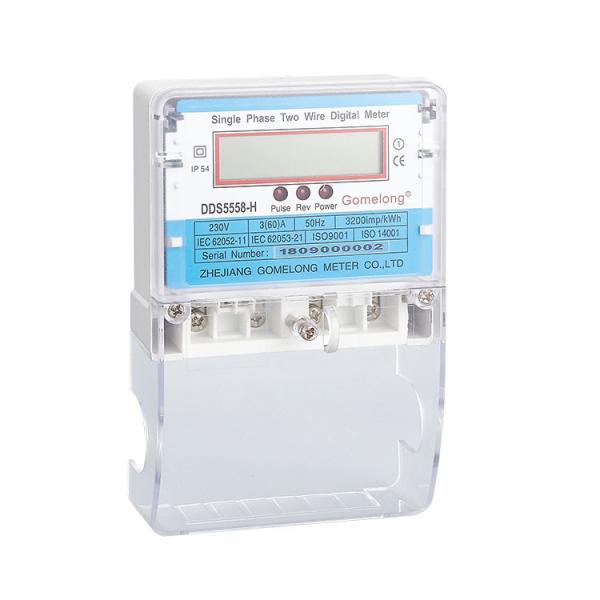

2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
GOMELONG
Model Number :
DDS5558
Display Type :
Analog and Digital
Phase :
Single Phase
Measuring Energy Range :
00000.0---99999.99Kwh
Accuracy Class :
Class1
Output Voltage :
110V,220V,230V,240V
Operating Temperature :
-45℃-55℃
Dimensions :
102mm*94mm*48mm
Color :
white
Max Current :
100A
Frequency :
50HZ/60HZ
Rated current :
5(60)A
Type :
Energy Digital Kwh Meter
constant :
1600imp/kwh
Name :
single phase digital energy meter
Certificate :
ISO9001
Material :
full pc
OEM :
Allowed
Packaging Details :
standard export package,20pcs one carton
Price :
$4.50 - $8.00/Pieces
Description
MASS_APP4_1159_BEGIN

2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display

MASS_APP4_1159_END

2019 New DDS5558 Single Phase Two Wire Electricity Energy Meter Lcd Display

Product Description

2022 New DDS5558 Single Phase Two Wire ultrasonic Electricity Energy Meter Lcd Display

Application

Model DDS5558 single phase electronic active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC

62053-21.

Features

1. Bidirectional measurement, Reverse energy calculated into forward

2. Indication: Pulse, power, reverse current

3.Full PC

Technical parameters

Specification DDS5558
Accuracy Active Class1.0
Reactive
Voltage Rated 110/120/220/230/240V
Range 0.9Un~1.1Un
Limit 0.8Un~1.2Un
Frequency 50/60Hz
Current Range 5(20)A ,5(25)A ,5(30)A,5(32)A
Starting Current 0.4%Ib
Constant Active 2000imp/kWh
Reactive \
Display Type LCD
Digit 6+1
Power Consumption Voltage Circuit ≤0.8W,10VA
Current Circuit ≤4VA
Communication Interface \
Protocol
Temperature Working Temperature -45℃~+55℃
Storage Temperature -40℃~+70℃
Humidity ≤90%
Protection IP54

Dimension&Wiring Digram
