5MHz Pocket Handheld Ultrasound Scanner For Mobile Cardiac Diagnosis
5MHz Pocket Handheld Ultrasound Scanner For Mobile Cardiac Diagnosis
5MHz Pocket Handheld Ultrasound Scanner For Mobile Cardiac Diagnosis
5MHz Pocket Handheld Ultrasound Scanner For Mobile Cardiac Diagnosis
Specifications
Brand Name :
Golead
Model Number :
Lite31P
Certification :
CE, ISO13485
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
1,000 units per month
Delivery Time :
2 working days
Packaging Details :
carton box
Product Name :
5MHz Pocket Handheld Ultrasound Scanner for Mobile Cardiac Diagnosis
Scanning mode :
electronic phased array
Element :
128
Frequency :
2/3.6/5MHz
Cineloop :
100 frames
Language :
English
Display mode :
B/C/M
Image storage format :
DICOM, BMP, PNG and JPEG
Battery :
3000 mAh, maximum 2-hour continuous use
N/W :
220g
G/W :
480g
Warranty :
1 year
Description

5MHz Pocket Handheld Ultrasound Scanner for Mobile Cardiac Diagnosis

DESCRIPTION

Ultrasound, also known as echocardiography, is commonly used in the diagnosis and management of various cardiac conditions. Some of the applications of ultrasound in cardiology include:

Diagnosis of heart conditions: Ultrasound is used to produce images of the heart and its structures, allowing doctors to identify and diagnose heart conditions such as valvular heart disease, coronary artery disease, and cardiomyopathy.

Assessment of heart function: Ultrasound can also be used to assess the function of the heart, including its ability to pump blood and the overall health of the heart muscle.

Guidance during procedures: Ultrasound can be used to guide certain procedures, such as cardiac catheterization or heart surgery.

Monitoring treatment: Ultrasound can be used to monitor the effectiveness of treatment for heart conditions, such as the response to medication or the healing process after surgery.

Evaluation of congenital heart defects: Ultrasound can be used to detect and evaluate congenital heart defects in infants and children.

Overall, the application of ultrasound in cardiology has greatly improved the diagnosis, management, and treatment of heart conditions, leading to better patient outcomes and quality of life.

PARAMETERS:

​​

Scanning mode Electronic Phased Array with 128 elements
Display mode B/C/M
Central frequency 3.6MHz
Depth 18.9cm
Zoom 4 times
Beams 16 parallel
Image Adjust Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer
Measure Length, Area, Circumference, Angle, Trace
Gray 256
FPS 8-30
Packing Dimension 255*190*60mm
Working System iOS, Android


APPLICATIONS

Cardiac

CONTENT INCLUDED

Wireless Handheld Ultrasound Scanner – Lite 31P Cardiac Transducer

Internal Battery

Charging Cable

User Manual

Wireless Charger

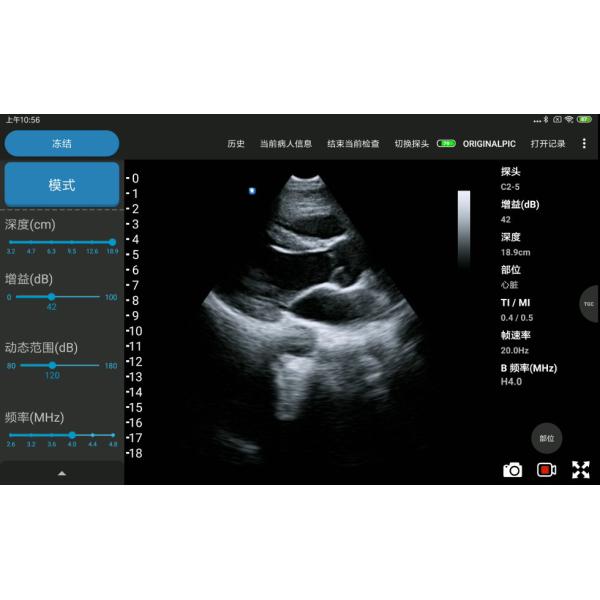

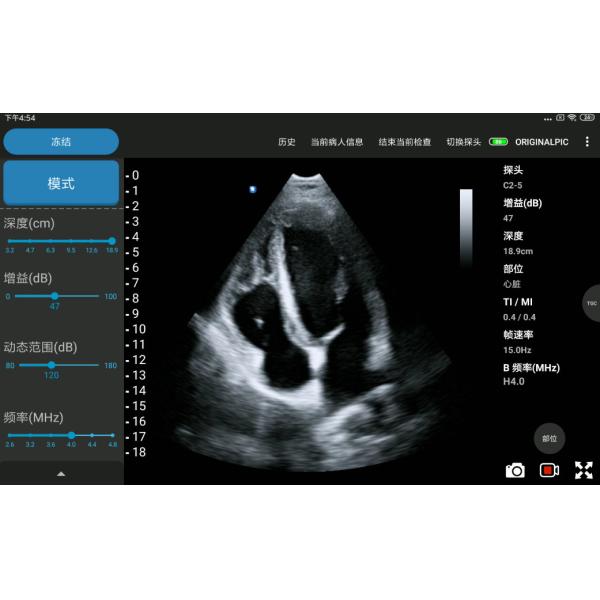

IMAGE GALLERY

5MHz Pocket Handheld Ultrasound Scanner For Mobile Cardiac Diagnosis5MHz Pocket Handheld Ultrasound Scanner For Mobile Cardiac Diagnosis
