Convex Probe Handheld Veterinary Ultrasound Machine B/PWD
Convex Probe Handheld Veterinary Ultrasound Machine B/PWD
Specifications
Brand Name :
Golead
Model Number :
UC5-2E
Certification :
CE, ISO13485
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
1,000 units per month
Delivery Time :
2 working days
Packaging Details :
carton box
Product name :
Portable Veterinary Ultrasound Machine Convex Probe for Swine
Element :
80
Display mode :
B, PWD
Frequency :
2.0MHz~5.0MHz
Battery :
no
Weight :
350g
Application :
Swine
Connector :
Type-C or Type-A
Gray scale :
256
Warranty :
15 Months
Description

Portable Veterinary Ultrasound Machine Convex Probe for Swine

Product Interview

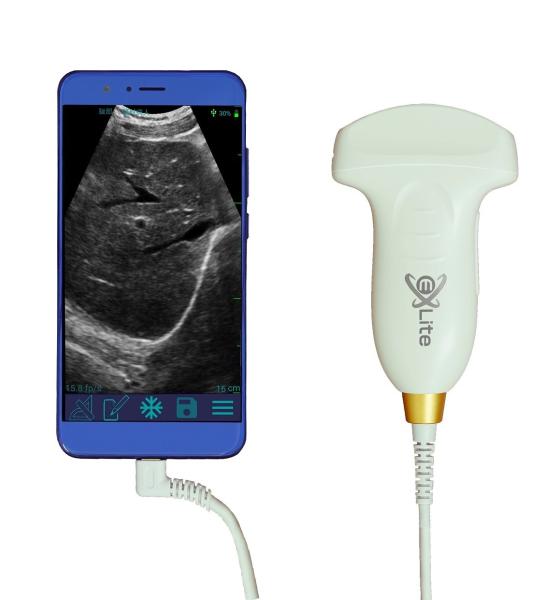

Veterinary Ultrasound Machine UC5-2E has a frequency range of 2-5MHz and 80 elements, making it ideal for abdominal and reproductive system examinations in swine. The B/PWD imaging mode provides both black and white and pulsed wave doppler imaging, making it easier to diagnose and evaluate blood flow in the examined area.

The UC5-2E probe is lightweight, weighing only 180g, and has a low power consumption of less than 1.7W, ensuring efficient usage and longer battery life. The probe provides a depth of up to 24cm, allowing for accurate imaging of internal organs and tissues. The frame rate of 11-13 fps provides real-time imaging, making it easier to visualize moving structures.

The PA10U swine model is compatible with both type-C and type-A USB connectors and can be used with Android or Windows operating systems. The 15-month warranty provides additional peace of mind for veterinary professionals.

Overall, the PA10U swine model with the UC5-2E probe is an excellent option for veterinary professionals looking for a reliable and comprehensive ultrasound system for swine examinations.

Parameters

Scanning mode electronic convex array
Display mode B/PWD
Frequency 2/3.5/5MHz
Depth 6 to 24cm
Weight 180g
Power consumption <1.8W
Image to screen ratio >85%
Frame rate 15FPS
Gray 256
Probe cable length1 1.7m
USB cable length 1.6m
Working system Android or Windows
Connector type-C or type-A

Applications

Swine reproduction

Standard configuration

Veterinary Ultrasound Machine - Curvelinear Probe UC5-2E
