Disposable Electronic Hysteroscopy Aoviding Cross Fnfection 100 ° View Angle

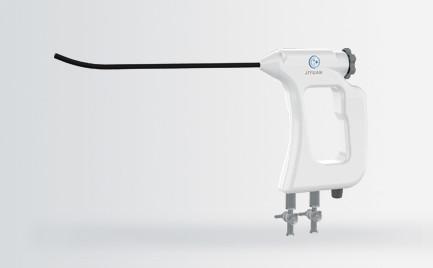

The Disposable Electronic Hysteroscope is composed of a handle, an insertion portion (including a bending portion), an operation portion, water inlet and outlet connectors, and cables.
The product is intended to collect and transmit images to the main unit and display them on the connected monitor during the endoscopic surgery in the hospital.

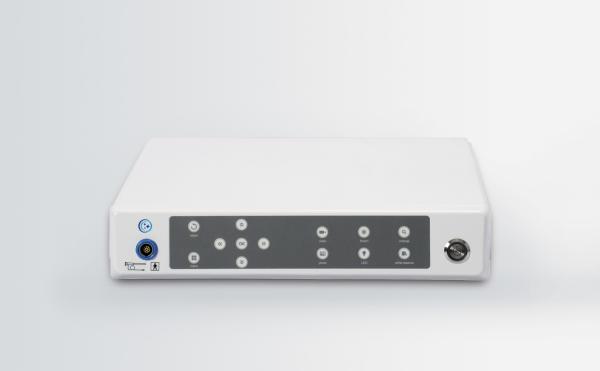

Disposable Electronic Hysteroscope: the endoscope is an electronic hysteroscope (models JY-DEH-001, JY-DEH-002 and JY-DEH-003), and these three models are developed by us. The structure and composition of thesethree models are same, and the only difference is that the insertion tube of JY-DEH-001 is black, that of JY-DEH-002 is gray, and that of JY-DEH-003 is blue. It enters the uterine cavity through the cervix and is used for diagnosis and assisting the surgery. This product needs to work with the medical image processor which is independently developed by the company.

Specification

Technical parameters

Working conditions

Ambient temperature: 10℃~40℃;

Relative humidity: 30%~75% (non-condensing);

Atmospheric pressure range: 700~1060hPa;

Power requirement: 100~240VAC , 50/60Hz.

The imaging of electronic hysteroscope mainly depends on the micro image sensor

equipped at the front end of the mirror body, which converts light energy into electrical

energy, and then "reconstructs" the high-definition, color realistic image displayed on the

monitor screen through the image processor.

The field of view of hysteroscope is 100°, and its limit deviation is ±10%.

Resolution: 3.51Lp/mm, L=10mm.

Brightness response characteristics: the electro-optic conversion function of the

output brightness of the adaptive monitor adopts the sRGB encoding mode in IEC

61966-2-1:1999 standard.

The effective depth of field of hysteroscope is 3-50mm

Features:

Insertion Diameter 4.8mm, protect the fertility
View angle 100 ° plus 180 ° rotation left and right, wide field of vision provides accurate positioning
Cannula tip design: 16°angled
Ergonomics designed handle
180g in Weight, suitable for long time application
Unique design to prevent backflow
