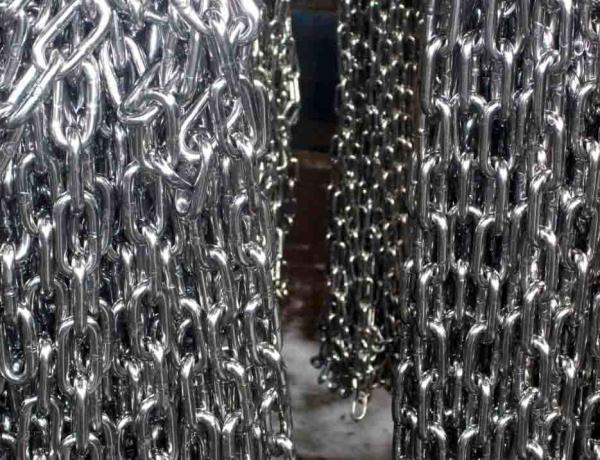

IACS Approved Marine Studless Open Link AM1, AM2, AM3 Stainless Steel Anchor Chain
IACS Approved Marine Studless Open Link AM1, AM2, AM3 Stainless Steel Anchor Chain
IACS Approved Marine Studless Open Link AM1, AM2, AM3 Stainless Steel Anchor Chain
IACS Approved Marine Studless Open Link AM1, AM2, AM3 Stainless Steel Anchor Chain
Specifications
Brand Name :
GH
Model Number :
Anchor Chain
Certification :
CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
Place of Origin :
CHINA
MOQ :
1 Knots
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000 Knots Per Month
Delivery Time :
5-30 Days
Packaging Details :
Naked
Material :
AM1:Q235 AM2:CM490 AM3:CM690
Surface treatment :
primary color, black paint
Description

The studless open link anchor chains are approved by CCS, BV, ABS, DNV-GL, LR, NK, KR, RMRS, IRS etc.

It can be black paint and galvanized according to the client's requirement.

Chain diameter/mm Link size/mm BM1 BM2 BM3 Chain diameter/mm Link size/mm BM1 BM2 BM3
DФ Outer length L × outer width B Breaking load/KN Breaking load/KN Breaking load/KN Outer length L × outer width W Breaking load/KN Breaking load/KN Breaking load/KN
12.5 75×45 57.81 82.6 112.8 42 252×151.2 652.68 915.3 1273.6
14 84×50.4 69.93 101.9 141.51 44 264×158.4 716.32 999.6 1398
16 96×57.4 94.72 132.3 184.83 46 276×165.6 782.92 1097.6 1527.8
17.5 105×63 113.31 157.78 221.1 48 288×172.8 852.48 1195.6 1663.5
19 114×68.4 133.57 187.2 260.64 50 300×180 926.09 1293.6 1805
20.5 123×73.8 155.49 217.27 303.42 52 312×187.2 1000.48 1395.26 1952.28
22 132×79.2 179.08 250.9 349.4 54 324×194.4 1078.92 1504.66 2105.36
24 144×86.4 213.25 298.9 415.8 56 336×201.6 1160.32 1618.18 2264.2
26 156×93.6 250.12 350.8 488 58 348×208.8 1244.68 1735.82 2428.8
28 168×100.8 290.08 406.7 566 60 360×216 1332 1857.6 2599.2
30 180×108 333 467.5 649.8 62 372×223.2 1422.28 1983.5 2775.36
32 192×115.2 378.88 531.2 739.3 64 384×230.4 1515.52 2113.54 2957.32
34 204×122.4 427.72 599.8 834.6 66 396×237.6 1611.72 2247.7 3145.04
36 216×129.6 479.52 672.3 935.7 68 408×244.8 1710.88 2385.98 3338.52
38 228×136.8 534.28 748.7 1042.5 70 420×252 1813 2528.4 3537.8
40 240×144 592 829.1 1155.2
