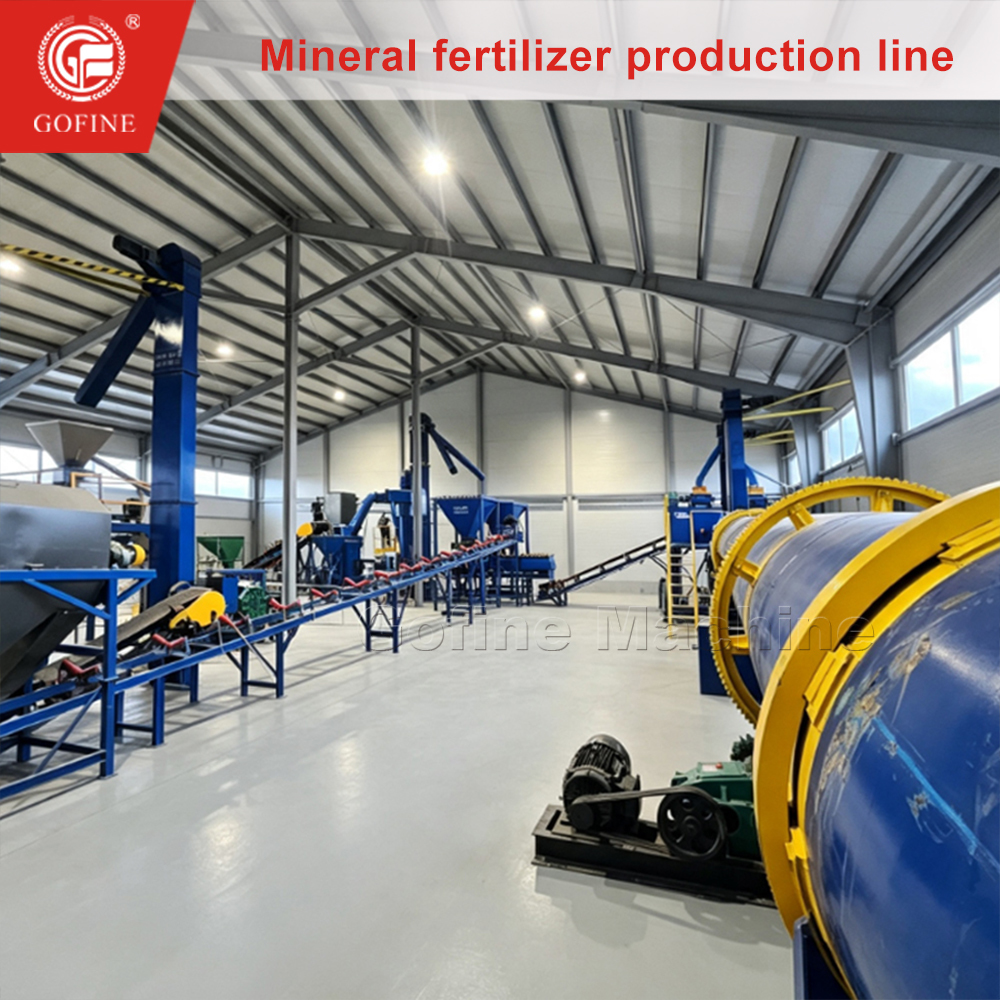

10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash
10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash
Specifications
Model Number :
GFDL-1
Capacity :
3-5T/H
Supply Ability :
15Sets/Month
Pellet Size :
2-8mm Granules
Payment Terms :
L/C,Western Union,T/T,MoneyGram
Granules Shapes :
Spherical Or Oblate Granules
MOQ :
1
Delivery Time :
1-3Sets/15days
Packaging Method :
Automatic Packaging Machine, Manual Packaging Machine
Price :
$12000~16000
Control System :
PLC Control System
Packaging Details :
plywood case
Certification :
CE
Product Name :
Inorganic Fertilizer Pelletizer Machine
Place of Origin :
China
Usage :
One Extrusion Granulation Method
Brand Name :
Gofine
Customization :
Available According To Customer's Specific Requirements
Description
10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash

Unlike standard organic or chemical fertilizer setups that require liquid binders and massive rotary drying drums, the 10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash is built specifically for large-scale dry mineral compaction. Potash powders (potassium chloride, potassium sulfate, and sylvinite) are notoriously abrasive and moisture-sensitive; this plant bypasses liquid additives entirely, leveraging high-tonnage mechanical hydraulic forces to compact fine potash salts directly into solid, uniform granules at ambient temperature.


This heavy-industrial engineering line integrates a complete closed-loop process: automated raw material dosing, high-torque horizontal mixing, synchronized multi-stage roller presses, rotary crushing and sizing screens, automated oversize/undersize recirculation elevators, and a semi-automatic packing system. By removing thermal dryers and coolers, the plant reduces overall energy consumption by up to 40% and drastically shrinks the factory footprint. As a dedicated factory supplier, Gofine Machine equips the core rollers with specialized anti-corrosive, work-hardening alloy sleeves, guaranteeing continuous 24/7 high-volume operation without thermal degradation or material caking.

Technical Features & Advantages
  • Feeding & Compression: Finely ground DAP powder is precisely fed between two counter-rotating rollers
  • Densification: Mechanical pressure compacts material into a solid sheet, creating natural inter-particle bonds
  • Granulation: Dense flake is broken down into uniformly sized granules
  • Recycling: Fines and undersized particles are automatically recycled, achieving near 100% yield
10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash
Key Applications & Material Compatibility
  • Soil Conditioner Granulation: Gypsum powder, calcium carbonate, dolomite
  • Agricultural Gypsum for soil structure improvement
  • Organic-Mineral Blends for comprehensive soil improvement
  • Secondary Nutrient Fertilizers containing magnesium, sulfur, and calcium
  • Customized soil amendment formulations
10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash
Technical Parameters
Feature Specification
Type Granulator
Pellet Size 2-8mm Granules
Control System PLC Control System
Working Method Dry Granulation
Customization Available According To Customer Requirements
Working Principle
The double-roll extrusion granulation production line ensures efficient processing and consistent product quality through these key components:
  • Automatic batching system with remote monitoring for precise material proportioning
  • Conveying system with dust prevention for material transport
  • Crusher for achieving required particle size
  • Mixer for uniform material blending
  • Double-roll extrusion granulator for additive-free granule production
  • Granule shaping machine for polishing granules
  • Screening machine for quality control and recycling
  • Packing system for final product handling
10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash 10 T/H Dry Extrusion Fertilizer Granulation Plant for Potash
Customization Options
  • Brand: Gofine
  • Model: GFDL-1
  • Origin: China
  • Certification: CE
  • Capacity: 3-5T/H
  • Delivery: 1-3 Sets/15 days
  • Packaging: Plywood case
Support and Services
Our comprehensive support package includes:
  • Installation guidance and setup support
  • Operator training programs
  • Troubleshooting assistance
  • Regular maintenance services
  • Access to technical experts
Frequently Asked Questions
What is the brand name of the production line?
The brand name is Gofine.
What is the model number?
The model number is GFDL-1.
Where is the production line manufactured?
The product is manufactured in China.
What certifications does the product have?
The product is CE certified.
