Lightweight 3D Gaussian Splatting PortalCam Spatial Camera Photorealistic Models

Specifications

Brand Name :

TBNET&XGRIDS

Model Number :

PortalCam

Certification :

CE,ISO

Place of Origin :

China

MOQ :

1set

Price :

Payment Terms :

T/T

Supply Ability :

50 sets per Month

Delivery Time :

10-15 works days

Body Weight :

870g (1.9 lbs) without tripod

Dimensions :

130mm × 90mm × 77mm (5.1 × 3.5 × 3.0 in)

Laser Classification :

Class 1 / 940nm

Camera Configuration :

4-camera array 2 × Fisheye, 2 × Front

Description

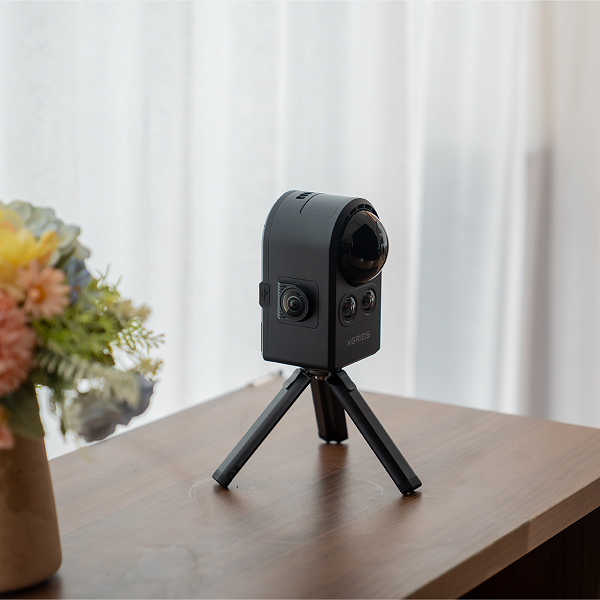

PortalCam - The First True Spatial Camera

PortalCam is the first handheld device that captures reality as interactive 3D environments using breakthrough 3D Gaussian Splatting technology. It combines LiDAR, a four-camera array, and automated processing to create photorealistic spatial models you can walk through, edit, and share across platforms.

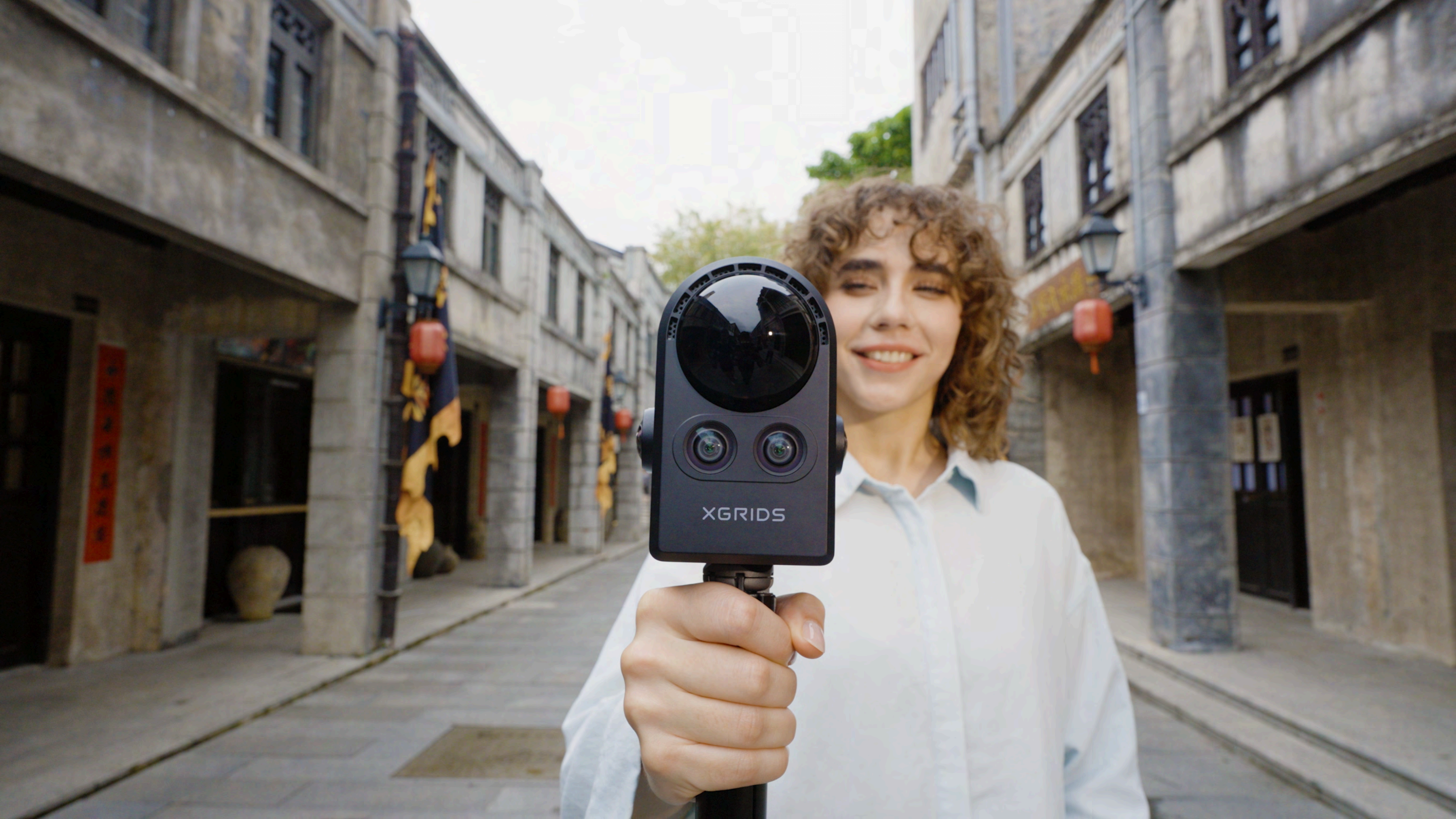

Ultra-portable

Lightweight at <900g for easy handheld operation

3DGS Native

Built on breakthrough 3D Gaussian Splatting technology

Mobile Capture

Portable scanning for on-the-go 3D capture

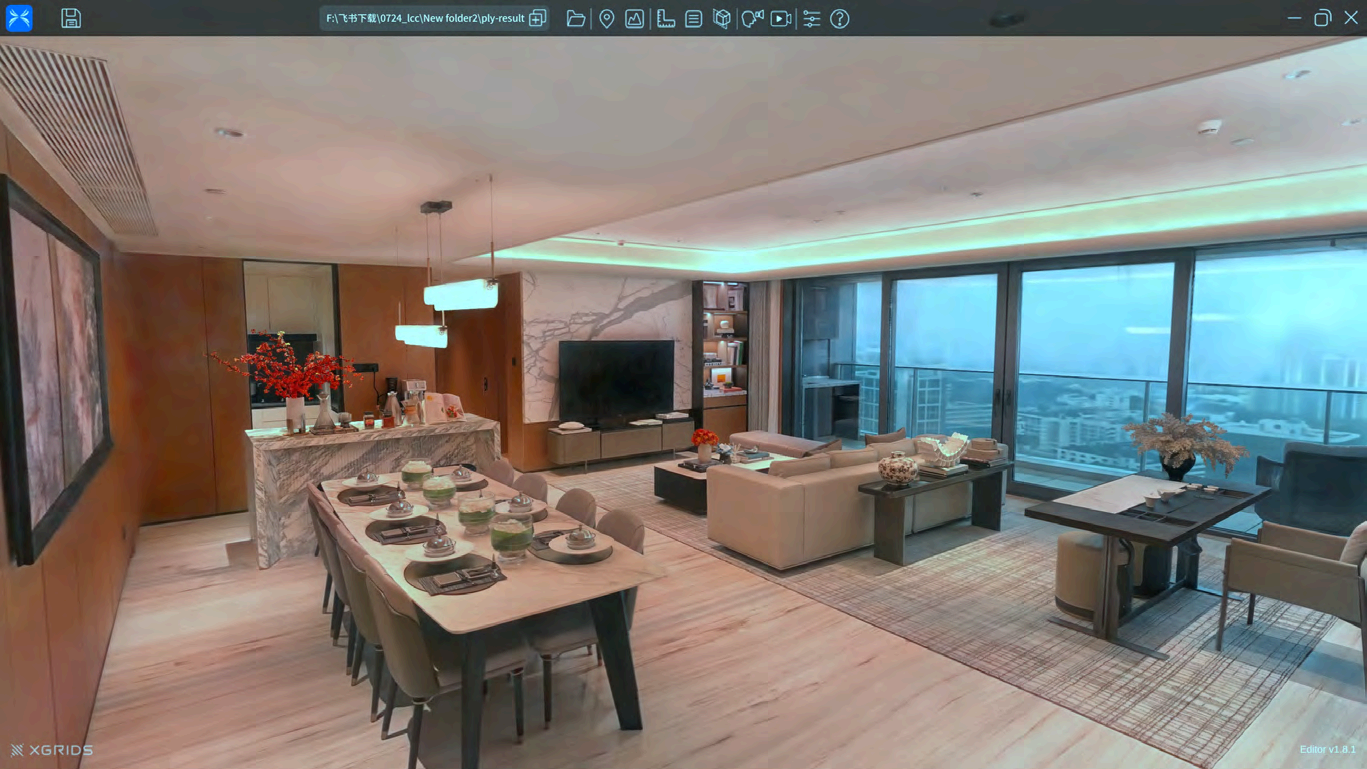

Photorealistic Models

High-fidelity 3D reconstructions with true-to-life detail

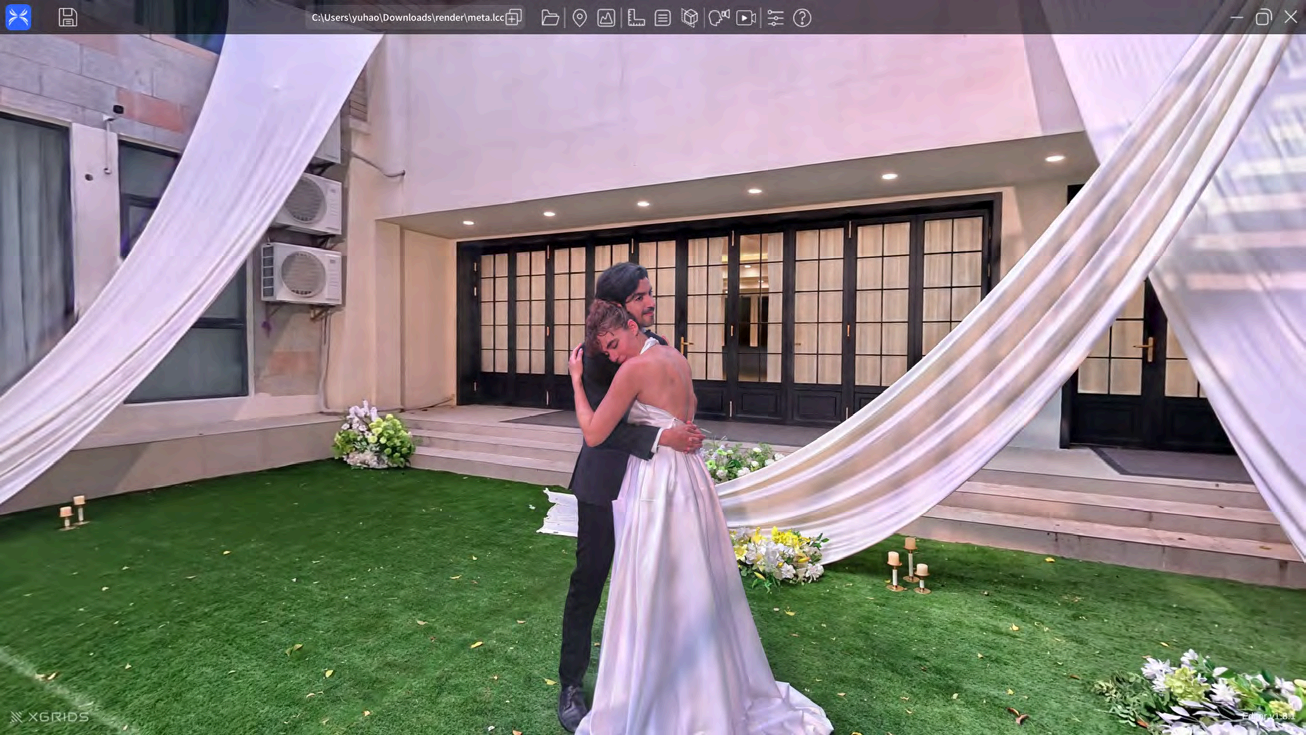

Cinematic Quality

Film-grade visual fidelity with true-to-life lighting, textures, and materials

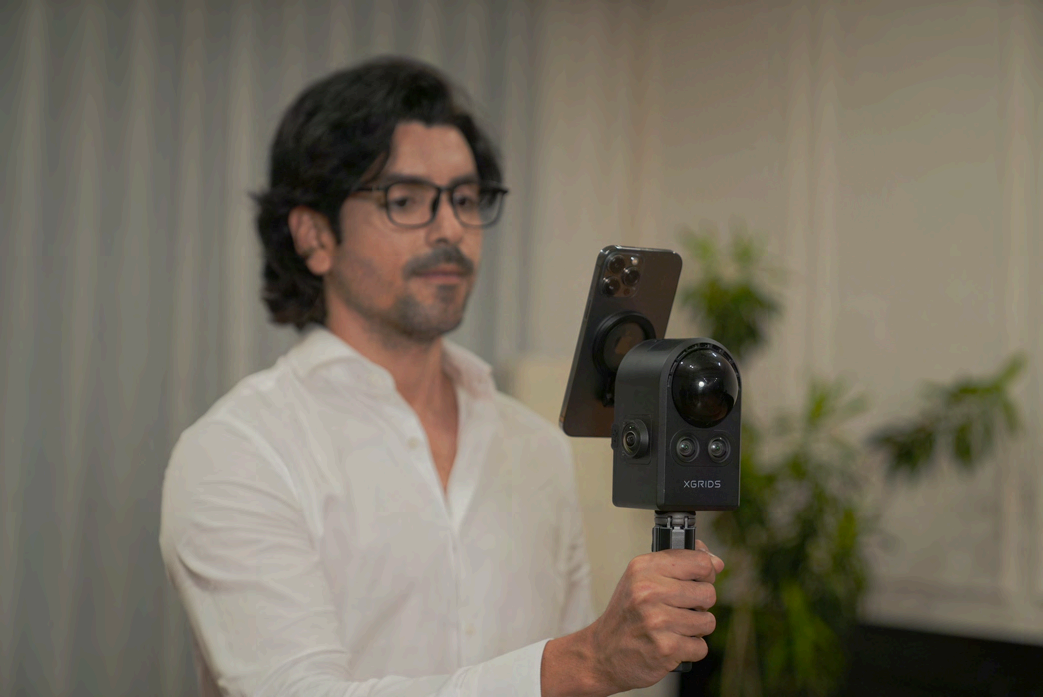

One-Touch Simplicity

Smartphone-simple operation—scan 100 m² (1,067 sq ft) in 10 minutes at walking speed

Detail to Distance

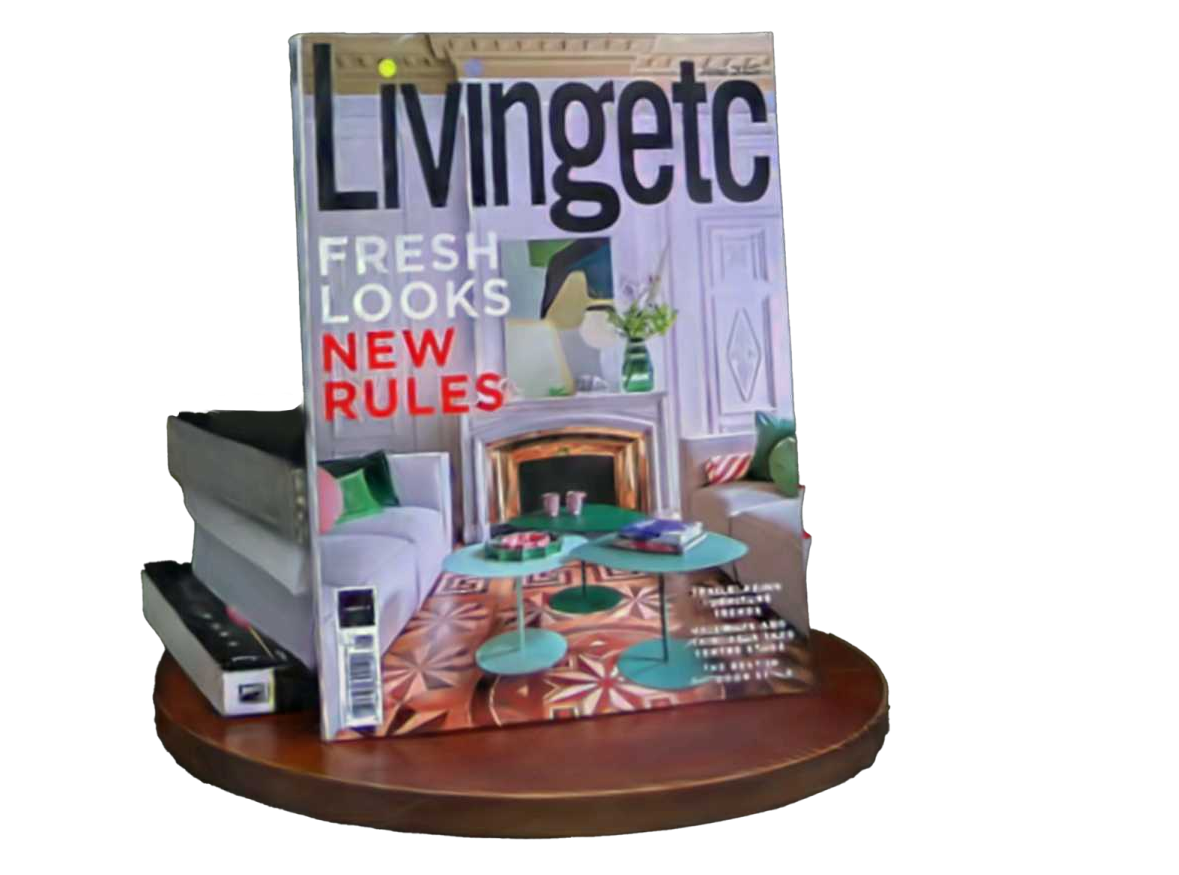

Replicate everything from 2 mm text to 1,000 m² parks in one seamless 3D model

Create, Share, Experience

Export to Unreal, Unity, web, and VR platforms via SDKs. Built-in cloud sharing for instant collaboration

Walk & Scan

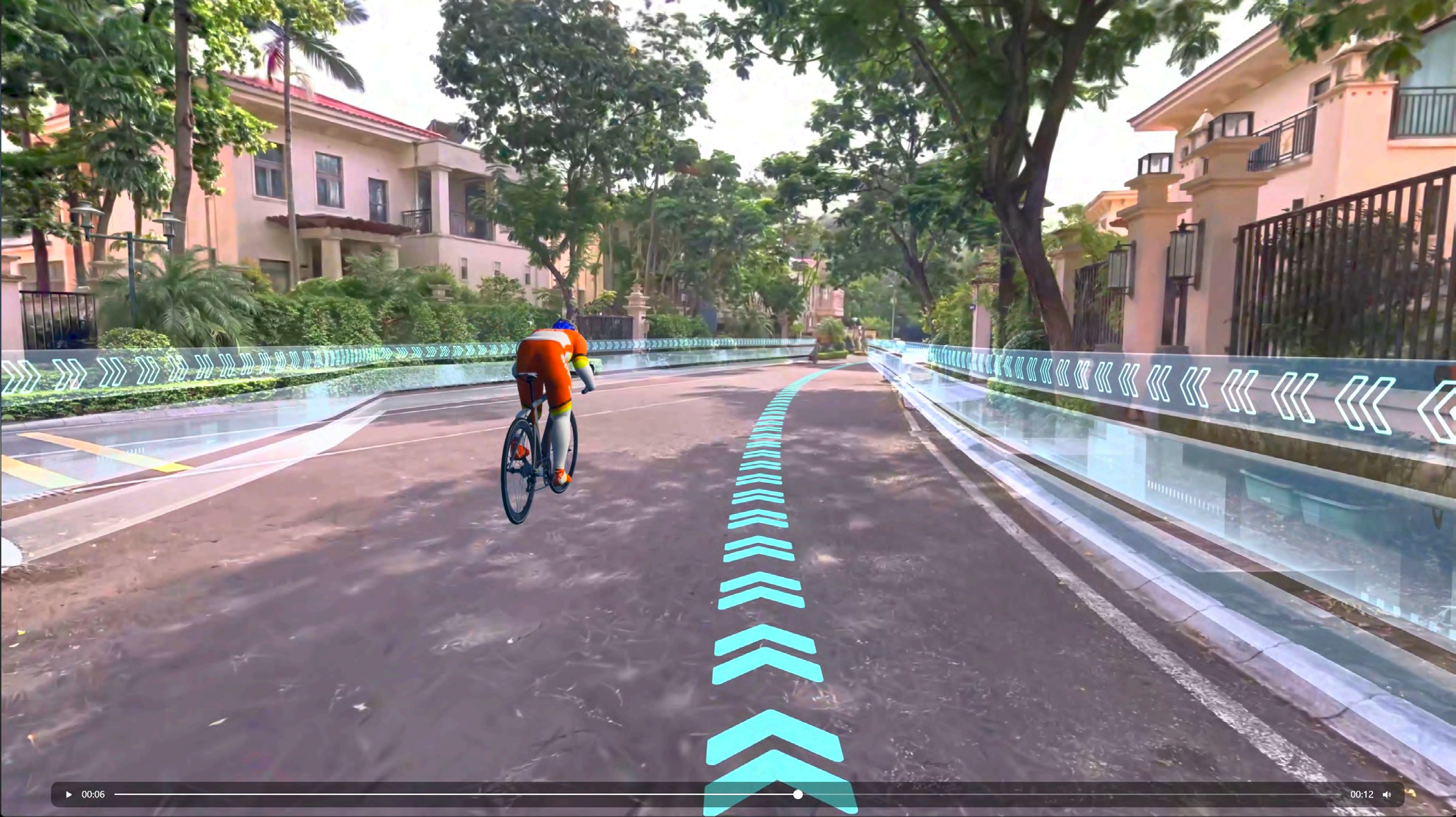

Walk through any space with PortalCam for automatic 3D capture

Automated Processing

Advanced algorithms automatically generate photorealistic 3D models

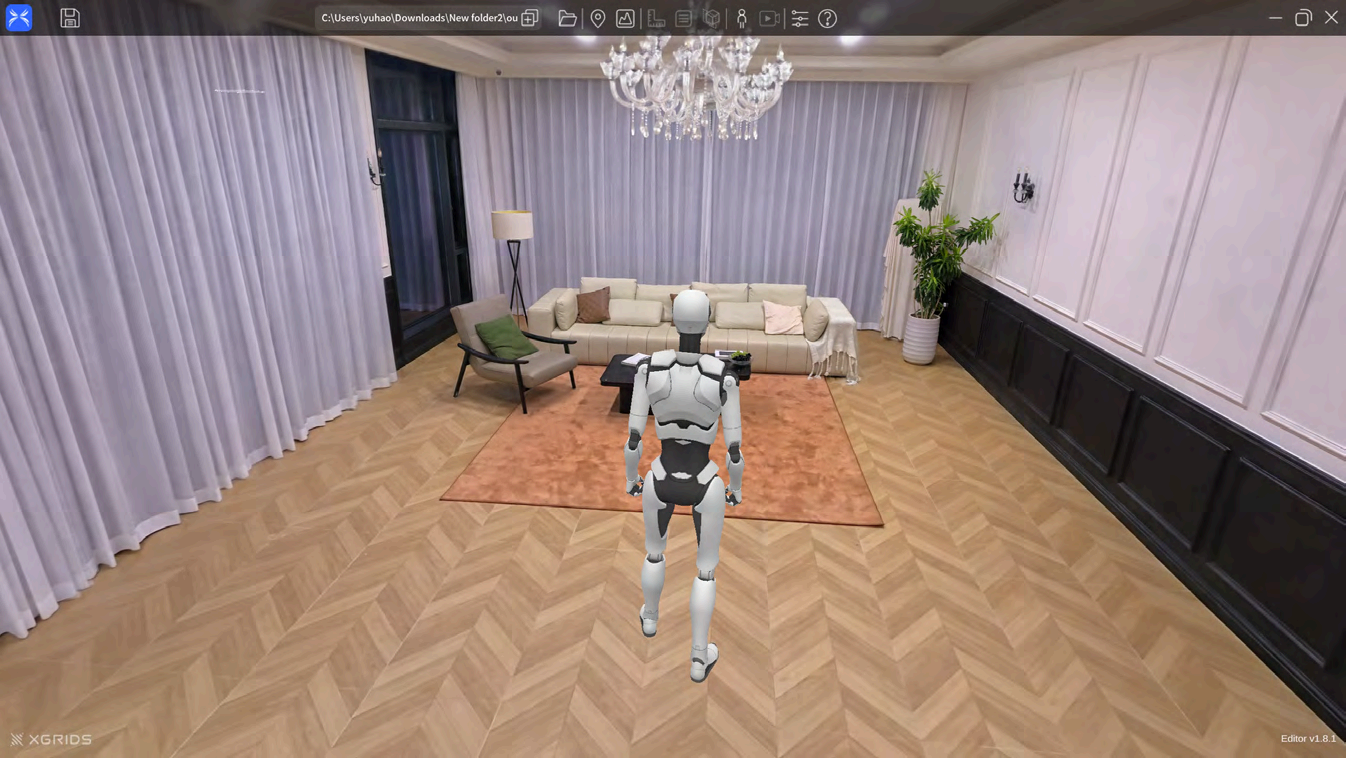

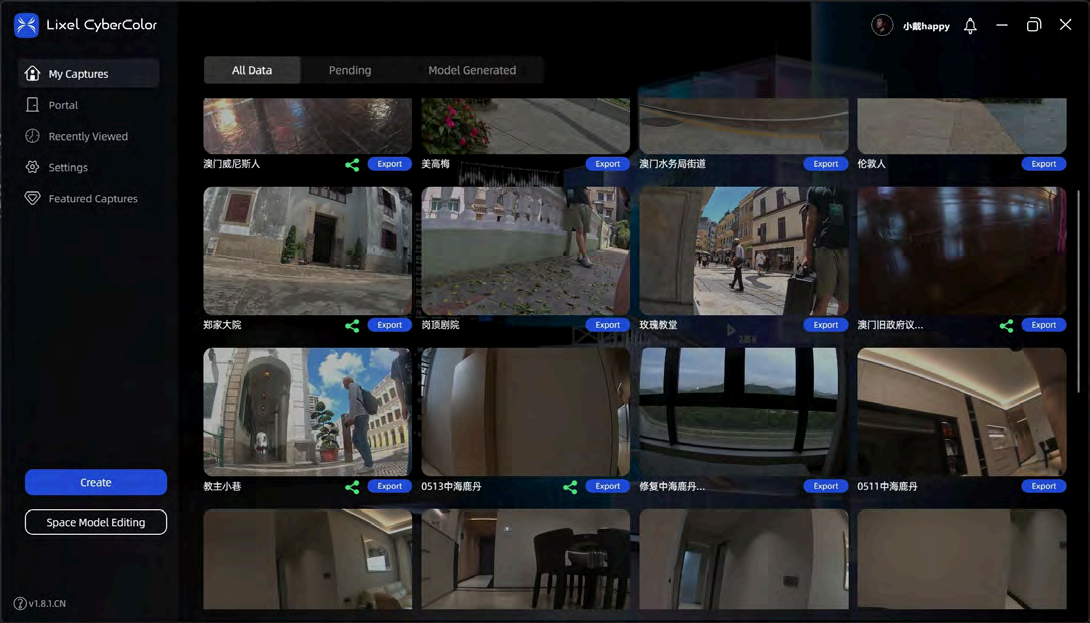

View, Edit, Share

Modify, annotate, and share spatial content across teams and platforms

Deploy Everywhere

Seamless integration with existing 3D workflows and applications

Applications

Real Estate

Film & Virtual Production

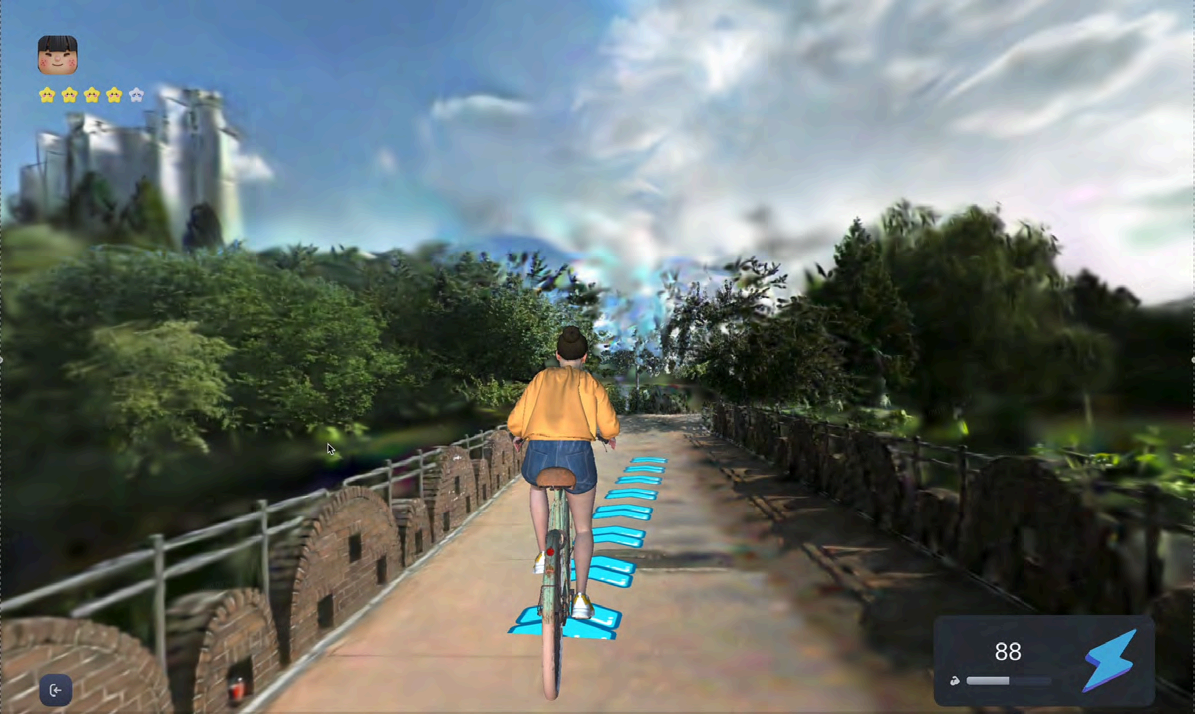

Gaming

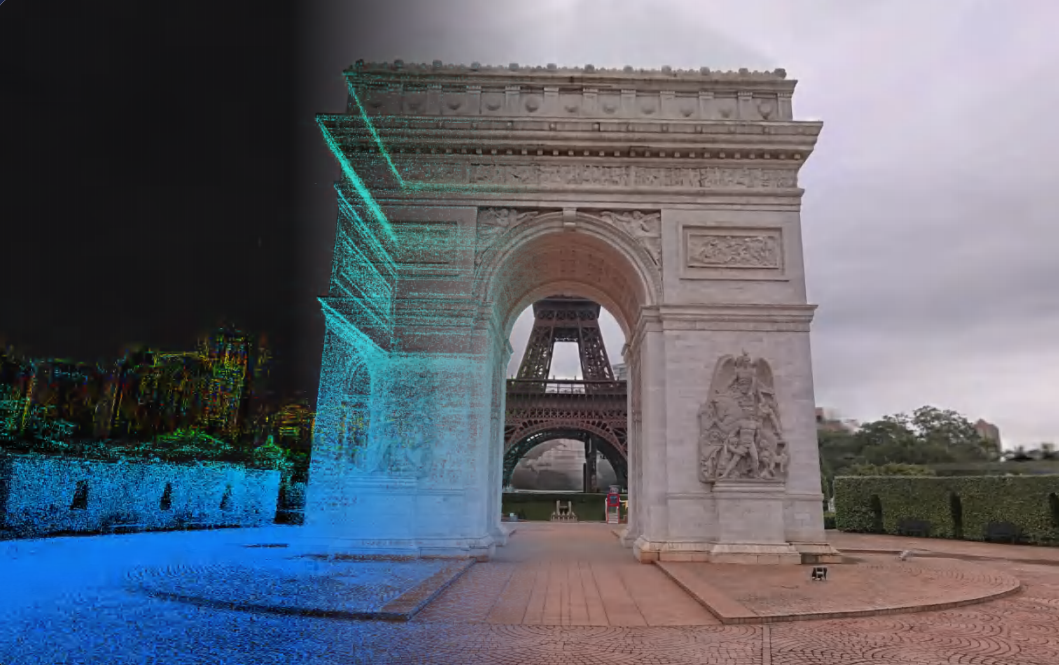

Cultural Heritage

VR/AR

Personal Archives

Technical Specifications

Physical Specifications
Power Consumption	<19W	Body Weight	870g (1.9 lbs) without tripod
Dimensions	130mm × 90mm × 77mm (5.1 × 3.5 × 3.0 in)	Housing Material	Aerospace-grade Aluminum Alloy
LiDAR System
Laser Classification	Class 1 / 940nm	Scanning Range	0.1m - 30m (4 in - 98 ft) @ 10% reflectivity 60m (197 ft) @ 90% reflectivity
Field of View	180° azimuth × 180° elevation	Point Rate	856,000 points/second
Camera System
Camera Configuration	4-camera array 2 × Fisheye, 2 × Front	Image Resolution	4000 × 3000 px
Sensor Size	1/2" CMOS	Shutter Type	Rolling Shutter
Fisheye Camera FOV	200° × 200° (each)	Front Camera FOV	100° × 85° (each)
Connectivity & Storage
Data Interface	USB 3.0	Internal Storage	512GB
GPS Module	Supported	WiFi	802.11 a/b/g/n/ac/ax 2.4GHz: 2412-2472MHz 5GHz: 5180-5240MHz 5GHz: 5745-5825MHz
Bluetooth	5.2	Wireless Range	20m (65.6 ft)
Power System
Battery Type	Removable Li-ion	Battery Capacity	23.04Wh
Operating Time	60 minutes (continuous scanning)	Charging Time (25°C/77°F)	0-90%: 70 minutes 0-100%: 90 minutes
Operating Temperature	-20°C - 45°C (-4°F - 113°F) (indirect sunlight only)	Charging Temperature	5°C - 30°C (41°F - 86°F)
Power Adapter
Input	100-240V, 50-60Hz, 1.5A, 80VA	Output	20V, 2.0A
Rated Power	PD Protocol, >25W	Standard	USB-C 45W single port
Dual port	25W + 20W

Accessories

Backpack with Protective Insert: Included

Extension Pole (2m/6.6 ft): Optional

External Storage (512GB/1TB SSD): Optional
