3016 Mini Telescopic Survey Pole
3016 Mini Telescopic Survey Pole
3016 Mini Telescopic Survey Pole
3016 Mini Telescopic Survey Pole
3016 Mini Telescopic Survey Pole
3016 Mini Telescopic Survey Pole
Specifications
Place of Origin :
China
Supply Ability :
20 sets per Month
Collapsed Length :
622 mm
Model :
3016
Delivery Time :
3-7work days
MOQ :
1
Maximum Length :
1600 mm
Model Number :
3016
Payment Terms :
T/T
Description
3016 Mini Telescopic Survey Pole

3016 Mini Telescopic Survey Pole

The 3016 Telescopic Centering Rod is a compact accessory for GNSS and surveying equipment. Its small packed size, low weight and standard 5/8"-11 connection make it suitable for GNSS system packages and general field surveying equipment.

The pole extends from 622 mm when collapsed to 1600 mm at full length. It weighs approximately 0.58 kg, making it easier to transport and store than a conventional fixed-length pole.

Simple Locking Mechanism

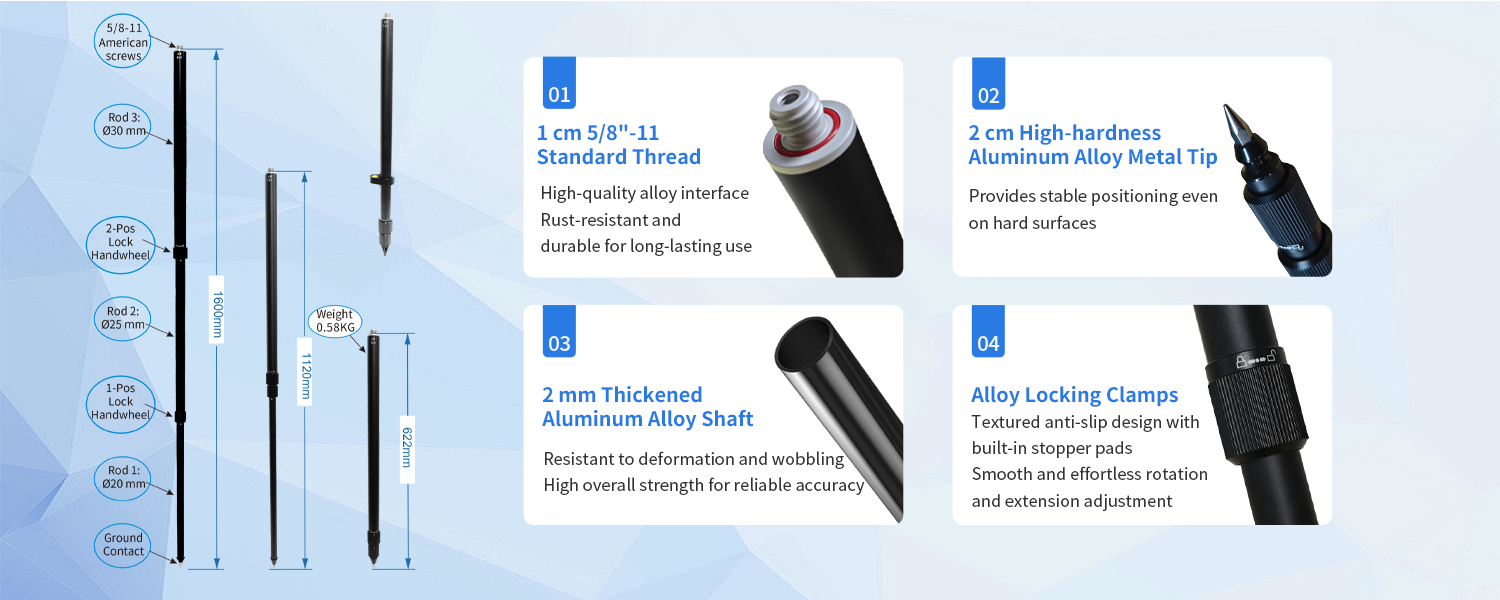

The telescopic sections are fitted with two-position locking handwheels. The operator only needs to turn the handwheel slightly to lock each section. The locking mechanism keeps the extended sections firm during use and helps maintain the selected pole height.

Compatible Accessories

The 3016 can also be supplied with optional accessories, including a vial holder, bracket clamp with integrated vial holder and all-in-one data collector bracket.

Product Specifications
Model 3016
Maximum Length 1600 mm
Collapsed Length 622 mm
Weight 0.58 kg
Sections 3
Tube Diameter Ø20 / Ø25 / Ø30 mm
Thread 5/8"-11
Lock Two-position locking handwheel
Optional Accessories Vial holder, bracket clamp, data collector bracket

The compact design also makes the 3016 convenient for OEM GNSS packages, distributor bundles and survey equipment kits.
