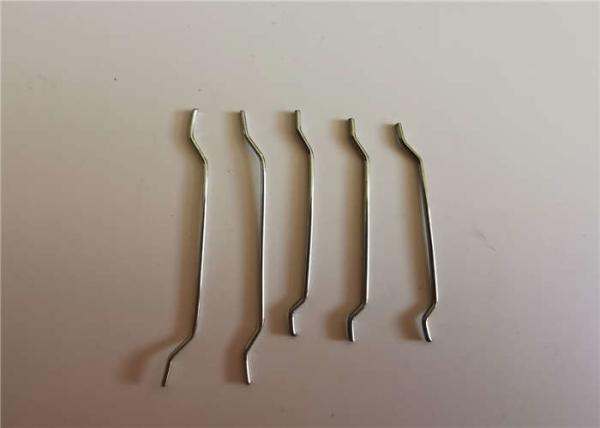

Concrete Carbon Loose Endhooked Steel Fiber

Steel Fiber Introduction

Steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1000MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.

In the concrete mixture, add right amount steel fiber can be mixed into a kind of special spray as well as casting concrete, that is steel fiber reinforced concrete.

Steel fibers are popular alternatives in reinforcing concrete for its huge bounding force between the fiber and the concrete, corrosion-resistance and hardness.

Specifications:

• Steel Fiber	Model	Diameter (mm)		Length (mm)		Aspect ratio (mm)		Tensile strength (MPa)
  	YS-60/60	1		60		60		≥1000
  	YS-50/50	1		50		50		≥1000
  	YS-65/60	0.9		60		65		≥1000
  	YS-55/50	0.9		50		55		≥1000
  	YS-80/60	0.75		60		80		≥1000
  	YS-45/35	0.75		35		45		≥1000
  	YS-50/30	0.6		30		50		≥1100
  	YS-55/30	0.55		30		55		≥1100
  	YS-65/35	0.53		35		65		≥1100
  	YS-60/30	0.5		30		60		≥1100
  	YS-50/25	0.5		25		50		≥1100
  	YS-60/25	0.4		25		60		≥1100

In mechanical and performance terms, by adding steel fibers to the concrete mix can:

• Get minor permeability
• improve mechanical performance concrete
• Prevent damage to the concrete
• Provide exceptional load stability and durability

Application:

• Shotcrete.
• Airport runways and taxiways
• Highway pavements
• Jointless design
• Precast
• Equipment foundations
• Blast resistant structures
• Hydro power station
• Tunnel
• Dam
• Warehouse flooring

Package and Delivery
