Specifications
Brand Name :
D&H
Model Number :
PGB-700
Certification :
CE,ISO,ROHS
Place of Origin :
MADE IN CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 unit per month
Delivery Time :
5-8 Working days
Packaging Details :
155X135X170 MM
Key words :
Adhesive Dispensing Robot For High Temperature Potting Compound
Suitable materials :
PU,EPOXIES ,SILICONES ...
PU,EPOXIES ,SILICONES ... :
700x700x100mm
Functions :
re-filling ,vacuum , heat , stirring ,self-cleaning
Description

vacuum encapsulation machine vacuum potting system 700 X 700 X 80mm

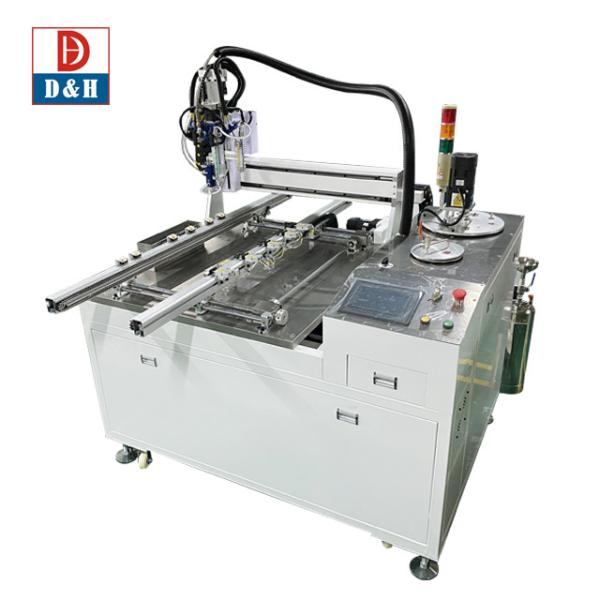

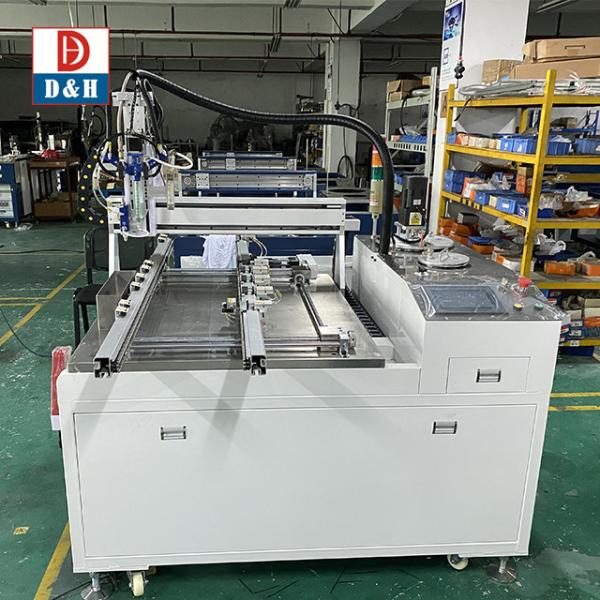

Vacuum Encapsulation Machine Vacuum Potting System

Model PGB-700
Dimension 1500*1100*1600mm
XYZ working area 700*700*100mm
AB ratio 100:100-100:10 adjustable
Movement Track Dot/Line/Arc/Circle
Speed 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program 99pcs/more
Input pressure 0.5MPa-0.7MPa
Viscosity 50cps-30000cps (Glue can be heated to decrease viscosity
Operation Method Automatic
Meter Pump Gear pump/Screw pump/Double cylinder plunger pump
Flow Control Digital Input
Programming method Teaching programming
Automated control syste PLC / touch screen (programming, modification, storage, etc.)
Glue control system AB glue suction valve to achieve independent operation of AB glue
Mixed mode Dynamic and static optional, instant mixing, easy to clean
Tank Stainless steel(40L),(25L),(10L)optional
Power supply 220V/50Hz/1200W ( The power consumption without heater)


Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700DR suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.


Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.
