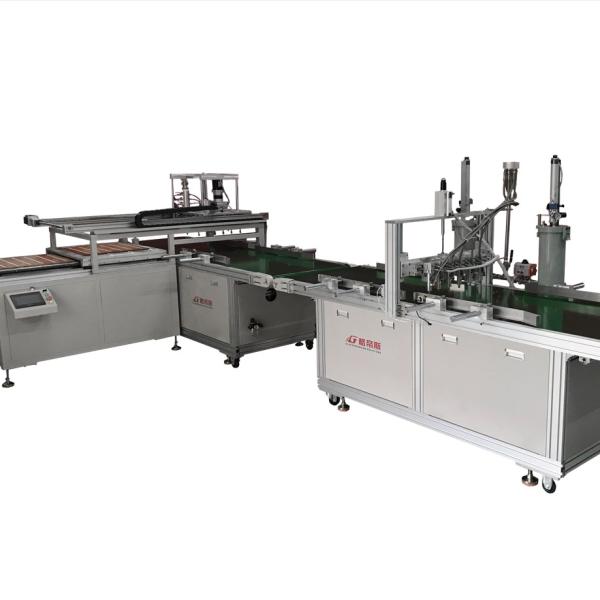

customized assembly machine with glue dispensing station, PCB bonding station and loading unit for 600x1200 panel

Machine Description

This advanced, customized assembly machine is designed for high-precision manufacturing processes involving large-format panels up to 600×1200 mm. It integrates three critical stations to streamline production: a glue dispensing station equipped with programmable, high-accuracy dispensing systems for consistent adhesive application; a PCB bonding station featuring automated optical alignment and pressure-controlled mechanisms to ensure reliable attachment of printed circuit boards; and a robotic loading unit that enables seamless panel handling, minimizing manual intervention and maximizing throughput. Engineered for flexibility, the machine supports customizable workflows to adapt to diverse assembly requirements, while its robust construction ensures stability for large-panel operations. This solution enhances efficiency, precision, and scalability in high-volume production environments.

Machine Features

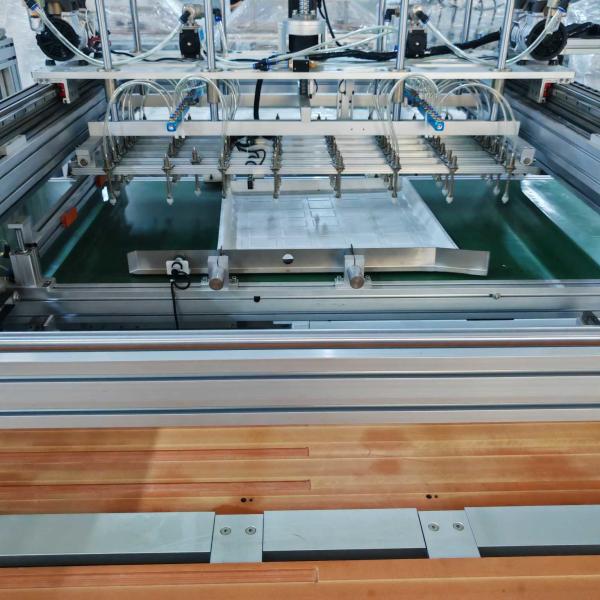

• Specially designed for back-lit panel light gluing, and PCB strip sticking

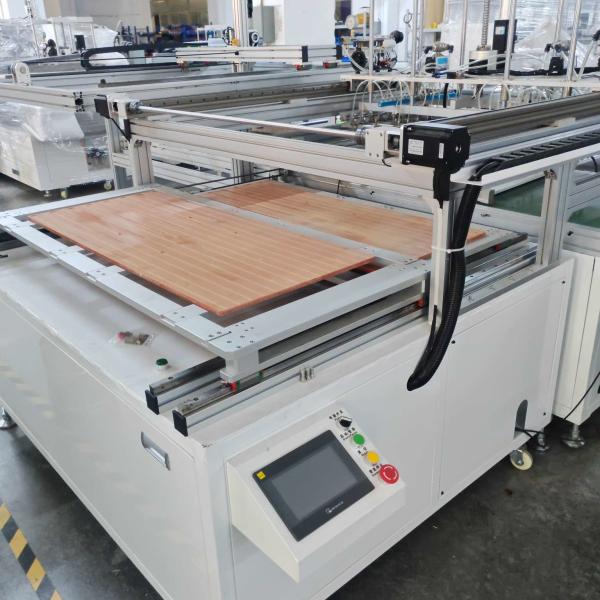

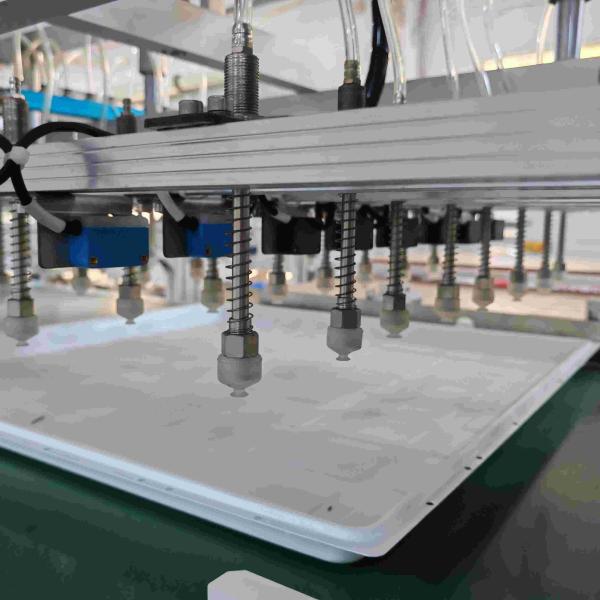

• panel loading and unloading can be done automatically
• Designed capacity is about 300pcs/h(600*600mm panel)
• Movement control +PLC, touch screen UI, easy to learn and operate
• Speed adjustable conveyor transfer, matching worker operation speed ;
• Conveyor can fit for different size of panel light;
• Work-piece sensor available, automatically activate the glue valve, no need to press start button frequently;

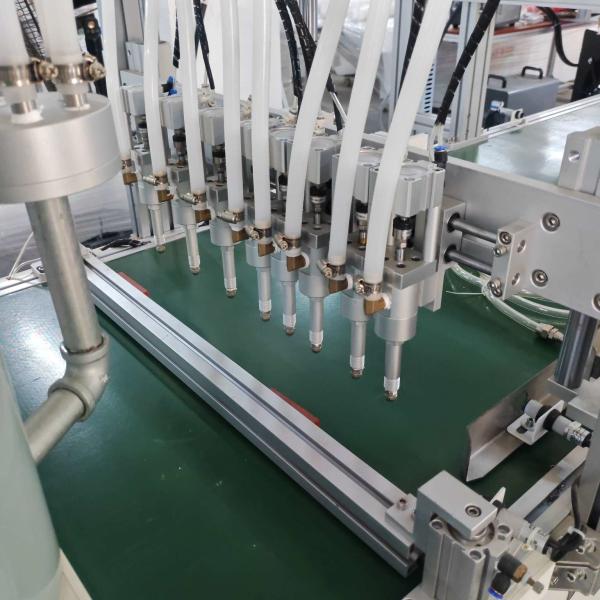

• Glue valve can be controlled independently. Glue flow is fast and accurate;
• 2600ml big glue pot feeding, no need to change the glue package frequently

Technical Parameters

Machine Details
