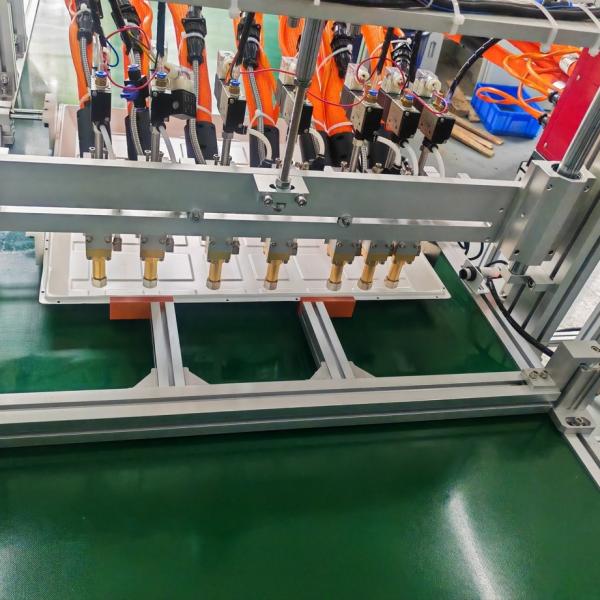

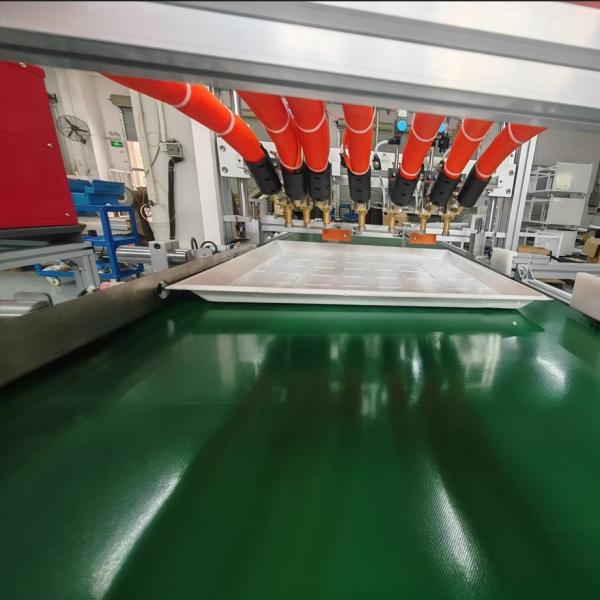

hot-melt glue dispensing line with 6 heads for panel light PCB bonding

Machine Description

Our advanced 6-head hot-melt glue dispensing line is engineered to deliver precision, efficiency, and reliability in the bonding process of panel light PCBs. Designed for high-volume production environments, this system integrates six independently controlled dispensing heads to enable simultaneous, multi-lines glue application, significantly accelerating cycle times while ensuring consistent adhesive coverage.

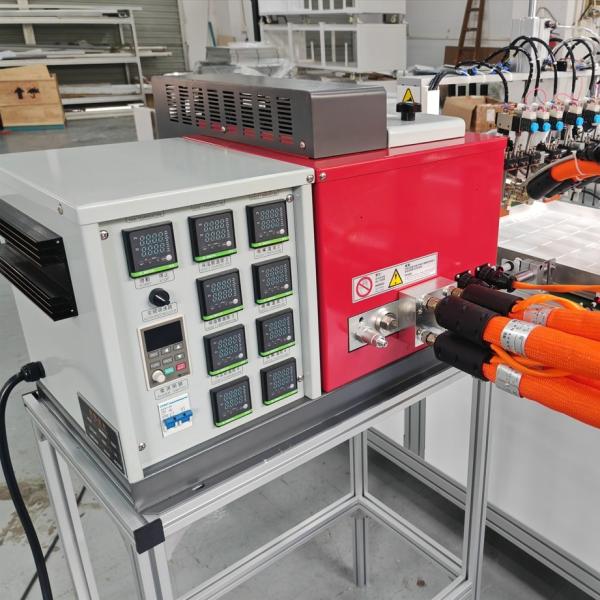

Equipped with high-precision temperature control and programmable dispensing parameters, the system optimizes glue viscosity and deposition accuracy for various PCB geometries and bonding requirements. The hot-melt adhesive technology ensures rapid curing, minimizing production downtime and enhancing throughput.

Ideal for panel light manufacturing, the system supports flexible configurations to accommodate diverse PCB sizes and designs, while its robust construction guarantees long-term durability in industrial settings. Enhanced with user-friendly HMI (Human-Machine Interface) and compatibility with automation workflows, this dispensing line reduces manual intervention, improves repeatability, and maintains stringent quality standards.

Machine Features

• Specially designed for back-lit panel light gluing, and PCB strip sticking
• panel loading and unloading can be done automatically
• Designed capacity is about 300pcs/h(600*600mm panel)
• Movement control +PLC, touch screen UI, easy to learn and operate
• Speed adjustable conveyor transfer, matching worker operation speed ;
• Conveyor can fit for different size of panel light;

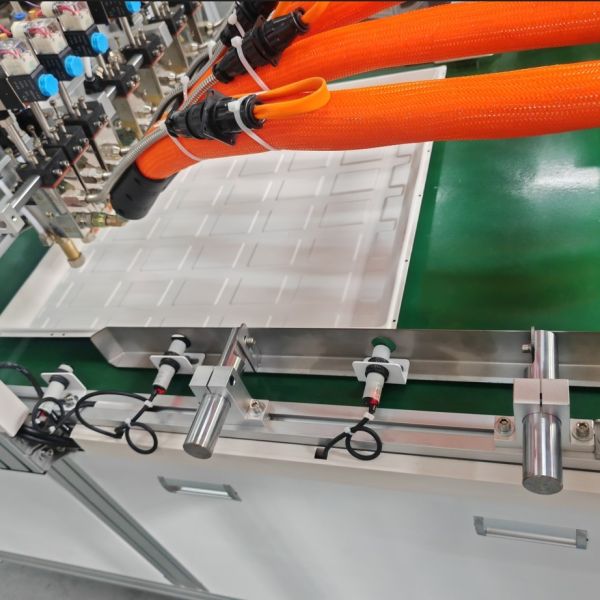

• Work-piece sensor available, automatically activate the glue valve, no need to press start button frequently;

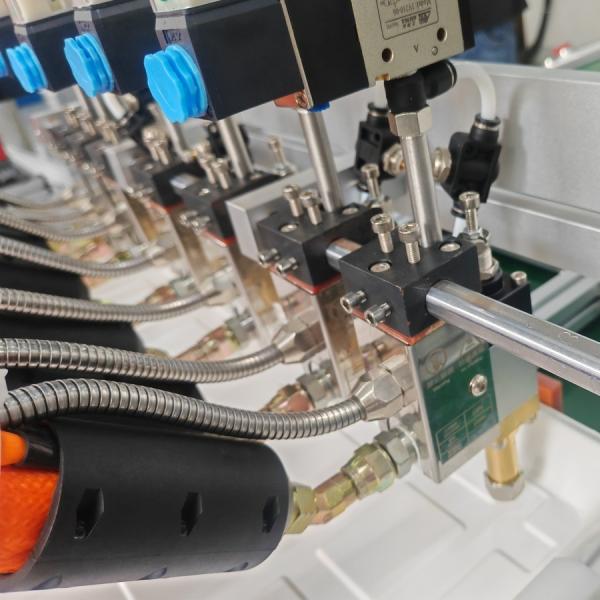

• Glue valve can be controlled independently. Glue flow is fast and accurate;
• 10 L big hot-melt glue feeding, no need to change the glue package frequently

Technical Parameters

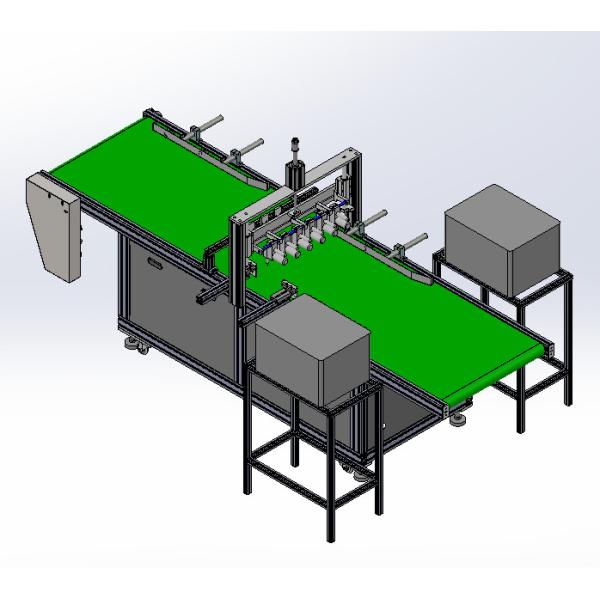

Machine Details
