Specifications
Packaging Details :
PLYWOOD CASE
Supply Ability :
30PCS/MONTH
Price :
CONTACT US
Brand Name :
GDS
Model Number :
HTD-1265-6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PIECE
Delivery Time :
10 working days
Name :
Glue Dispensing Machine
Application :
back-lit panel light
Function :
dispensing silicone
warranty :
1 Year
EXW report :
test video available
After-sales Service Provided :
on-line or on-site
Description

back-lit panel light automatic glue dispensing machine with multi-heads for 2by2 2by4 panel light

back-lit panel light assembly requires glue application on the back of panel board. If it's done manually, this process will take much labor cost, and the gluing performance may be not good enough. GDS designed multi-heads glue dispensing machine specifically for back-lit panel. It can glue for 6 strips at the same time, more dispensing heads can be added if required. Compared with manual operation, this automatic glue dispenser can greatly increase efficiency and save labor cost.

Machine Features

  • Floor stand design with castor, easy to move to match assembly line
  • Fixed working platform, convenient to pick and place work-piece
  • wide working range(600*1200MM), can fit for one piece panel
  • program setting is easy to learn and operate;
  • Glue flow is stable without leakage and drawing.

Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM

Technical Parameters

Model

HTD-1265-6

MCU

Text Controller

Programming

Teaching Programming

Drive Mode

Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way

Working Range(X*Y*Z)

600*1200*100mm

Max Moving Speed

MAX 500mm/sec

Repeat Accuracy

±0.02mm

Program Memory Capacity

About 10000 units

Dimension(L*W*H)

L2200*W800*H1200mm

Weight

220Kg

Working Power

AC220V/50～60Hz/150W

Working Air Pressure

0.4 ~ 0.6Mpa (no condensation)

Working Temperature and Humidity

Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

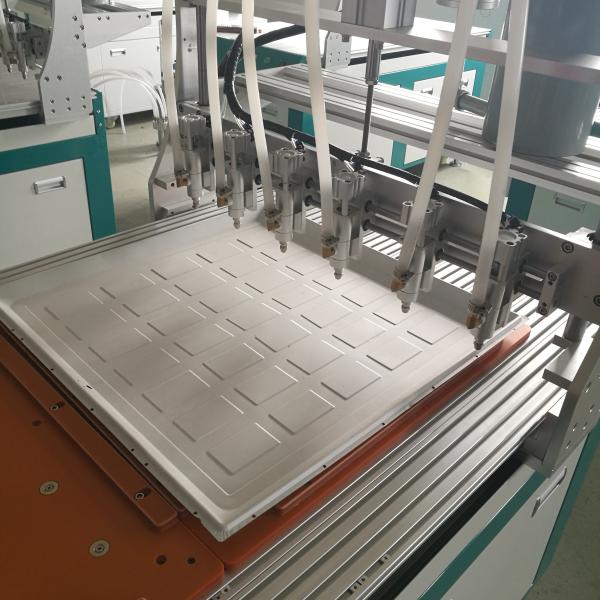

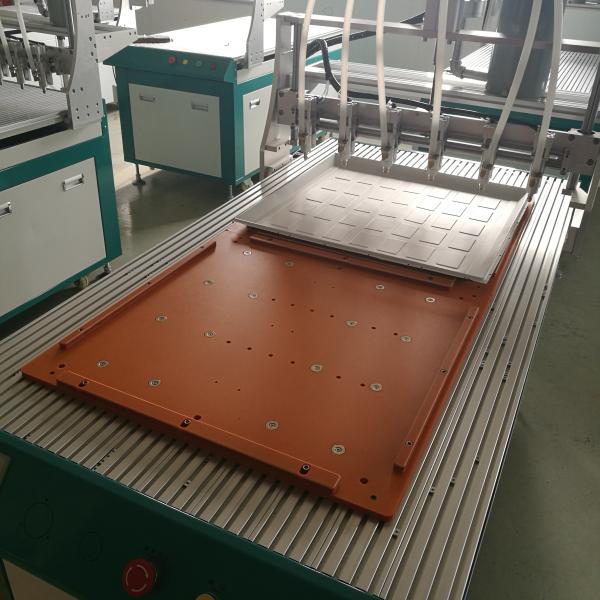

Machine Details

Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM

Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM
