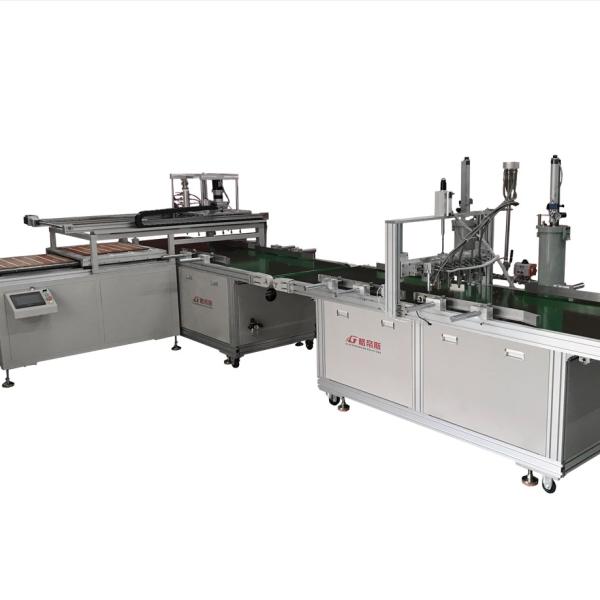

600x600 panel customized assembly machine with glue dispensing station, PCB bonding station and loading unit

Machine Description

This advanced 600x600 panel customized assembly machine is designed for high-precision, automated manufacturing processes, integrating three critical stations to streamline production. The glue dispensing station ensures accurate and consistent adhesive application for panel PCB bonding, tailored for materials requiring specific viscosity and curing parameters. The PCB bonding station guarantees precise alignment and secure attachment of printed circuit boards (PCBs) to panels, leveraging programmable pressure and temperature controls for optimal electrical and mechanical performance. Complemented by an automated loading unit, the system enables seamless panel handling, reducing manual intervention and maximizing throughput. Built with modularity in mind, this machine supports flexible configurations to adapt to diverse assembly requirements, while robust motion control and user-friendly interfaces ensure operational efficiency and minimal downtime. This solution enhances productivity, quality, and scalability in customized panel assembly workflows.

Machine Features

• Specially designed for back-lit panel light gluing, and PCB strip sticking
• panel loading and unloading can be done automatically
• Designed capacity is about 300pcs/h(600*600mm panel)
• Movement control +PLC, touch screen UI, easy to learn and operate
• Speed adjustable conveyor transfer, matching worker operation speed ;
• Conveyor can fit for different size of panel light;
• Work-piece sensor available, automatically activate the glue valve, no need to press start button frequently;
• Glue valve can be controlled independently. Glue flow is fast and accurate;
• 2600ml big glue pot feeding, no need to change the glue package frequently

Technical Parameters

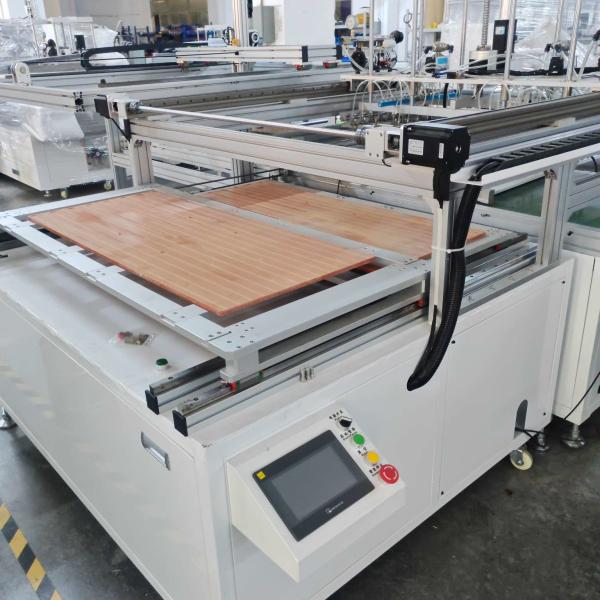

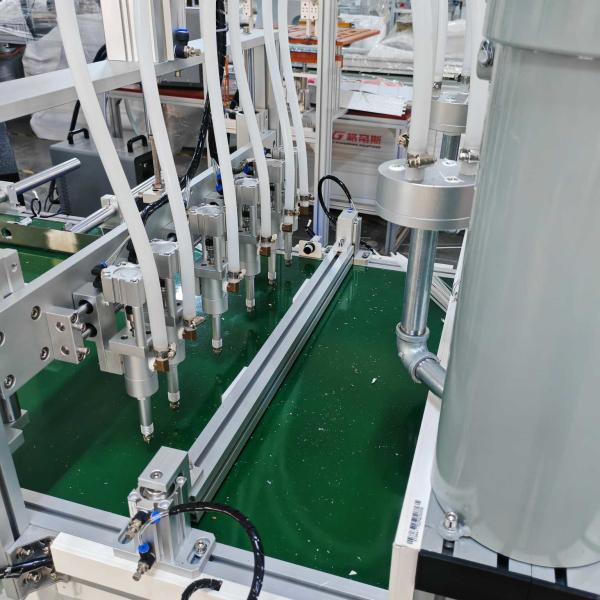

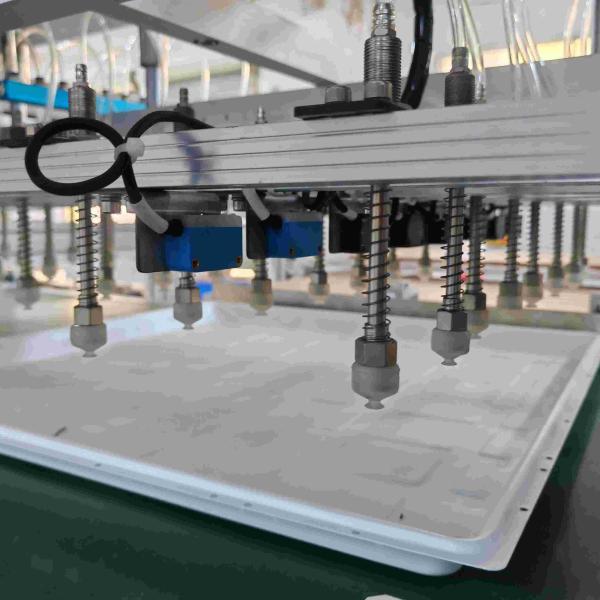

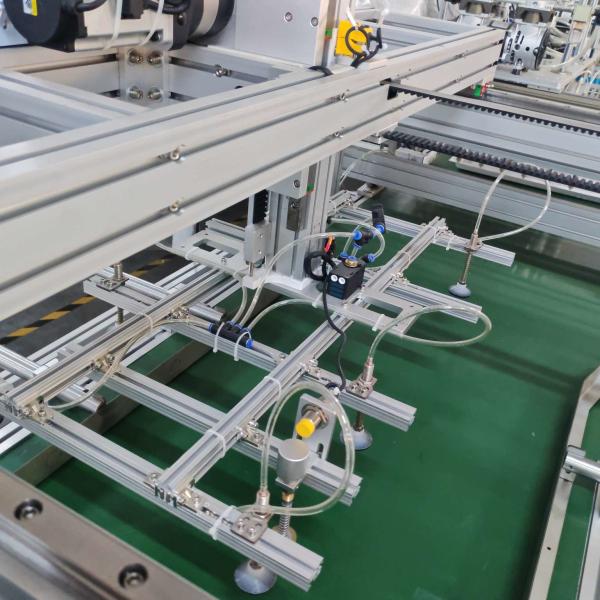

Machine Details
