Specifications
Brand Name :
GDS
Model Number :
HTD-600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
CONTACT US
Payment Terms :
T/T
Supply Ability :
30PCS/mon
Delivery Time :
10 days
Packaging Details :
plywood case
Working Range :
600*600*100mm
Max Moving Speed :
500mm/sec
Repeat Accuracy :
±0.02mm
Working Power :
AC220V/50～60Hz/150W
Working Air Pressure :
0.4 ~ 0.6Mpa
Working Temperature :
0 ~ 40℃
Description
3 Axis Dispensing Machine with Precise Adhesive Dispensing Capabilities for Solar Panel Frame Assembly Automation
Machine Overview

Elevate your solar panel manufacturing with our 3-axis glue dispensing robot, engineered to deliver flawless adhesive application for solar frame assembly. Designed for high-volume production, this automated system ensures precision, durability, and cost-efficiency in bonding aluminum or composite frames, critical for weatherproofing and structural integrity in photovoltaic (PV) modules.

Key Features & Benefits
  • Ultra-Precise Adhesive Control: Motor-driven XYZ-axis system guarantees high-level accuracy, applying uniform glue beads for airtight seals on solar panel frames
  • Material Versatility: Compatible with versatile silicone, supporting diverse thermal expansion and load-bearing requirements
  • Durable Construction: IP55-rated components and stainless-steel frame withstand dust, humidity, and temperature fluctuations
  • Industrial PLC Controller: Different glue settings ensure optimal performance
  • Stable Glue Flow: No leakage or drawing issues
  • Easy Programming: Equipped with hand programming controller for accelerated gluing processes
  • Flexible Material Compatibility: Works with different brand silicones in 300ml or 2600ml packages
Performance Advantages
40% Faster Cycle Times: Boost throughput for utility-scale solar projects with automated, error-free dispensing
30% Material Savings: Precision dosing reduces adhesive waste, lowering operational costs
Zero Leak Guarantee: Automated path planning eliminates gaps in critical sealing areas, ensuring IP68-rated protection
Applications in Solar Production
  • Airtight bonding of aluminum/composite frames to PV module edges
  • Weatherproof sealing for junction boxes and cable entry points
  • Structural reinforcement of mounting clips and corner connectors
Technical Specifications
Parameter Specification
Model HTD-600
MCU 3 axis movement controller
Programming Teaching programming
Drive Mode Precise Stepping Motor + Synchronous Belt + Linear Guide-way
Working Range (X*Y*Z) 600*600*100mm
Max Moving Speed MAX 500mm/sec
Repeat Accuracy ±0.02mm
Program Memory Capacity Program Memory Capacity
Dimension (L*W*H) 700*650*1200mm
Working Power AC220V/50～60Hz/150W
Working Air Pressure 0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity Temperature: 0 ~ 40℃ Humidity: 20 ~ 90%
Glue applicable: 300ml package silicone or 2600ml package silicone

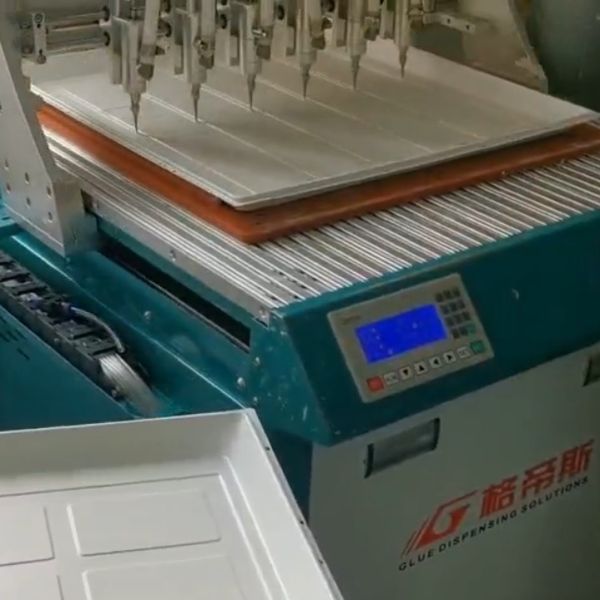

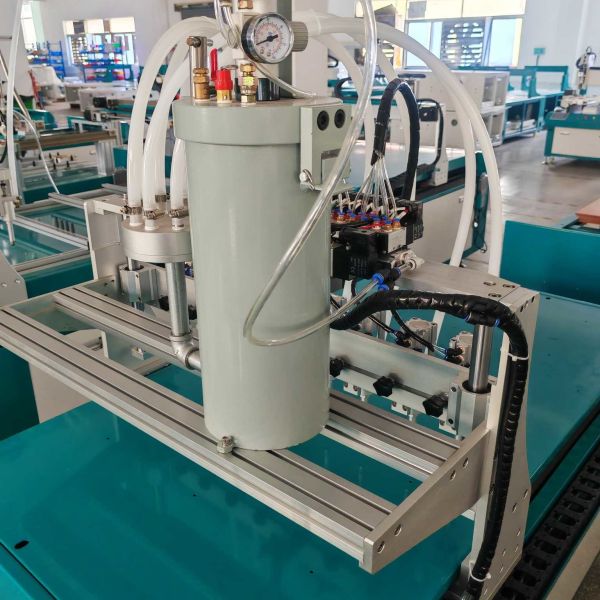

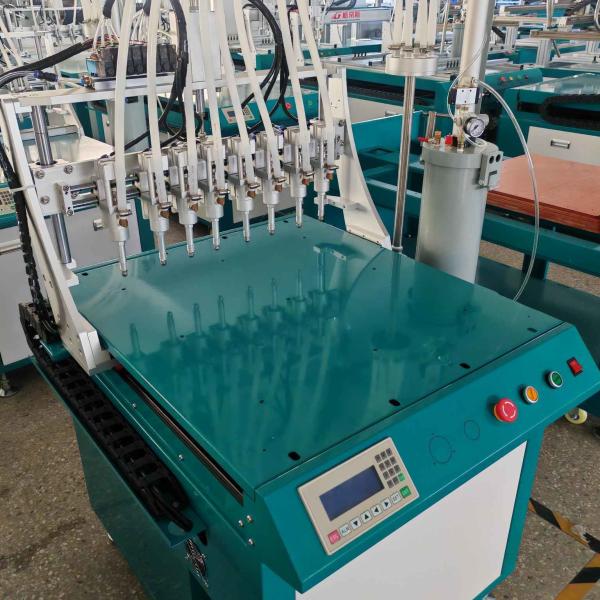

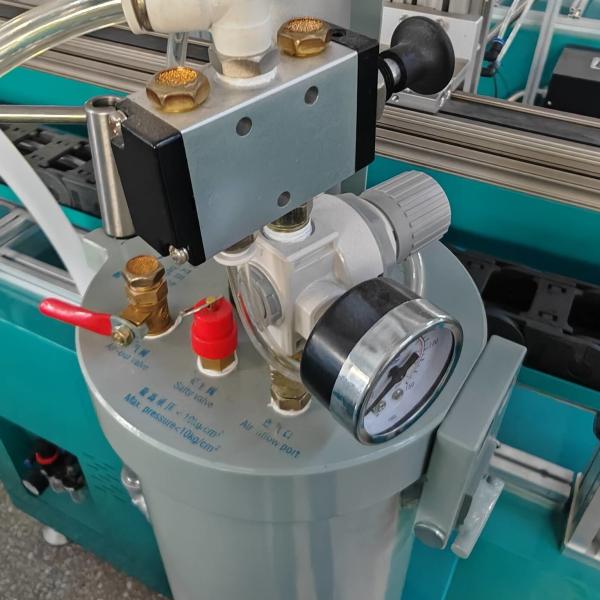

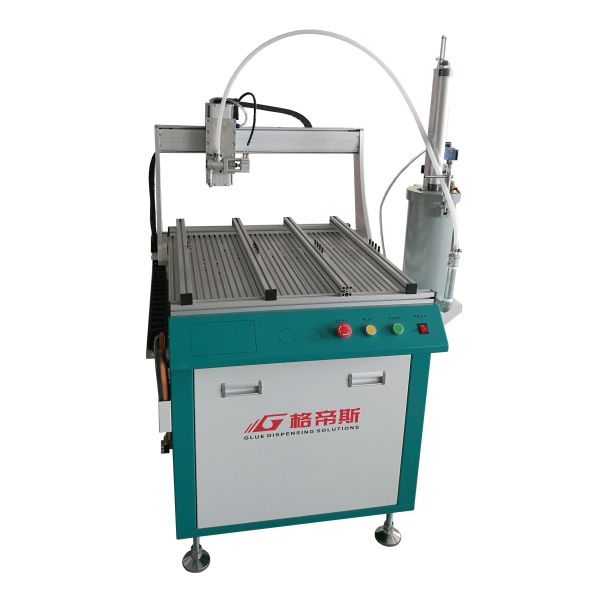

Product Images
3 Axis Dispensing Robot with 600*600mm Working Range, ±0.02mm Repeat Accuracy, and 500mm/sec Max Speed for Solar Panel Assembly
3 Axis Dispensing Robot with 600*600mm Working Range, ±0.02mm Repeat Accuracy, and 500mm/sec Max Speed for Solar Panel Assembly
3 Axis Dispensing Robot with 600*600mm Working Range, ±0.02mm Repeat Accuracy, and 500mm/sec Max Speed for Solar Panel Assembly
Request a Free Demo to optimize your solar frame assembly line and achieve seamless, sustainable production!
