Specifications
Brand Name :
GDS
Model Number :
HTD-600-8
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
Contact US
Payment Terms :
T/T
Supply Ability :
30PCS/Month
Delivery Time :
10 working days
Packaging Details :
plywood case
Name :
Glue Dispensing Robot
Application :
back-lit panel light
Function :
dispensing glue
EXW report :
test video available
After-sales Service Provided :
on-line or on-site
Warranty :
1 year
Description

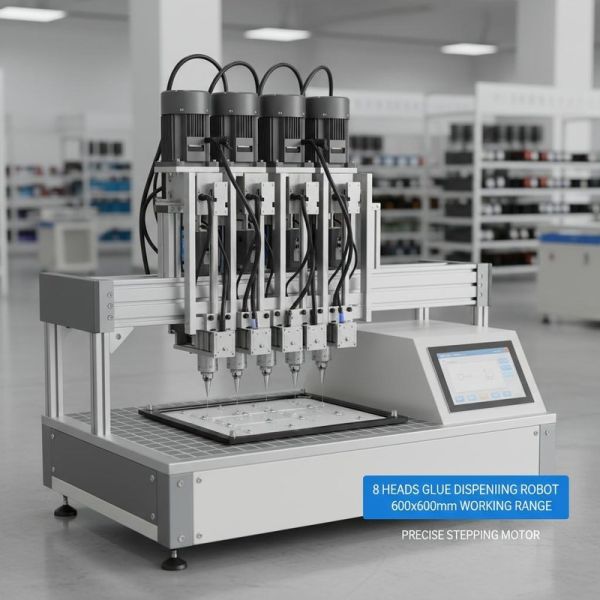

Glue Dispensing Robot with 8 Heads for Precise Silicone Glue Application
8 Heads Glue Dispensing Robot for 2X2 Back-lit Panel Light Production Glue Application
Machine Description
2X2 back-lit panel light assembly process includes bonding PCB strips to the housing with silicone glue. Some panel light manufacturers use 6 PCB strips, while others use 8 PCB strips. Regardless of the number, silicone glue application is essential. The GDS 8-heads glue dispensing robot is designed to meet panel light manufacturers' demand for applying 8 glue lines to the housing simultaneously. It can perfectly dispense 8 straight silicone lines corresponding to 8 PCB strips in a quick, even motion. All 8 silicone dispensing heads can be controlled independently, allowing operators to use any combination based on specific production requirements.
Machine Features
  • Floor stand design with castors for easy mobility to match assembly line requirements
  • Fixed working platform for convenient pick-and-place workpiece handling
  • Wide working range (600×600mm) capable of fitting single panel pieces
  • Easy-to-learn and operate program settings
  • Stable glue flow without leakage or drawing issues
8 Heads Glue Dispensing Robot with 600*600mm Working Range and Precise Stepping Motor for Backlit Panel Light Assembly
Technical Parameters
Model HTD-600-8
MCU Text Controller
Programming Teaching Programming
Drive Mode Precise Stepping Motor + Synchronous Belt + Linear Guide-way
Working Range (X×Y×Z) 600×600×100mm
Max Moving Speed MAX 500mm/sec
Repeat Accuracy ±0.02mm
Program Memory Capacity Approximately 10,000 units
Dimension (L×W×H) 700×650×1200mm
Weight 135Kg
Working Power AC220V/50～60Hz/150W
Working Air Pressure 0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity Temperature: 0 ~ 40℃ Humidity: 20 ~ 90%

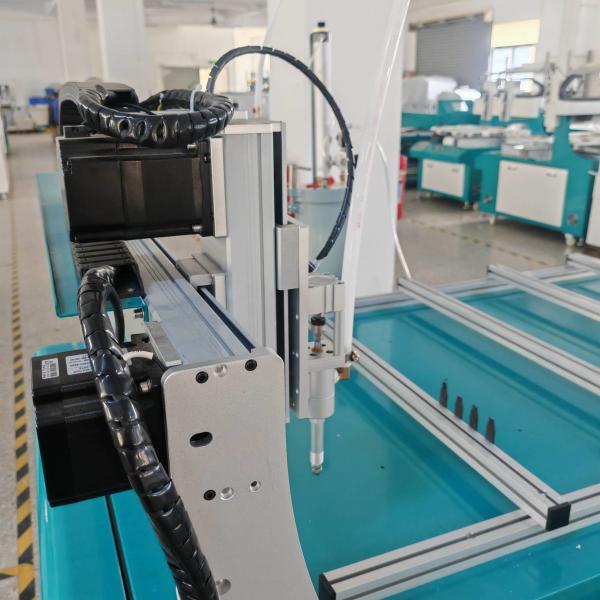

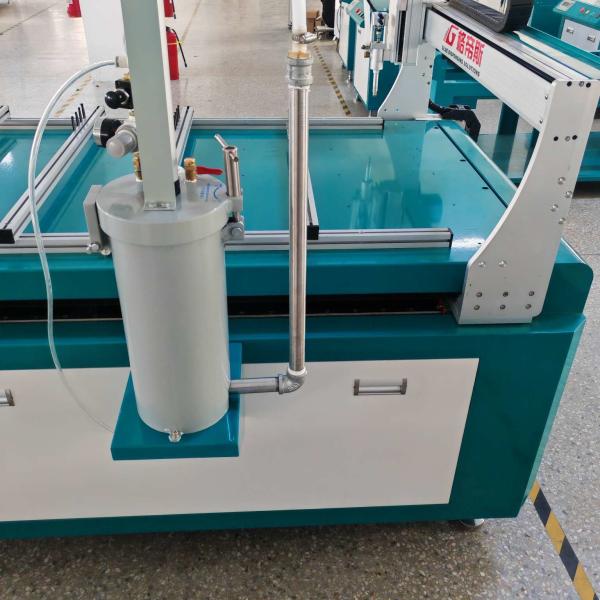

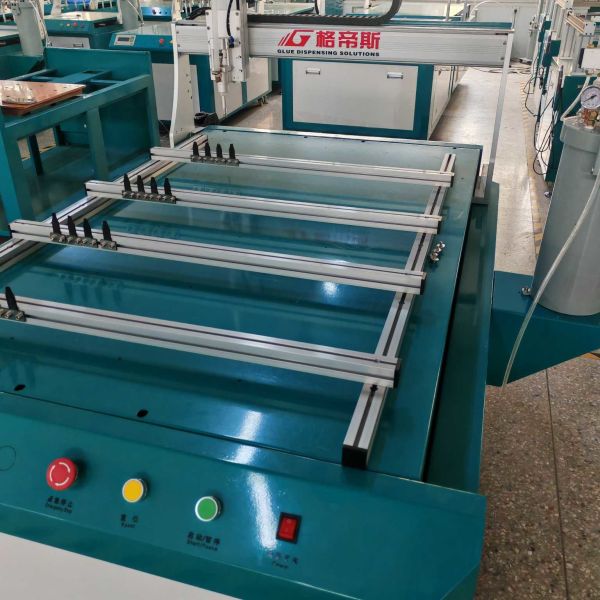

Machine Details
8 Heads Glue Dispensing Robot with 600*600mm Working Range and Precise Stepping Motor for Backlit Panel Light Assembly 8 Heads Glue Dispensing Robot with 600*600mm Working Range and Precise Stepping Motor for Backlit Panel Light Assembly
