Online Unloading Gloves Production Line 3*380V Glove Stripping Machine
Online Unloading Gloves Production Line 3*380V Glove Stripping Machine
Online Unloading Gloves Production Line 3*380V Glove Stripping Machine
Online Unloading Gloves Production Line 3*380V Glove Stripping Machine
Online Unloading Gloves Production Line 3*380V Glove Stripping Machine
Online Unloading Gloves Production Line 3*380V Glove Stripping Machine
Specifications
Place of Origin :
China
MOQ :
1 set
Control System :
PLC Touch Screen Control
Dimension :
Customizable based on production scale
Delivery Time :
40-60 work days
Supply Ability :
50 sets per year
Price :
Negotiable
Payment Terms :
TT
Stripping Capacity :
PVC/PU Gloves: 40000-80000 pairs/24h NBR/NR Gloves: 30000-45000 pairs/24h
Air Compressor :
Required, specifications vary
Model Number :
Customized
Supply Voltage/Frequency :
3*380V+N/50HZ
Safety Features :
Emergency stop, overload protection
Glove Types :
Latex, Nitrile, PU, PVC, Silicone
Air Pressure :
0.5-0.8 Mpa
Machine Type :
Automatic/ Semi-Automatic
Automation Level :
High automation with minimal manual intervention
Brand Name :
Zhihui
Drying System :
Hot air circulation drying
Material :
Stainless Steel/Galvanized Steel
Production Capacity :
5000-100,000 pairs per day
Power Supply :
380V/50Hz or customizable
Packaging Details :
Per request
Work Cycle :
Gloves:6-8 seconds NBR/NR Gloves: 20-30 seconds
Certification :
CE/ISO/SGS
Installed Power :
1.8 KW
Dipping Tanks :
Customized
Warranty :
1 year
Overall Dimensions :
L2.6m * W1.45m * H1.25m
Weight :
Customized
Description

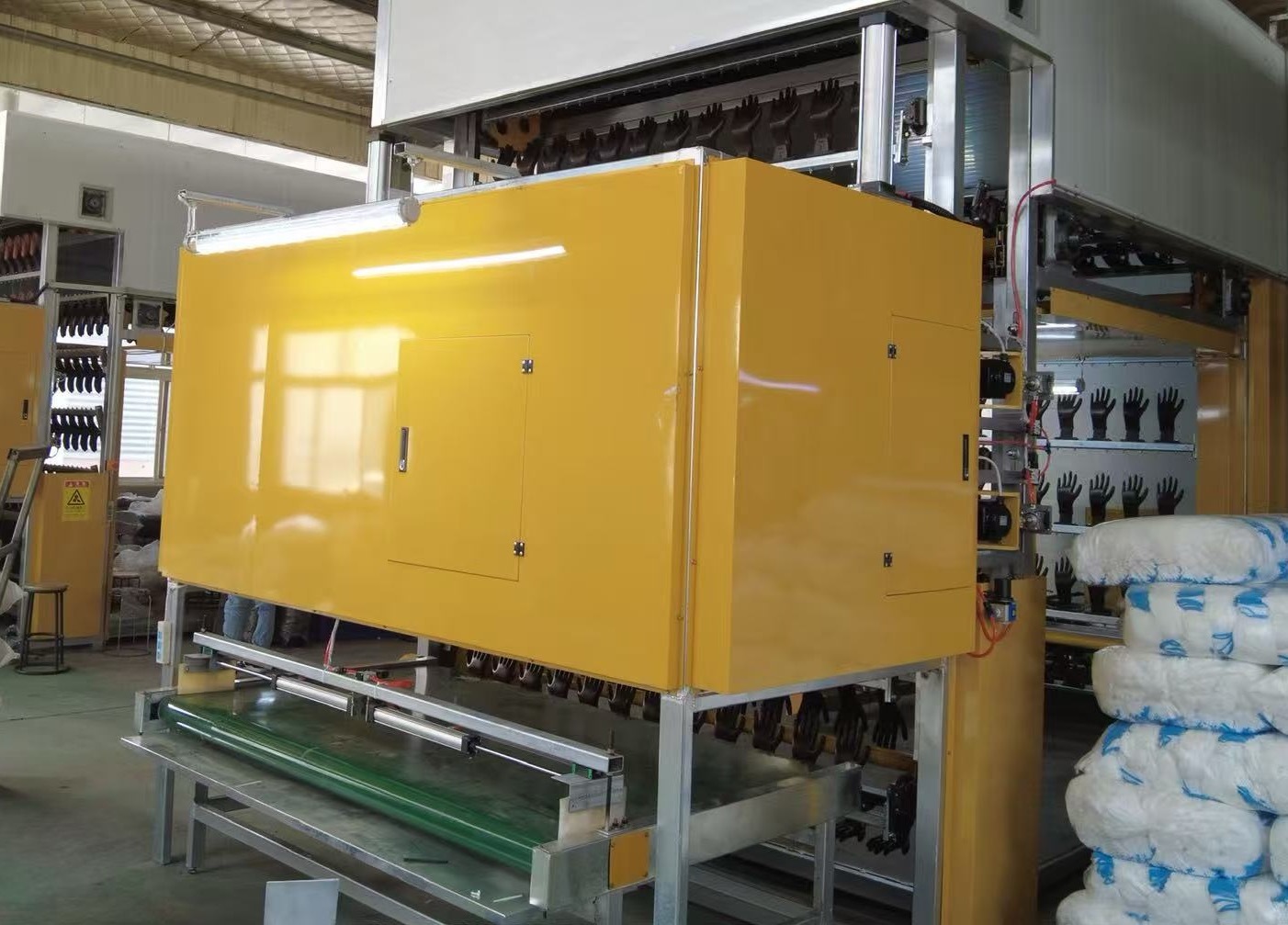

Automatic Glove Stripping Machine Online Unloading Facility Demoulding System
Engineered for automated glove removal from aluminium alloy hand formers in PVC/PU and NBR/NR glove production lines, this reciprocating-cycle stripping machine eliminates manual labor while maximizing throughput and minimizing product damage.
Key Specifications
Overall Dimensions (L × W × H) 2.6m × 1.45m × 1.25m
Stripping Capacity PVC/PU Gloves: 40,000-80,000 pairs/24h
NBR/NR Gloves: 30,000-45,000 pairs/24h
Work Cycle PVC/PU Gloves: 6-8 seconds
NBR/NR Gloves: 20-30 seconds
Work Pattern Reciprocating Cycle
Operators None
Installed Power 1.8 KW
Air Pressure 0.5-0.8 MPa
Supply Voltage/Frequency 3×380V+N/50Hz
Controlling System PLC (DELTA)
Product Description
This fully automatic glove stripping machine is purpose-built for high-speed, damage-free demolding of gloves from hand formers in dip-molding production lines. Operating on a continuous reciprocating cycle, the machine handles both PVC/PU gloves and NBR/NR gloves with optimized stripping parameters for each material type—achieving daily throughput of 40,000-80,000 pairs (PVC/PU) and 30,000-45,000 pairs (NBR/NR).
The PLC-based DELTA control system coordinates precise stripping roller speed, air pressure-assisted release, and synchronized conveyor takeaway, ensuring gentle yet efficient glove removal without tearing, stretching, or surface defects. The compact footprint (2.6m × 1.45m) integrates into existing production lines with minimal modification.
Designed for true unattended operation, the machine requires only 1.8 KW installed power and standard factory utilities (0.5-0.8 MPa pneumatic, 3-phase 380V/50Hz), delivering exceptional energy efficiency. Heavy-duty steel construction and industrial-grade pneumatic components ensure round-the-clock reliability in demanding production environments.
  • Adjustable stripping force for different glove thicknesses
  • Seamless synchronization with upstream curing and downstream packing lines
About Us & Services
We are an ISO 9001:2015 certified glove machinery manufacturer with 20+ years experience. Services include free consultation, on-site installation & training, 12-month warranty, lifetime support, global spare parts supply, and OEM/ODM customization.
