34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
34 Meters Glove Dipping Machine 0.05mm To 0.15mm Nitrile Glove Production Line
Specifications
Machine Type :
Automatic/ Semi-automatic
Glove Types :
Latex, Nitrile, PU, PVC, Silicone
Dimensions :
Customizable based on production needs
Drying System :
Hot air circulation drying
Certification :
CE/ISO/SGS
Production capacity :
Up to 2000 pairs per hour
Safety Features :
Emergency stop, overload protection
Control System :
PLC Touch Screen Control
Payment Terms :
TT
Supply Ability :
50 sets per year
Heating method :
Electric heating
Power Supply :
380V/50Hz or customizable
Machine Dimensions :
Customized
Air Compressor :
Required, specifications vary
Price :
Negotiable
Control system :
PLC control with touch screen
Warranty :
1 year
Dipping Stations :
Multiple (customized)
Dimension :
Customizable based on production scale
Delivery Time :
40-60 work days
Automation Level :
High automation with minimal manual intervention
Material :
Stainless Steel/Galvanized Steel
Production Capacity :
5000-100,000 pairs per day
Heating Method :
Electric, Gas, Coal, Wood
Packaging Details :
Per request
Place of Origin :
China
Power supply :
220V/380V, 50Hz/60Hz
Dipping Tanks :
Customized
MOQ :
1 set
Glove thickness range :
0.05 mm to 0.15 mm
Installation Time :
Approximately 20-30 work days
Drying Method :
Hot Air Drying
Brand Name :
Zhihui
Model Number :
Customized
Drying system :
Hot air drying
Weight :
Customized
Description

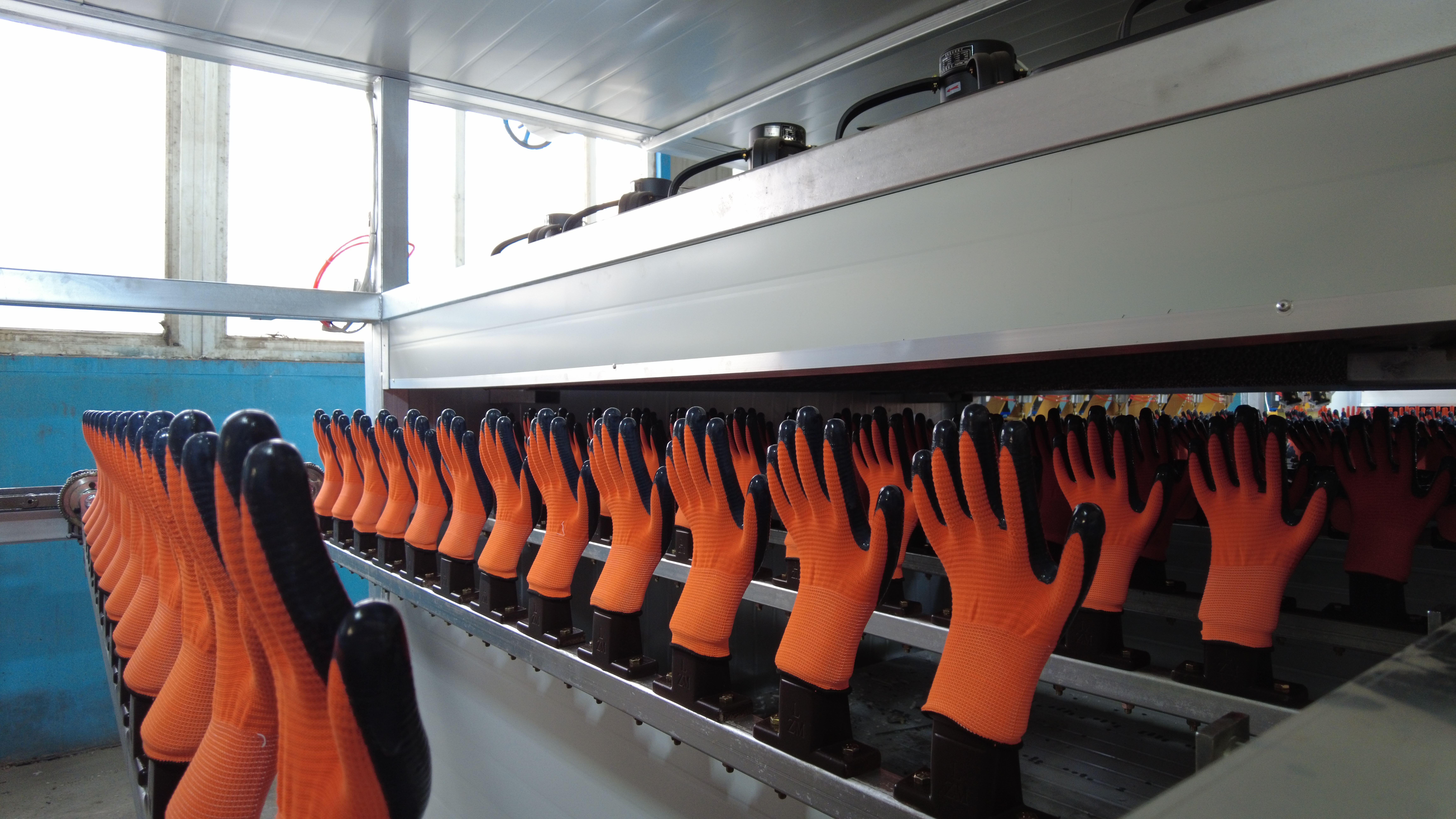

34 Meters Automatic Gloves Dipping Machine Latex Nitrile Glove Production Line
Product Overview

Zhihui A.I. 34-Meter Automatic Gloves Dipping Machine is a fully integrated, PLC-controlled production line engineered for high-volume manufacturing of latex and nitrile protective gloves. Designed and manufactured by Shandong Zhihui Machinery Technology Co., Ltd., this turnkey system combines precision dipping, automatic printing, and unloading into one seamless workflow. With a daily output of 33,000-36,000 pairs per 24 hours and requiring only 4-5 operators per shift, it delivers exceptional efficiency for glove manufacturers worldwide.

Key Features
  • Intelligent PLC Control: DELTA PLC automation system with touchscreen HMI for full-line synchronization and real-time monitoring
  • High-Capacity Output: 33,000-36,000 pairs per 24 hours with a work cycle of just 25-35 seconds

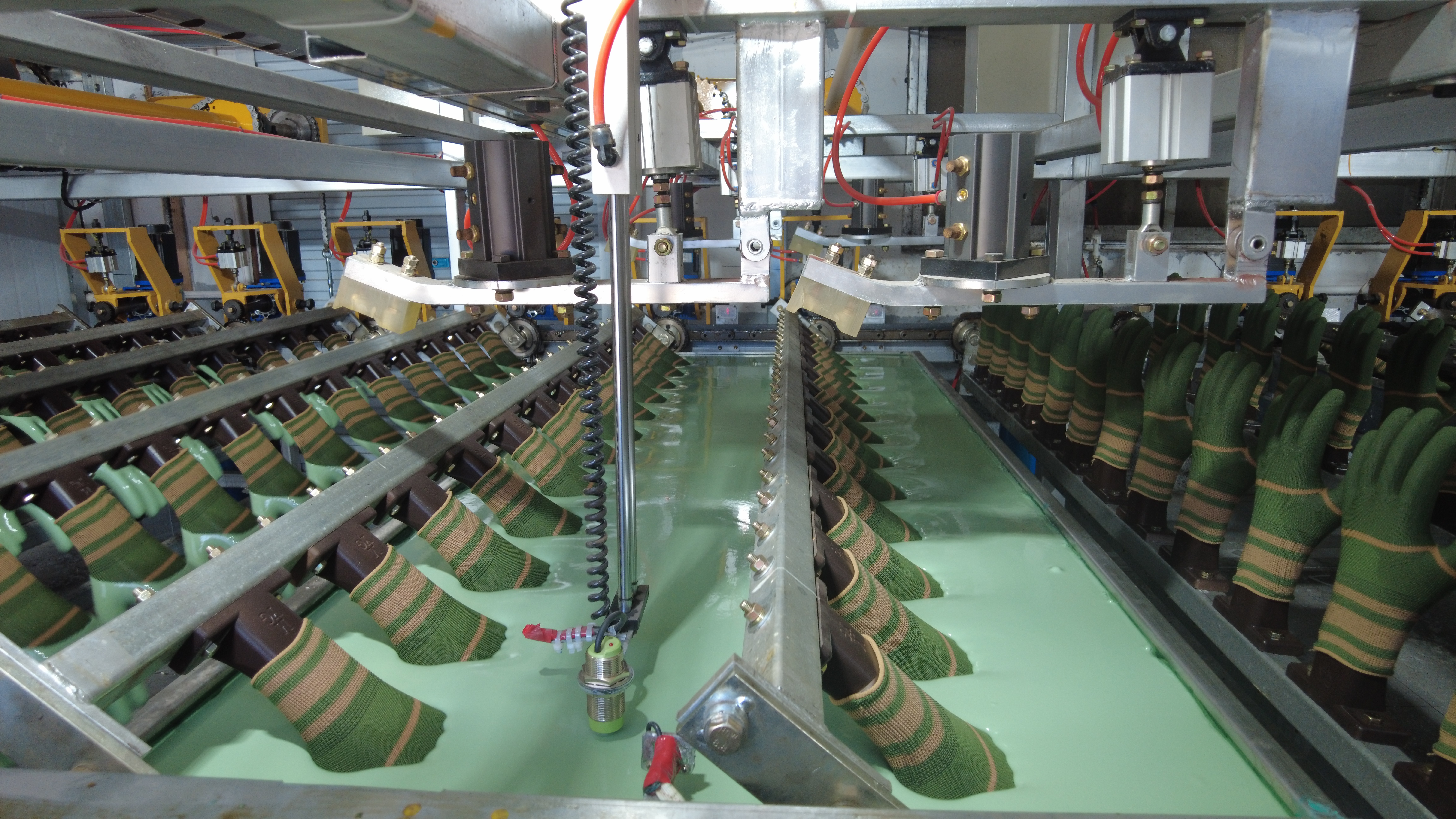

  • Multi-Formula Dipping System: 4 stainless steel (304) dipping tanks with auto-filling and level sensors — coagulant tank, circulated compounding tank, foam tank, and crinkle tank
  • Versatile Glove Production: Supports latex smooth gloves, latex foam gloves, latex crinkle gloves, and nitrile smooth gloves

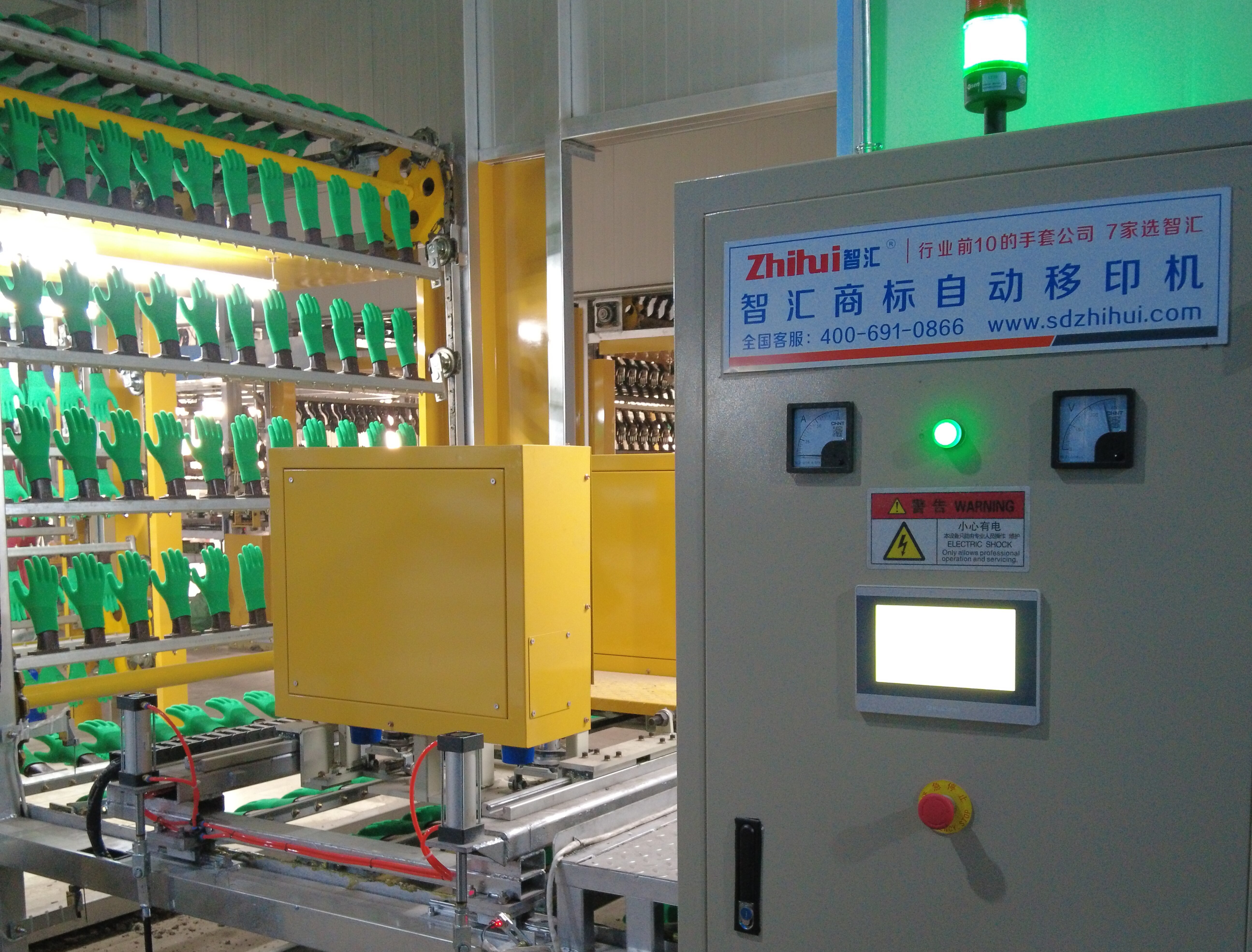

  • Online Automatic Printing: 4-head automatic positioning printing system for logo/text marking directly on the production line
  • Online Automatic Unloading: Fully automated glove stripping and collection system — no manual intervention required
  • Flexible Heating Options: Compatible with natural gas, electricity, coal, or biofuel; conduction oil heating medium for uniform temperature distribution

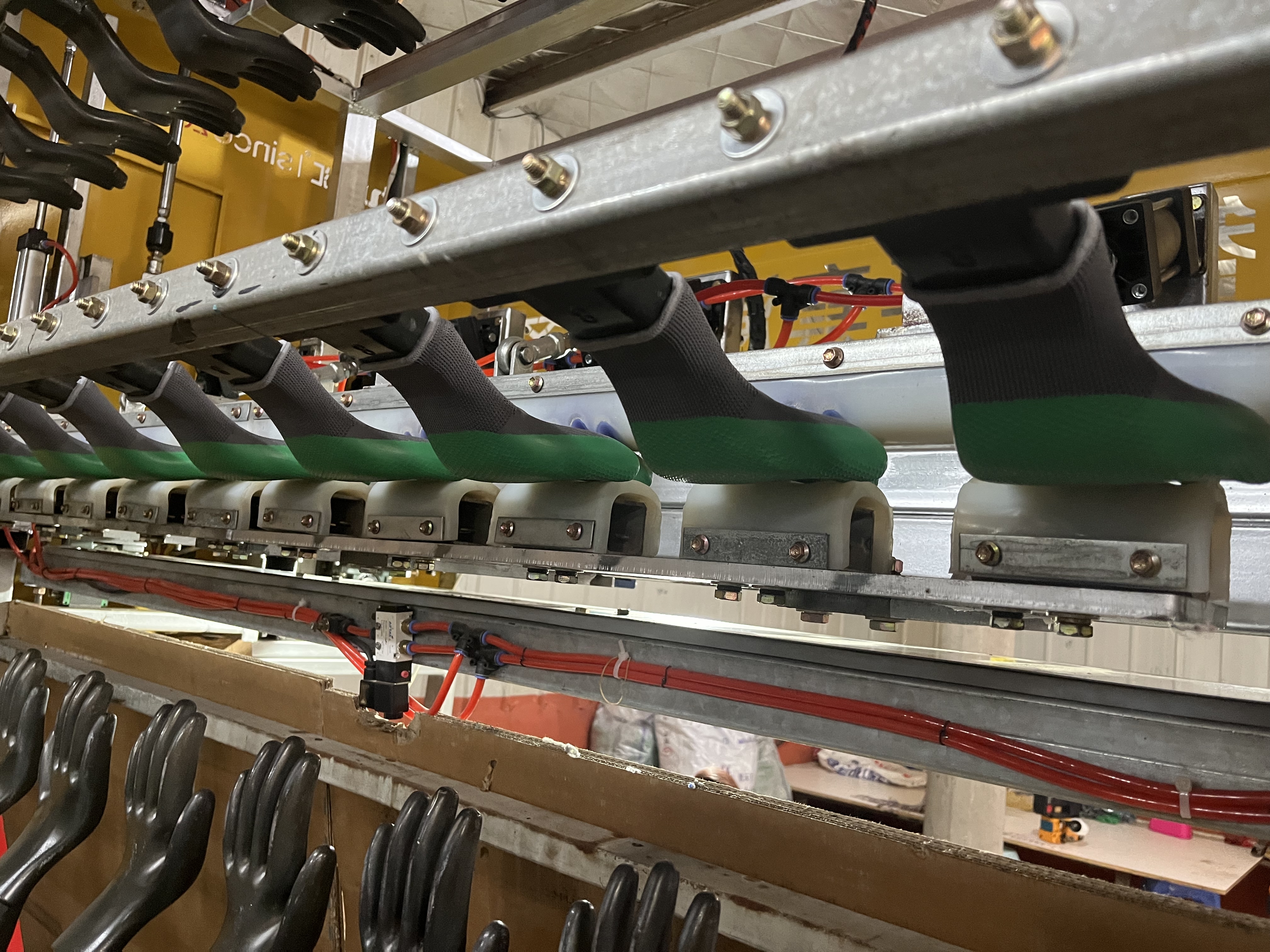

  • Precision Hand Moulds: Aluminum alloy moulds with 3-layer Teflon coating, suitable for palm, half, and full dipping
  • Energy-Efficient Insulation: Rock wool insulation panels (100mm & 75mm thickness) minimize heat loss and reduce energy consumption
  • Low Manpower Requirement: Only 4-5 operators per shift needed for the entire production line
Technical Specifications
Parameter Specification
Model ZHIHUI A.I. 34M
Line Dimensions (L*W*H) 34m * 2.75m * 3.8m
Production Capacity 33,000 - 36,000 pairs / 24h
Work Cycle 25 - 35 seconds
Operators 4 - 5 people / shift
Installed Power 20 kW
Air Pressure 0.5 - 0.8 MPa
Supply Voltage 3 * 380V + N / 50Hz
Control System DELTA PLC
Heating Medium Conduction Oil
Heating Options Natural Gas / Electricity / Coal / Biofuel
Dipping Tanks 4 sets (304 Stainless Steel)
Hand Moulds 1,992 pairs (Aluminum Alloy, 3-layer Teflon Coated)
Insulation Rock Wool, 100mm & 75mm
Printing Heads 4 (auto-positioning)
Optional Auxiliary Equipment
  • Formula Room: Mixing tanks, ball mills, dispersator, digital viscometer, water purifier, pneumatic diaphragm pump, sample glove oven etc.
  • Compressed Air System: 15kW screw compressor, 1CBM air storage tank, precision filters etc.
  • Thermal Oil Delivery System: Temperature control valves, oil pipelines, insulation materials etc.
  • Formula Tech Support: Experienced technicians available for onsite guidance and training
After-Sales Service

1-Year Warranty from installation & commissioning completion date

Within warranty: free spare parts and technician service; remote video support prioritized
