Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Industrial Glove Making Equipment CNC Controlled Gloves Production Machine
Specifications
Packaging Details :
Per request
Control System :
PLC Touch Screen Control
Dimension :
Customizable based on production scale
Place of Origin :
China
Certification :
CE/ISO/SGS
MOQ :
1 set
Daily Throughput :
20,000-30,000 pairs
Air Compressor :
Required, specifications vary
Brand Name :
Zhihui
Power Input :
3×380V + N / 50Hz
Machine Type :
Automatic/ Semi-Automatic
Automation Level :
High automation with minimal manual intervention
Model Number :
Customized
Drying System :
Hot air circulation drying
Material :
Stainless Steel/Galvanized Steel
Production Capacity :
5000-100,000 pairs per day
Compressed Air :
0.5-0.8 MPa
Safety Features :
Emergency stop, overload protection
Glove Types :
Latex, Nitrile, PU, PVC, Silicone
Delivery Time :
40-60 work days
Power Supply :
380V/50Hz or customizable
Line Dimensions :
65m × 2.5m × 4.7m (frame only, excl. blower height)
Weight :
Customized
Cycle Duration :
25-45 seconds
Supply Ability :
50 sets per year
Price :
Negotiable
Installed Power :
50 kW
Dipping Tanks :
Customized
Payment Terms :
TT
Warranty :
1 year
Description
Automatic Industrial Glove Making Equipment CNC Controlled

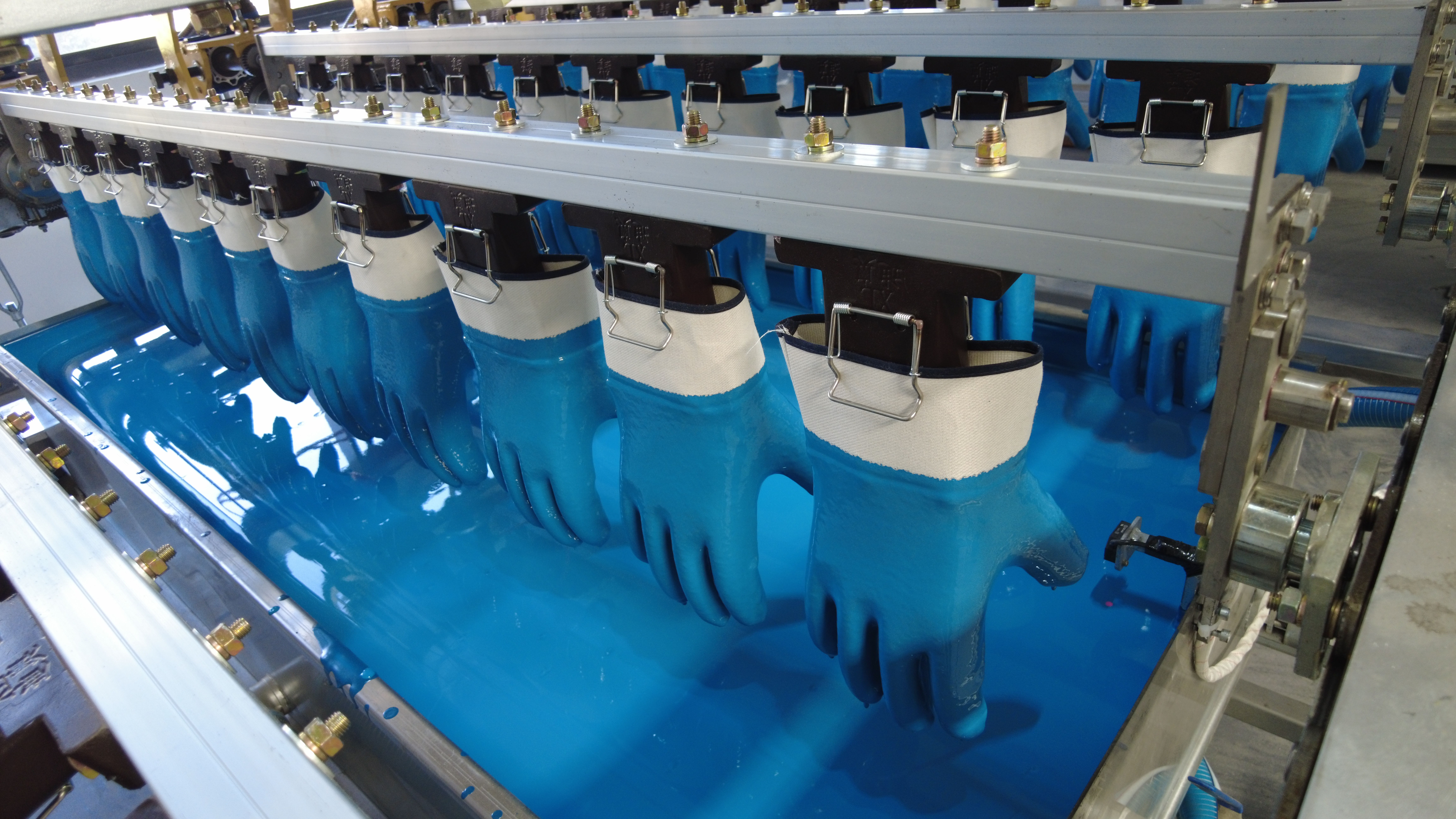

ZHIHUI A.I. Automatic Gloves Dipping Machine is a fully integrated production line designed for the manufacturing of nitrile/latex/PU/PVC/Sandy/Micro Foam coated gloves. Equipped with DELTA PLC automation, 304 stainless steel dipping tanks, auto-feeding with level sensors, and heavy-duty driving chains, this system delivers precise loading, dipping, drying, stripping and packing with minimal operator intervention.
Technical Specifications
Parameter Value
Line Dimensions (L*W*H) 65m * 2.5m * 4.7m (frame only, excl. blower height)
Daily Throughput 20,000-30,000 pairs
Cycle Duration 25-45 seconds
Installed Power 50 kW
Power Input 3*380V + N / 50Hz
Compressed Air Supply 0.5-0.8 MPa
Control Architecture Delta PLC
Heating Energy Natural Gas
Heating Medium Thermal oil (320#) + Blower hot air
Crew Required 3-4 operators per shift
Seven-Stage Dipping Process
Stage Tank Function
1 Coagulant-1 Primary coagulant
2 Compound Dip-1 First-layer latex/NBR coating
3 Foam Foam-layer application
4 Crinkle Crinkle texture formation
5 Coagulant-2 Secondary coagulant
6 Compound Dip-2 Second-layer coating
7 Sandy Sandy/grip finish
Core Differentiators
  • 7-Tank Versatility - Produce NBR, latex, foam, crinkle, and sandy gloves on one line
  • Dual Heating System - Thermal oil + forced hot air for precise temperature profiling
  • Universal Mould Compatibility - Palm, half, and full dip from the same mould set
  • PLC Control - Automation with temperature regulation
  • End-to-End Formula Room - From raw material milling to viscosity measurement, fully equipped pipelines with DN65 temperature control valves (10 units), cast steel gate valves, elbows, flanges, and insulation materials
After-Sales & Technical Support
Phase Coverage
Warranty 12 months from commissioning
Remote Diagnostics Complimentary video-assisted troubleshooting
On-Site (Warranty Period) Spare parts + labor: ZHIHUI covers; travel & accommodation: Buyer covers
On-Site (Post-Warranty) All costs (parts, labor, travel, accommodation): Buyer covers
Installation Team 2 technicians (mechanical + electrical), 30-40 working days
Formula Support Optional expert dispatch
