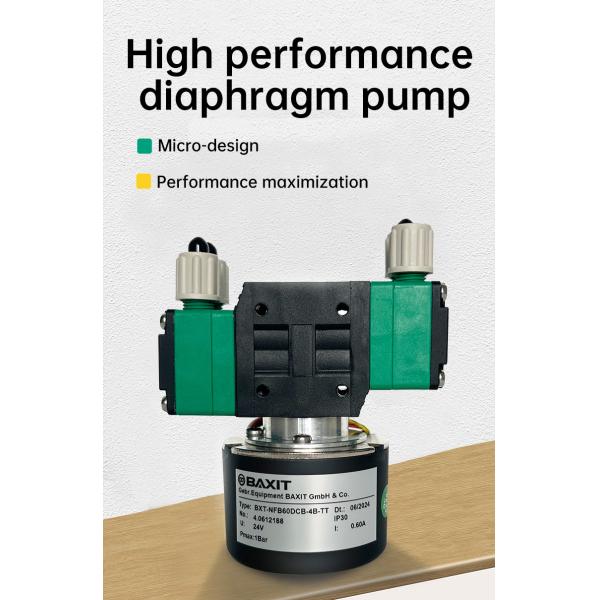

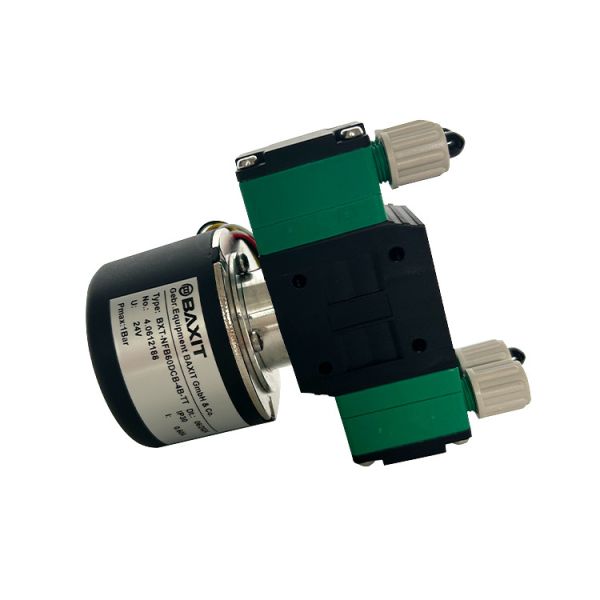

Small high pressure electric diaphragm pump agricultural 24v DC pump
Small high pressure electric diaphragm pump agricultural 24v DC pump
Specifications
Brand Name :
BAXIT
Model Number :
BXT-NFB60DCB-4B-TT
Place of Origin :
CHINA
MOQ :
1unit
Price :
USD158/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
99999units
Delivery Time :
1-3working days
Packaging Details :
Carton
Model :
BXT-NFB60DCB-4B-TT
voltage/Power :
12Vor24V/10W
Electrical machinery life :
20000H
outlet pressure :
1bar
Under pressure :
≥-0.06Mpa
positive pressure :
≥0.14Mpa

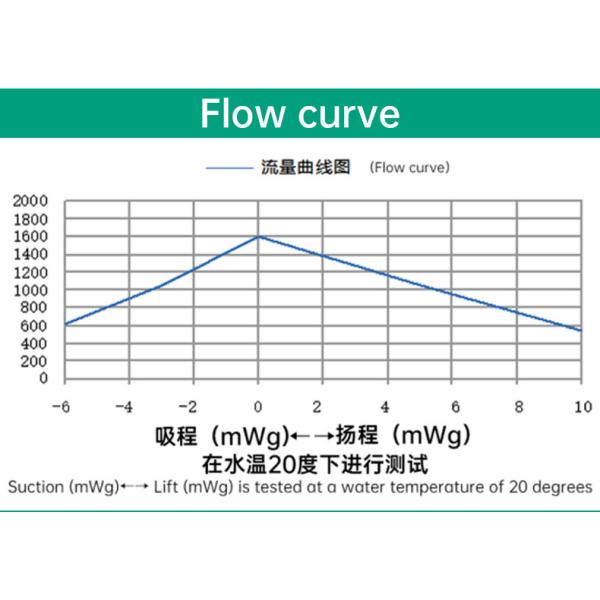

Gas flowrate :
2*700ml/min
weight :
422g
Noise :
60dB
Work Temperature :
-8~45℃
Delivery lift :
1bar
Pump head material :
PP
Description

Principle:

Micro diaphragm pump is based on the principle of positive displacement pump simple design, by the motor through the transmission mechanism, to promote the diaphragm reciprocating motion, control the valve plate closed and opened, so as to form the water absorption and discharge of liquid.

Small high pressure electric diaphragm pump agricultural 24v DC pumpSmall high pressure electric diaphragm pump agricultural 24v DC pumpSmall high pressure electric diaphragm pump agricultural 24v DC pumpSmall high pressure electric diaphragm pump agricultural 24v DC pumpSmall high pressure electric diaphragm pump agricultural 24v DC pump

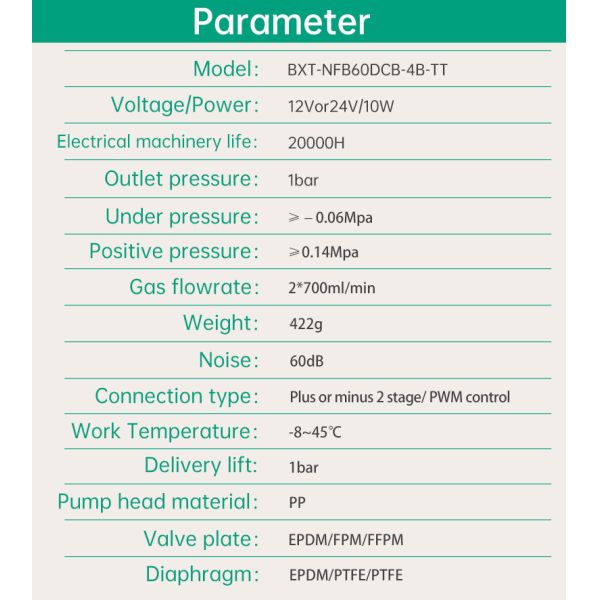

voltage/Power 12Vor24V/10W Electrical machinery life 20000H
outlet pressure 1bar Under pressure ≥-0.06Mpa
positive pressure ≥0.14Mpa Gas flowrate 2*700ml/min
weight 422g Noise 60dB
connection type Plus or minus 2stage/
PWM control		 Work Temperature -8~45℃
Delivery lift 1bar Pump head material PP
valve plate EPDM/FPM/FFPM Diaphragm EPDM/PTFE/PTFE

Small high pressure electric diaphragm pump agricultural 24v DC pump

Small high pressure electric diaphragm pump agricultural 24v DC pumpSmall high pressure electric diaphragm pump agricultural 24v DC pump

Typical applications:

Laboratory sampling, analysis and testing instruments; Medical equipment; Swimming pool equipment; Water quality analysis; Ceramic machine, UV machine, inkjet printing equipment, etc.
