BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
Specifications
MOQ :
1 UINT
Delivery Time :
3-5 work day
UItimate vacuum :
100mbar abs.
Payment Terms :
L/C,D/A,D/P,T/T
Pump head :
PPS
Flow rate at atm.pressure :
35L/min
Valves :
FPM
Model Number :
N035.3ANE
Max.operating pressure :
0.5bar
Weight :
2kg
Frequency :
50Hz
Power P1 :
100W
Imax :
0.6A
Price :
US $416.00 / Piece
Diaphragm :
EPDM
Certification :
CE
Place of Origin :
China
Voltage :
230V
Supply Ability :
100/unit/day
Name :
Vacuum Pump
Permissible media temperature :
+5~+60℃
Brand Name :
BAXIT
Permissible ambient temperature :
+5~+60℃
Packaging Details :
Carton packaging
Description

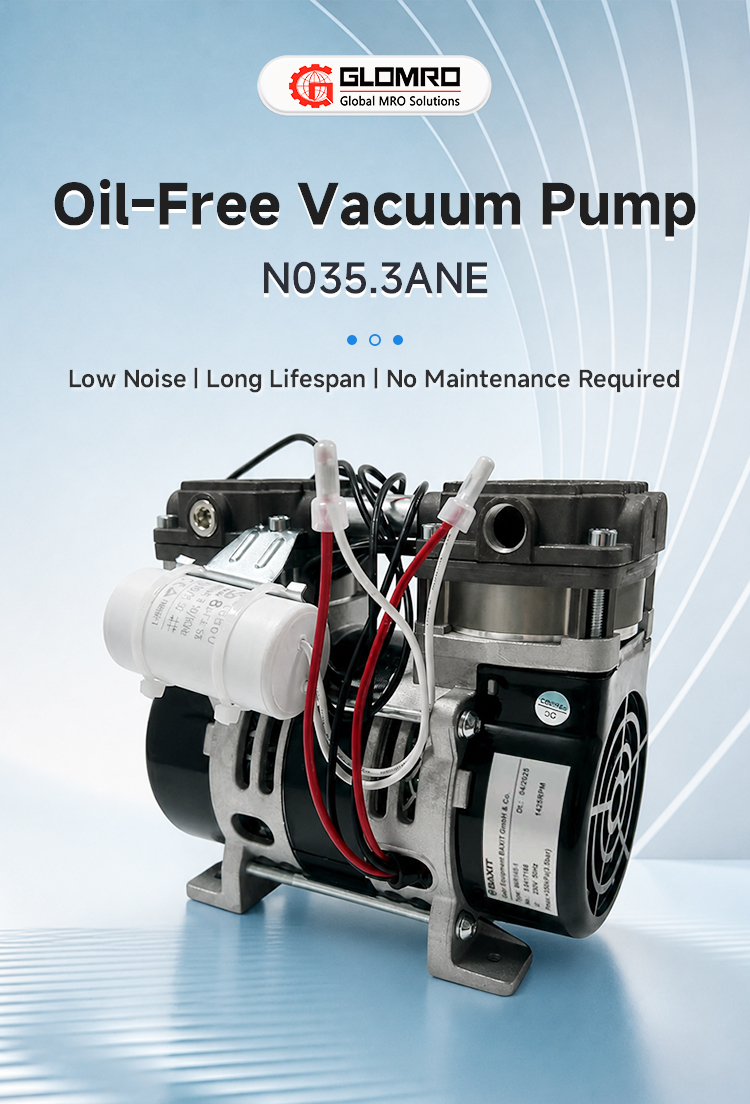

BAXIT PN035.3ANE Vacuum Pump


Product Information:

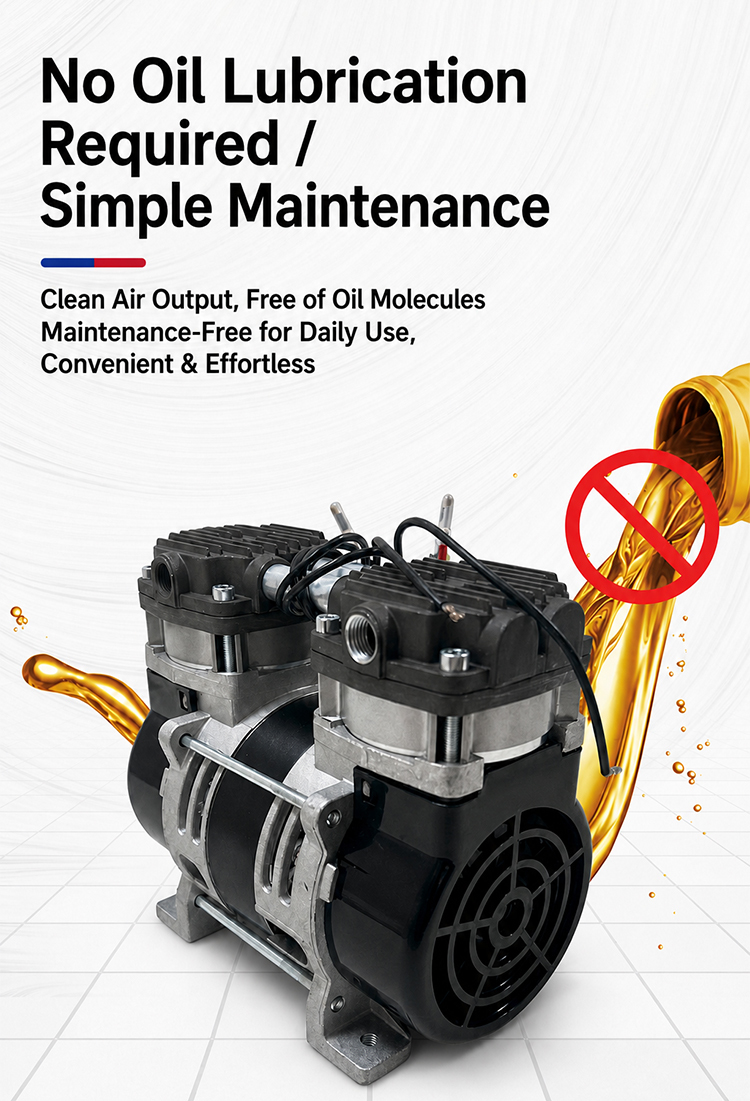

BAXIT N035.3ANE oil-free diaphragm vacuum pump is a compact dry vacuum pump designed for gas sampling and analytical instruments. It adopts oil-free diaphragm structure, no oil contamination to the conveyed gas, maintenance-free.Max flow rate:35L/min, ultimate vacuum:13mbar absolute. Pump head made of PPS material, equipped with pure copper AC motor, low noise & low vibration, supports continuous long-time running.Suitable for laboratory gas extraction, environmental monitoring, gas analysis, instrument matching.


Technical Parameters:

Name Vacuum Pump
Model N035.3ANE
Pump head PPS
Diaphragm EPDM
Valves FPM
Flow rate at atm.pressure 35L/min
UItimate vacuum 100mbar abs.
Max.operating pressure 0.5bar
Permissible ambient temperature +5~+60℃
Permissible media temperature +5~+60℃
Voltage 230V
Protection class motor IP00
Frequency 50Hz
Power 100W
Imax 0.6A
Weight 2kg


Product pictures:

BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction

BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction

BAXIT N035.3ANE Micro Diaphragm Vacuum Pump 230V AC, For Analytical Instrument & Industrial Gas Extraction
