Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door
Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door
Specifications
Brand Name :
Glawall
Model Number :
100mm ultrahigh style
Certification :
SGS, ISO 9001,UL, CE
Place of Origin :
China
MOQ :
10 square meters
Price :
US$80.00 10 - 99 square meters
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 square maters per month
Delivery Time :
2-3 weeks
Packaging Details :
wooden package
Material :
Aluminum frame+glass panel
Transparency :
Clear
Customizable :
size, accessories
Competitive price :
yes
Panel Thickness :
60mm, 100mm
glass type :
strong tempered glass
Frame Material :
Aluminum
Advantage :
Competitive price, good service, high professional, quality guarantee
Description

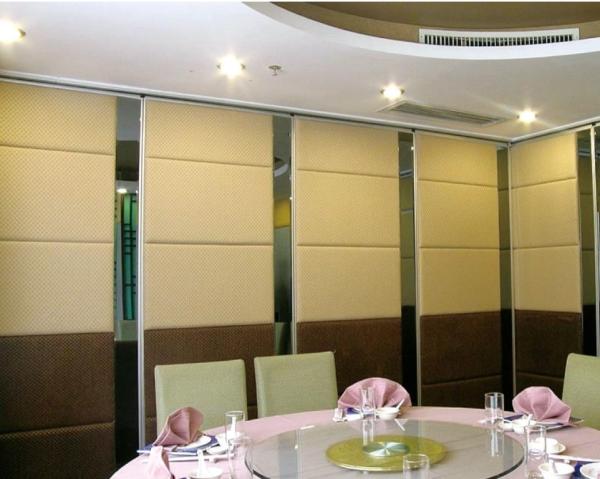

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door


How to Install a Ceiling-Mounted Movable Partition Wall
Installing a ceiling-mounted movable partition requires precise alignment, proper structural support, and careful assembly to ensure smooth operation. Below is a step-by-step guide for professional installation.


1. Pre-Installation Preparation ✔ Structural Assessment Confirm the ceiling can support the partition’s weight (consult an engineer if needed).
Check for obstructions (ducts, beams, lighting) that may interfere with the track.
Ensure the floor is level (critical for proper alignment).
✔ Tools & Materials Needed Tools Materials
Laser level Ceiling track system
Drill & anchors Partition panels
Measuring tape Trolleys/carriers
Lifting equipment Acoustic seals
Screwdrivers & wrenches Motorized drive (if automated)


Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door


2. Step-by-Step Installation Process


Step 1: Mark the Track Position Use a laser level to mark a straight guideline where the track will be installed.
Measure panel widths to ensure proper alignment.
Step 2: Install the Ceiling Track For concrete ceilings: Use heavy-duty anchors (wedge or sleeve anchors).
For steel structures: Bolt directly into steel beams or use unistrut channels.
For suspended ceilings: Reinforce with backing bars or a secondary support frame.
Step 3: Mount the Trolleys/Carriers Attach rolling trolleys to the track at designated intervals (usually every 1-1.5m).
Ensure they move smoothly before attaching panels.
Step 4: Lift & Hang the Partition Panels Use a panel lift or suction handles to safely position panels.
Secure panels to the trolleys using hanger brackets.
Check for plumb alignment (panels should hang straight without tilting).
Step 5: Install Bottom Guides (If Needed) Some systems use floor guides (not full tracks) to prevent swaying.
Ensure guides allow smooth movement without friction.
Step 6: Add Seals & Finishing Install acoustic seals (top, sides, and bottom) for soundproofing.
Cover track edges with trim pieces for a clean look.
Step 7: Test & Adjust Manually slide panels to check for smooth movement.
Adjust trolley tension if panels drag or wobble.
For motorized systems, test remote controls & sensors.


Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door


3. Key Considerations for Ceiling-Mounted Systems
✔ Weight Support Requirements


Partition Type Approx. Weight per m²
Glass partitions 25-40 kg
Solid acoustic panels 30-50 kg
Double-glazed glass 50-80 kg


➔ Ceiling must handle 2-3x the partition’s total weight for safety.

✔ Movement Systems Comparison


Type Best For Pro Cons
Manual push-slide Light partitions, small spaces Low cost, simple Harder to move heavy panels
Motorized Heavy/extra-high walls Smooth, automated Higher cost, needs power
Magnetic levitation Ultra-smooth movement Silent, minimal friction Expensive, rare


✔ Common Mistakes to Avoid
Uneven track installation → Causes jamming
Insufficient ceiling support → Risk of collapse
Poor panel alignment → Gaps in soundproofing
Skipping test runs → Operational failures


Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door


4. Maintenance Tips
Lubricate tracks annually with silicone spray.

Check hanger bolts for loosening over time.

Clean seals to maintain acoustic performance.


Conclusion
Ceiling-mounted movable partitions offer a clean, floor-track-free solution for modern spaces. Proper installation ensures smooth operation, durability, and sound control.

Need recommendations for track systems or motorized drives? Let me know your project specs!
