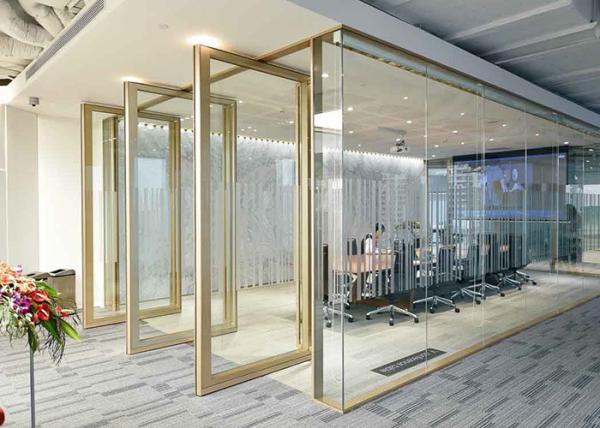

Smart Glass Partition Wall Office Controller Dimming Glaas Pivot Door Smart Office Door
Smart Glass Partition Wall Office Controller Dimming Glaas Pivot Door Smart Office Door
Specifications
Brand Name :
Glawall
Model Number :
108mm partition wall with smart glass
Certification :
SGS, ISO 9001,UL, CE
Place of Origin :
China
MOQ :
10 square meters
Price :
US$80.00 10 - 99 square meters
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 square maters per month
Delivery Time :
2-3 weeks
Packaging Details :
wooden package
Material :
Aluminum frame+glass panel
Transparency :
Clear
Customizable :
size, accessories
Competitive price :
yes
Glass Thickness :
10mm, 12mm
glass type :
strong tempered glass
Frame Material :
Aluminum
Advantage :
Competitive price, good service, high professional, quality guarantee
Description

Smart Glass Partition Wall Office Controller Dimming Glaas Pivot Door Smart Office Door


Dimming glass can be used in the following fields:


Architecture: - Installed in conference rooms to facilitate privacy needs during meetings and transparent state switching during exhibitions.
- Bathroom doors and windows, protecting privacy without affecting lighting.
- Living room partitions, increasing the fun and flexibility of space.
Hotel: - Windows or partitions in guest rooms to meet the different needs of guests.
- Banquet halls and other places can switch states according to the event scene.
Medical: - Partitions in examination rooms or wards to provide privacy protection.
Commercial display: - Glass walls in exhibition halls, convenient for displaying and hiding exhibits.
Financial: - Bank counters, etc., can adjust transparency while ensuring safety.



Smart Glass Partition Wall Office Controller Dimming Glaas Pivot Door Smart Office Door


How Smart Dimming Glass Works: The Science Behind Instant Privacy
Glawall's PDLC (Polymer Dispersed Liquid Crystal) dimming glass operates through advanced electro-optical technology, enabling seamless transitions between transparency and opacity. Here's a breakdown of its engineering:


1. Core Structure Layer Function Outer Glass Panels 2x tempered glass sheets (5-12mm thickness) for durability/safety
PDLC Film Liquid crystal droplets suspended in polymer matrix (50-200μm thickness)
Conductive Coating Transparent ITO (Indium Tin Oxide) electrodes on both sides
Interlayer PVB or EVA laminate for impact resistance
2. Operating Principle A. Power-OFF State (Opaque/Frosted) Liquid crystals randomly scatter light (like shattered glass)
Light transmission: <5% (privacy mode)
Applications: Confidential meetings, medical exams
B. Power-ON State (Transparent) Electric field aligns crystals parallel to light path
Light transmission: >80% (crystal-clear view)
Response time: 0.5 seconds (industry fastest)


Smart Glass Partition Wall Office Controller Dimming Glaas Pivot Door Smart Office Door


3. Technical Specifications Parameter Performance
Voltage 48-110V AC (low-energy)
Power Consumption 5W/m² (similar to LED lighting)
Switching Cycles 100,000+ (10+ years at 30 cycles/day)
Temperature Range -30°C to +80°C operational
UV Resistance Blocks 99% UV rays
4. Control Systems
 Wall Switches (Standard)
Mobile App (iOS/Android via Bluetooth/WiFi)
Voice Control (Alexa/Google Home integration)
Automation (Triggers via: Room schedules/Light sensors)


Smart Glass Partition Wall Office Controller Dimming Glaas Pivot Door Smart Office Door


5. Unique Advantages vs. Alternatives
Feature PDLC Dimming Glass Traditional Blinds
Space Saving Zero footprint Bulky mechanisms
Hygiene Non-porous surface Dust-trapping slats
Maintenance None required Regular cleaning
Aesthetics Sleek, modern Visual clutter
"Where physics meets design—transforming spaces at the speed of light."
