A silent cabin is a closed space designed to isolate noise. It has applications in many fields, such as music recording studios, hospitals, computer rooms, etc.
First of all, the size of the silent cabin should be determined based on the level of noise that needs to be isolated and the size of the space. The larger the size of the silent cabin, the more people it can accommodate, but the manufacturing cost will be higher. The height of our silent cabin is 2.3 meters.
Comfort and safety should be considered when choosing the size of a quiet cabin. There should be enough space inside the quiet cabin to accommodate the required equipment and personnel and ensure adequate ventilation and air circulation. In addition, quiet cabins need to be equipped with appropriate lighting and fire-fighting equipment to ensure comfort and safety.
The silent cabin will be prefabricated in the factory and then disassembled and transported to the destination for assembly. Therefore, the size of the silent cabin meets the requirements for transportation and installation to ensure a smooth installation process.


| Ventilation | Stay comfortable while you work with 2 x ventilation fans and a total output of 56 litres per second |
| LED light | Dimmable overhead LED light creates a soft, warm, and calming working environment |
| External walls | 51mm walls are constructed from a polyester acoustic wall lining, plywood, acoustic foam, and powder-coated sheet steel that create a whisper-quiet workspace without compromising on design |
| Workstation | Whether you’re taking a phone call or working solo, there’s plenty of space for all your devices |
| Power outlets | Keep your devices charged while you work using the three-pin power plug outlet, as well as USB A and C ports, conveniently located just above the desk |
| Stainless-steel handle | A strong stainless-steel handle is designed to withstand high-traffic office environments |
| Ergonomic stool | Sit comfortably while you work with an ergonomic stool in either black or white |
| Acoustic interior walls | The interior wall lining is made from acoustic felt for maximum sound reduction and cosy comfort |
| Power | Pods are powered by a standard 230V three-pin plug that plugs straight into a wall socket – no fixed wiring required |
| Lockable wheels | Pods are mounted on cast iron wheels with adjustable heights so you can move it wherever and whenever you want |
| Safety glass | 5mm+5mm laminated glass enhances safety and sound insulation, add an option to frost the windows for added privacy |

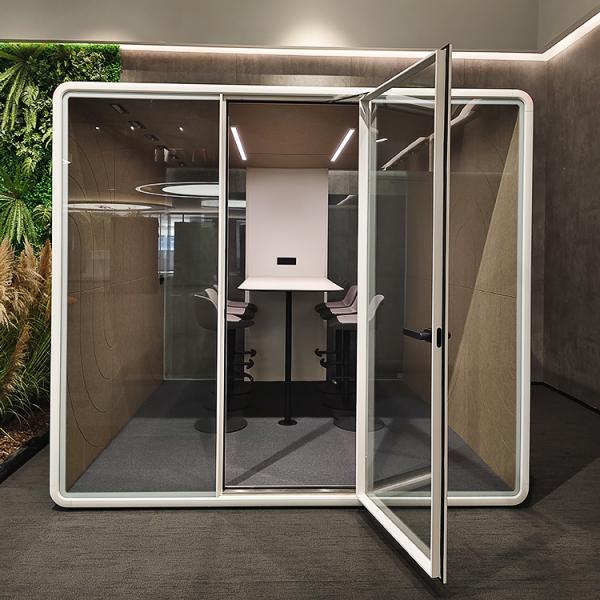

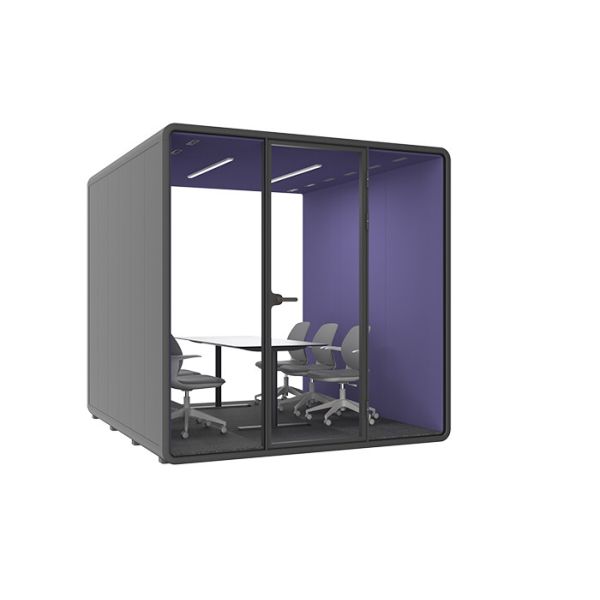

| 1. Type | 6 seaters meeting pods |
| 2. Exterior size | W2600*D2487*H2326mm(2.99)㎡. |
| 3. Interior size | W2462*D2447*H2146mm. |
| 4. Package size | 2320*900*1265mm * 1pcs+2600x760x1265mm*1pcs, 5.13㎥. |
| 5. Packed weight | 1100 kgs. |
| 6. Materials | steel, aviation aluminum, fabric wrapped 12mm fiber acoustic board as interior, 6+6mm laminated acoustic glass, steel panel as side board. Interior fabric fiber panel use magnetic to connect, not any glue needed. |
| 7. STC | 30db(±5db). |
| 8. Hidden pulley system, can be adjusted to be removed(Optional). 10. LED4000k light source, 220V & 12V-USB power source + USB Type C. Customized Australia standard socket | |

There are mainly the following reasons for using a silent cabin:
Creating a quiet environment: creating a quiet space in a noisy environment to meet people's needs for quiet and focused work, study or rest.
