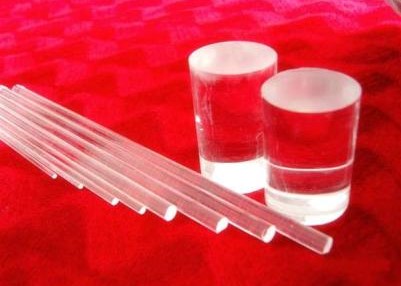

Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-GP
Certification :
RoHS, ISO9001, CE, TUV
Place of Origin :
CHINA
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300-500pcs/day
Delivery Time :
7 days
Packaging Details :
carton box and wooden box
material :
borosilicate glass
Size :
dia.20mm, length:250mm
Transmittance :
95%
Shape :
Rod shape
HS Code :
9001909090
Description

K9 Optical Sapphire Light Guide Rods Dia. 12.7mm* L169.6mm Customized Fully Polished


Specifications:

  • Materials:Optical Glass or Plastic.
  • Diameter range: 1-400mm
  • Dimension tolerance: +/0.05mm,+/-0.1mm
  • Thickness tolerance: +/-0.05mm,+/-0.1mm
  • Parallelism: < 1arcsec(can change for different types and as rquired)
  • Surface quality: 10/5(can change for different types and as required)
  • Coating: Uncoated or Coated(as requried)
  • Items Description
    Rod Lens Material: Sapphire,random orientation
    Diameter: 12.7+0.0/-0.1mm
    Length: 169.6+/-0.2mm
    ROC1: infinity
    ROC2: infinity
    Flatness: barrel sides:N/A
    Front/back surfaces:N/A
    Surface quality: barrel sides:60-40
    Front/back surfaces:fine ground
    Cylindricity: <0.15mm
    Clear aperture: >90%
    Chamfer: protected
    Coating: uncoated
    Standard: MIL-PRF-13830B

Items Description
Light Guide Material: Borosilicate
Diameter: 30.00+/-0.14mm
Length: 35+/-0.1mm
ROC1: infinity
ROC2 infinity
Surface flatness: N/A
Surface quality: 20-10
Parallelism: <3arcmin
Clear Aperture: >90%
Chamfer: protected
Coating: uncoated
Standard: MIL-PRF-13830B



Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9

Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9
Light Guide Sapphire Optical Rod Dia. 12.7mm* L169.6mm Fully Polished K9



FAQ:
1. Could you send free samples?
Your samples fee will be returned when you plack bulk order.
2. What's the delivery time?
7 days, it is up to your quantity and soecification and our stock. If in stocks, once you make the payment, your products will be sent within 2 days.
3. Can you OEM or ODM?
Yes, we accept all OEM and ODM.
