50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
Specifications
Raw Material :
Silica sand
Service :
Engineers available to service machinery overseas
Supervisor :
Available
Voltage :
380V, 50Hz
Color of product :
Customized
Melting Capacity :
50TPD
Energy :
Natural gas
Working Tank Depth :
300mm-400mm less than melting tank
Warranty :
One year
Product :
Glass product
Brand Name :
JEFFER
Model Number :
Customized
Certification :
ISO9001, ISO90014, ISO45001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1 set per 5 month
Delivery Time :
150 days after received the down payment
Packaging Details :
Wooden case, steel frame
Application :
Glass industry
Material :
Mild Steel
Description
50TPD End Fired Furnace For Glass Production Line

Melting Capacity 50TPD, End Fired Furnace, For Glass Production Line

Brief Description

The end fired furnace is named by the longitudinal arrangement of the burner port and the U shape of flame combustion route. At present, the end fired furnace is more widely used in the glass industry.

Glass melting includes four key successive stages which are closely interrelated with one another. Poor performance in any stage will exert influence on subsequent steps and finally affect finished glass quality.

Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.

50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
Advantages
Advantage Description
Long Flame Extended flame combustion for efficient heating
High efficiency of heat utilization Optimized thermal performance and energy transfer
Low energy consumption Reduced operational energy requirements
Lower investment Cost-effective installation and setup
Small foot print Compact design requiring minimal space
Factors Influencing Melting Effects
Factor Description
Characteristic of raw materials Quality and properties of input materials
Chemical component Composition and chemical makeup of materials
Material feeding method Technique and process for introducing materials
Melting temperature Precise temperature control during melting process

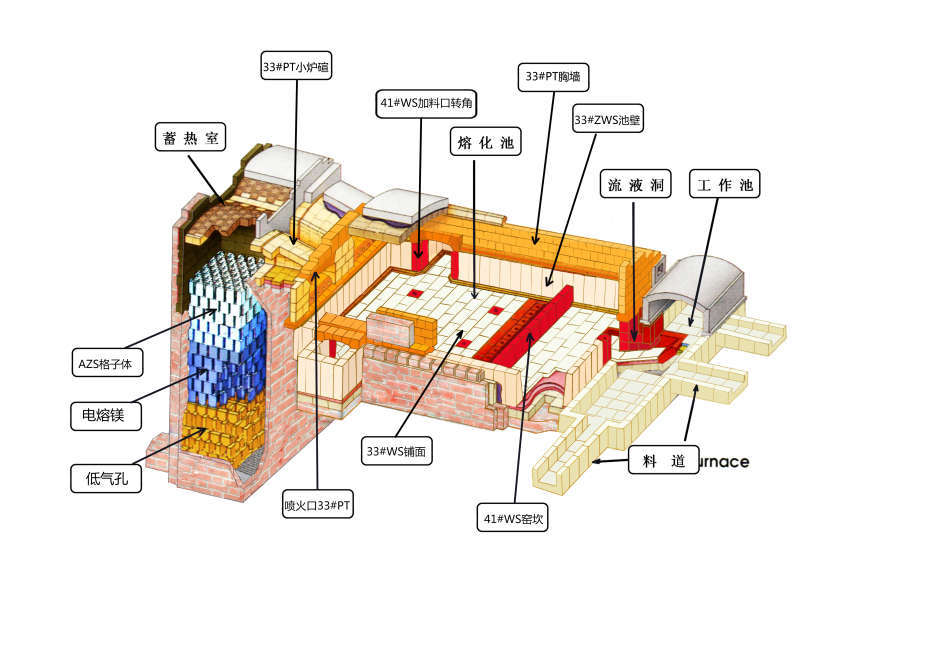

Main Sections of Furnace
Working Tank

Normally, the semidiameter of working tank is equal to the width of the melting tank, the depth of the working tank is less than 300mm-400mm of the melting tank.

Dog House

Normally, the temperature of the dog house is about 1100°C~1400°C. The batched materials will be pre-melted at this section.

Port

It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.

Flame Space

Flame space is a space which is combined with breast wall, crown, and front and back gable wall.

Throat

Throat is a core section of the furnace, it will affect the quality of glass and furnace campaign. The temperature of glass will reduce when flowing through the throat.

Regenerator

The regenerator can heat the combustion air by exhausted gas coming out from the furnace with the help of checker brick. It can not only utilize the waste heat of gas, but also it can heat the combustion air to a higher temperature, which is useful to increase the working temperature. The waste gas can exhaust and the combustion air can go into the access.

50TPD Natural Gas End Fired Furnace for Customized Glass Production Line
