10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
Specifications
Condition :
New
Application :
Glass industry
After-salses service :
Engineering overeas service available
Material :
Refractory materials
Consumption :
Energy saving
Kind of Fuel :
Natural gas
Warranty :
One year
Brand Name :
JEFFER
Model Number :
Customized
Certification :
ISO9001， ISO14001， ISO45001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1 set per 3 months
Delivery Time :
90 days after received the down payemnt
Packaging Details :
Wooden case, tray, steel frame, etc
Kind of glass :
Soda-lime
Capacity :
10 tpd
Color :
Flint
Description
10tpd Recuperative Furnace High Temperature Flint Glass Energy Saving
A recuperative furnace is an industrial furnace that utilizes a heat exchanger to preheat combustion air, improving energy efficiency and reducing fuel consumption.
Function and Design
A recuperative furnace operates by using a recuperator, which is a type of heat exchanger that extracts heat from the exhaust gases of the furnace. This heat is then used to preheat the incoming combustion air. The main components include:
  • Heat Exchanger. The recuperator typically consists of two concentric pipes; hot flue gases pass through the outer pipe while cold air flows through the inner pipe, allowing heat transfer without mixing the two streams.
  • Combustion System. The preheated air is then mixed with fuel in the burner, resulting in a more efficient combustion process that can reach higher temperatures.
Key Advantages
Item Description
1 Stable flame
2 No reversal
3 Small footprint
4 Lower investment
Furnace Structure

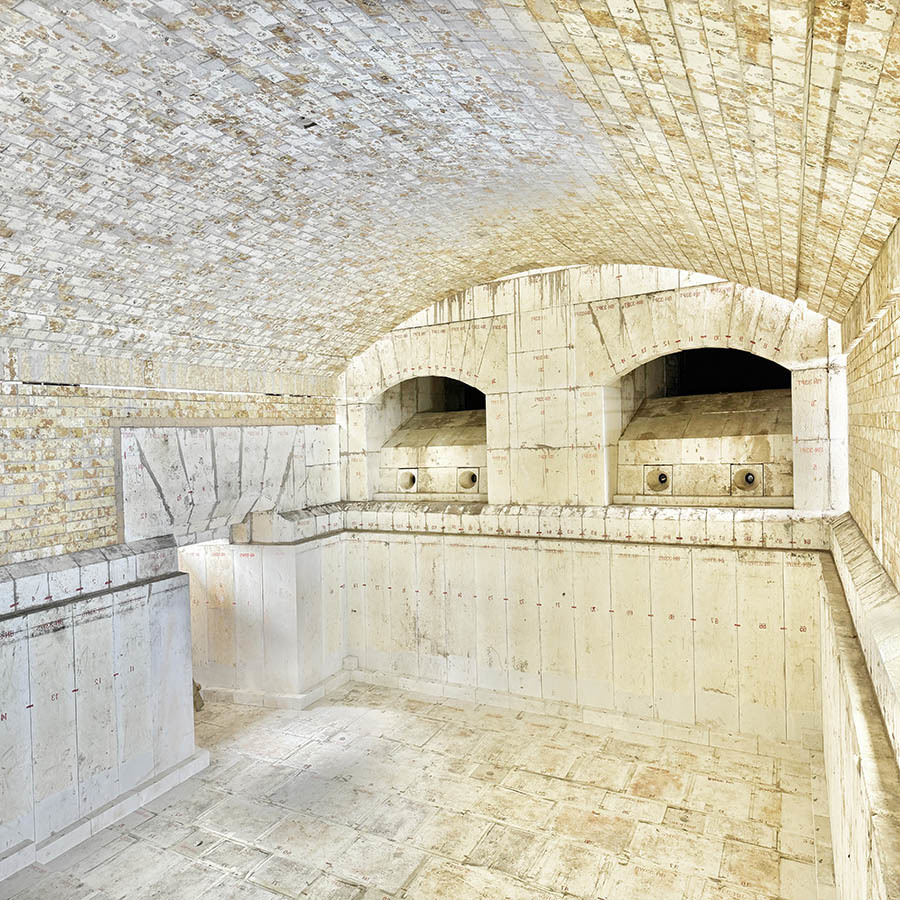

  • Melting section: This is the part which melts batched materials and clears and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feeds in preheated air to increase the flame efficiency.
  • Dog house: Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.
  • Air, gas access: The heated air and gas flow into the precombustion room for mixing via this access after they flow out of the recuperator.
  • Burner Port: The flame goes out from the burner port. The shape, size and length of burner port will have a big effect for the speed, thickness, width and direction of the flame.
  • Gas supply and waste gas exhaust: A gas supply and waste gas exhaust system is designed to ensure the continuous, regular and efficient operation of the furnace, which includes air and gas flue channel, middle flue channel, blower, main flue channel and chimney.
Furnace Melting Technology System
Reasonable melting technology is a system which could ensure normal daily production. It will have an important function for high production, high quality, low consumption and life span of furnace.
Furnace melting technology includes temperature, pressure, bubbling, glass liquid level and fuel system.
The temperature means the temperature of the melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Furnace pressure is the static pressure of the gas system, which is determined by pressure distribution curve.
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
Frequently Asked Questions
Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specializing in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q: Can you customize the products?
A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.
Q: Do you offer installation on site overseas?
A: Yes, we can provide our engineer to supervise the installation work on site or provide the whole installation team on site to finish the project.
Q: Confidential protection provide?
A: Strict drawing management system eliminates the risk of the leakage and protects your interests.
10 tpd Energy Saving Flint Glass Recuperative Furnace for High Temperature Melting
